Slide set DS 5334 Slide length 450mm stainless steel 1.4301
Manufacturer part no. 64904645
$297.38≈ 258.25 €
Price summary
Listed by MÄDLER at €258.25. Delivered to France, including shipping, VAT and any customs duty, it comes to about €327.90. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €258.25 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €54.65 |
| Total delivered | €327.90 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)

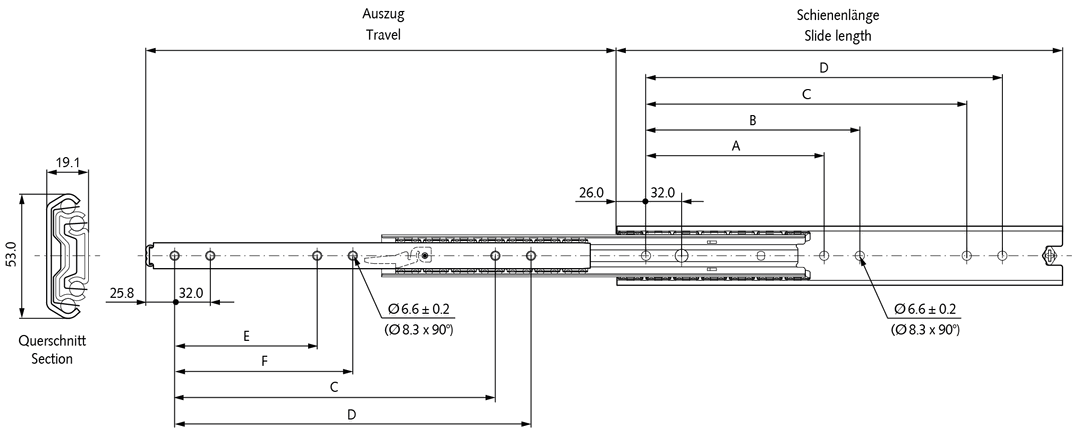

Other characteristics
| A | 192 mm |
| B | 224 mm |
| C | 352 mm |
| D | 384 mm |
| E | 160 mm |
| Extension 3 2 | 473 mm |
| F | 192 mm |
| Load value pair | 90 kg |
| Rail length | 450 mm |
| Weight pair | 2.56 kg |
Description

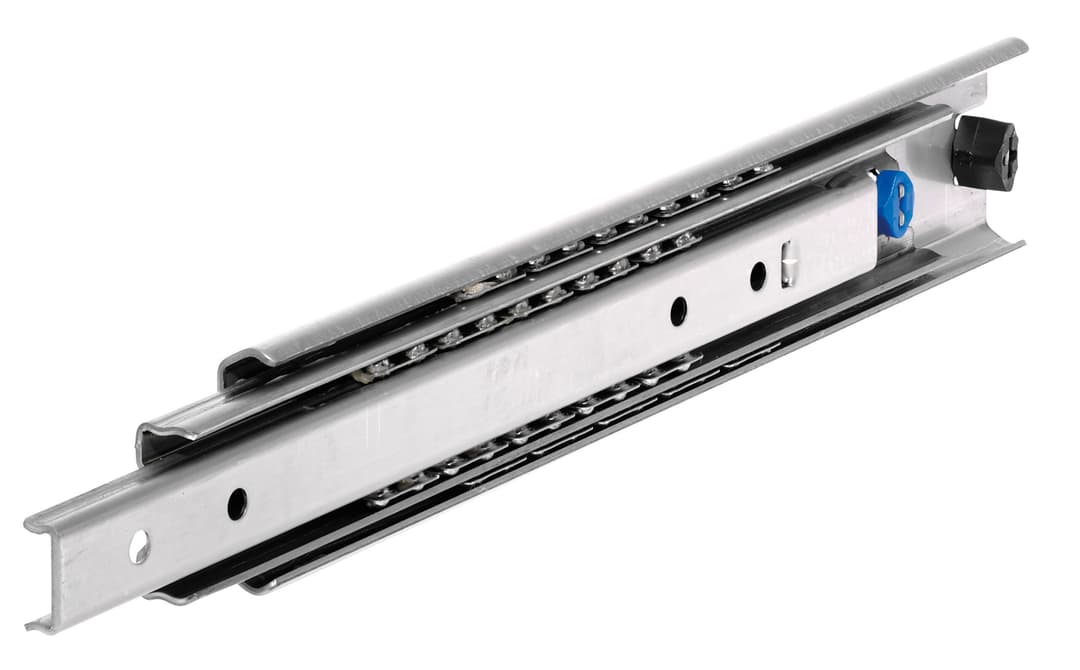

Material: Stainless steel 1.4301 (AISI 304). Telescopic ball bearing slides for applications in the industrial and electronics sector. Sold by pair (1 x product no. = 1 pair of slides). • Fast disconnection. • Optional bracket kits for various mounting options on request. • Service life 50,000 cycles. • Temperature range: -20°C to +70°C. Note: Recommended mount: M5 countersunk / 6mm countersunk Euro screw. Use all mounting positions to achieve the max. load rating. Attention: Vertical (side) mounting only.
