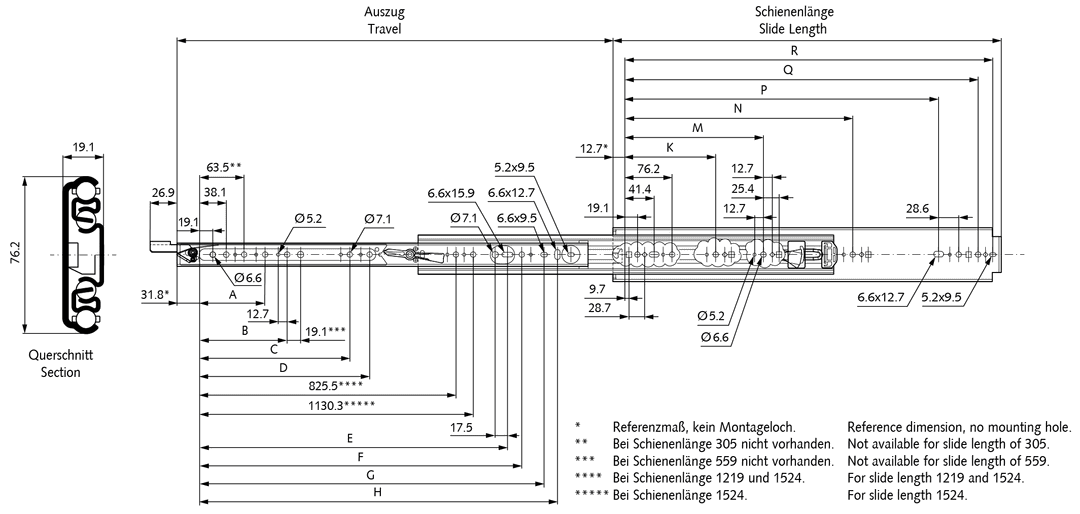

Slide rail DZ 9308 single rail left hand slide length 660mm zinc plated
Manufacturer part no. 64905226
$269.08≈ 233.68 €
Price summary
Listed by MÄDLER at €233.68. Delivered to France, including shipping, VAT and any customs duty, it comes to about €298.42. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €233.68 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €49.74 |
| Total delivered | €298.42 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 227 kg |
| Rail length | 660 mm |
| Slide width | 19.1 mm |
| Travel 3 2 | 660 mm |
| Weight pair | 3.2 kg |
| Extended hold | No |
| Extension type | Full extraction |
| Fast disconnect | No |
| Locking | Yes |
| Material | Steel |
| Optional mounting brackets | Yes |
| Retracted hold | No |
| Self closure | No |
| Surface | Zinc-plated (bright) |
| Typ | DZ 9308 Left |
Description
Material: Slide elements: Cold rolled steel, zinc plated. Ball retainers: Plastic. Balls: Hardened steel. Sold singly (1 x product no. = 1 single slide). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Single slides available (left or right). Lengths to 1.5 meters. Lock-in in closed position. Lock-out in open position. Front lever lock releaze. Only for vertical mounting. Optional clip-on bracket accessory kits type 634 available. Service life 10,000 cycles (to 180 kg up to 75,000 cycles). Temperature range: -20°C to +70°C. Note These slides are available separately. To lock both sides, you need a left slide 9308 and a right slide 9308. If you want to lock only one side, you can combinate it with a slide 9301-E. Recommended fastening: M5 / M6 screw. Screw head diameter max. 12.7 mm. Screw head height max. 4.8mm. Use all mounting positions to achieve the max. load ratings.
