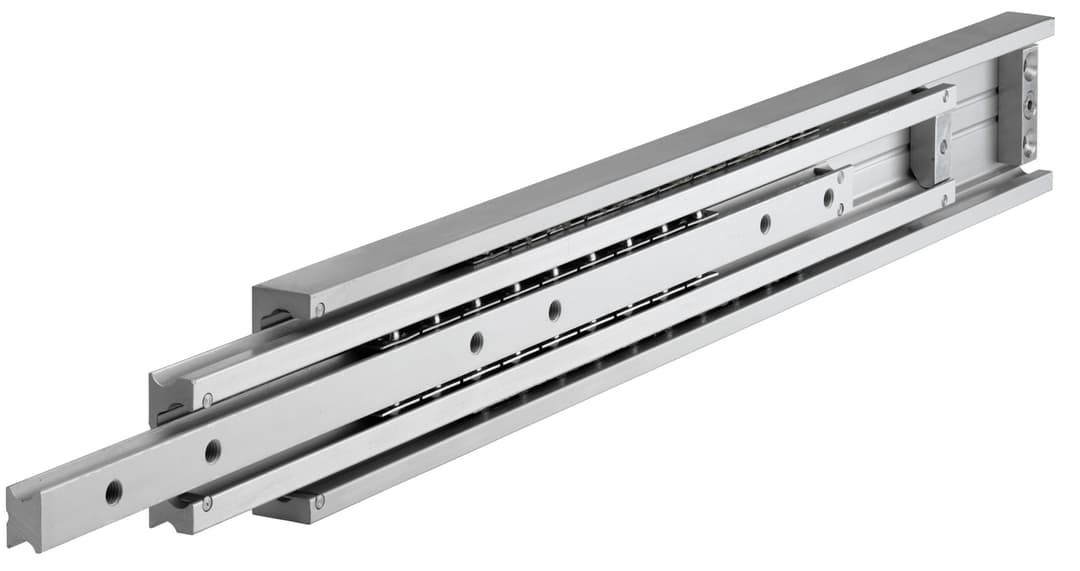

Slide set DA 4160 slide length 1000mm aluminium
Manufacturer part no. 64905600
$975.73≈ 844.50 €
Price summary
Listed by MÄDLER at €844.50. Delivered to France, including shipping, VAT and any customs duty, it comes to about €1031.40. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €844.50 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €171.90 |
| Total delivered | €1031.40 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 230 kg |
| Rail length | 1 000 mm |
| Slide width | 26.5 mm |
| Travel 3 2 | 1 000 mm |
| Weight pair | 8.62 kg |
| Extended hold | No |
| Extension type | Full extraction |
| Fast disconnect | No |
| Locking | No |
| Material | Aluminum |
| Optional mounting brackets | No |
| Retracted hold | No |
| Self closure | No |
| Surface | Blank |
| Typ | DA 4160 |
Description
Material: Slide elements: Aluminium, corrosion resistant. Ball retainers and balls: Stainless steel. Heavy-duty telescopic ball bearing slides for applications in the industrial sector. Very high load capacity up to 300 kg. Good corrosion resistantce. Only for vertical mounting. Service life 10,000 cycles. Temperature range: -20°C to +110°C.
