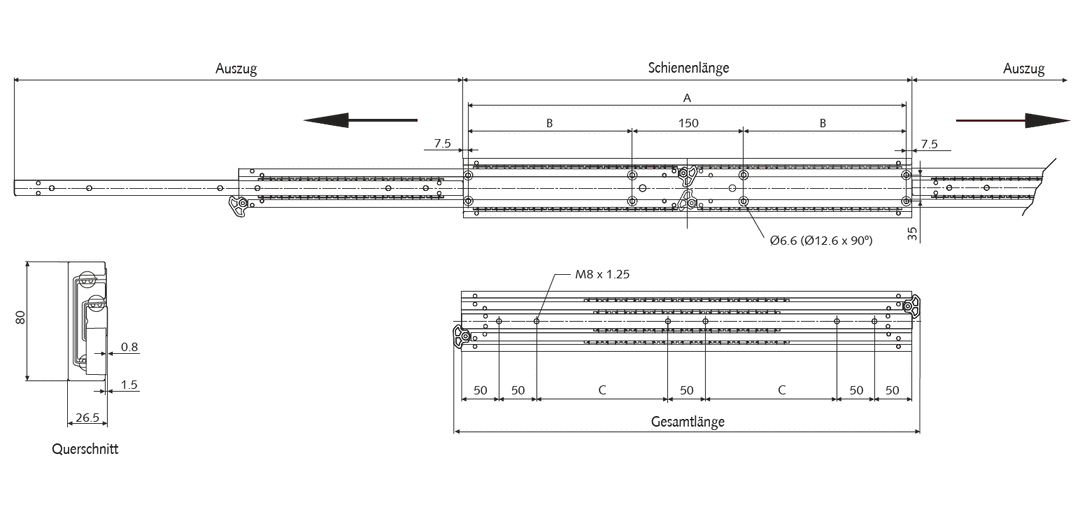

Slide set DA 4165 slide length 800mm aluminium
Manufacturer part no. 64905680
$877.82≈ 759.75 €
Price summary
Listed by MÄDLER at €759.75. Delivered to France, including shipping, VAT and any customs duty, it comes to about €929.70. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €759.75 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €154.95 |
| Total delivered | €929.70 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 245 kg |
| Rail length | 800 mm |
| Slide width | 26.5 mm |
| Total length | 822 mm |
| Travel 3 2 | 800 mm |
| Weight pair | 6.92 kg |
| Extended hold | No |
| Extension type | Full extraction in both directions |
| Fast disconnect | No |
| Locking | No |
| Material | Aluminum |
| Optional mounting brackets | No |
| Retracted hold | No |
| Self closure | No |
| Surface | Blank |
| Typ |
Description
Material: Slide elements: Aluminium, corrosion resistant. Ball retainers and balls: Stainless steel. Heavy-duty telescopic ball bearing slides for applications in the industrial sector. Forward and return slide. For applications, that require access from both sides of a sliding unit. Very high load capacity up to 270 kg. Good corrosion resistantce. Only for vertical mounting. Service life 10,000 cycles. Temperature range: -20°C to +70°C.
