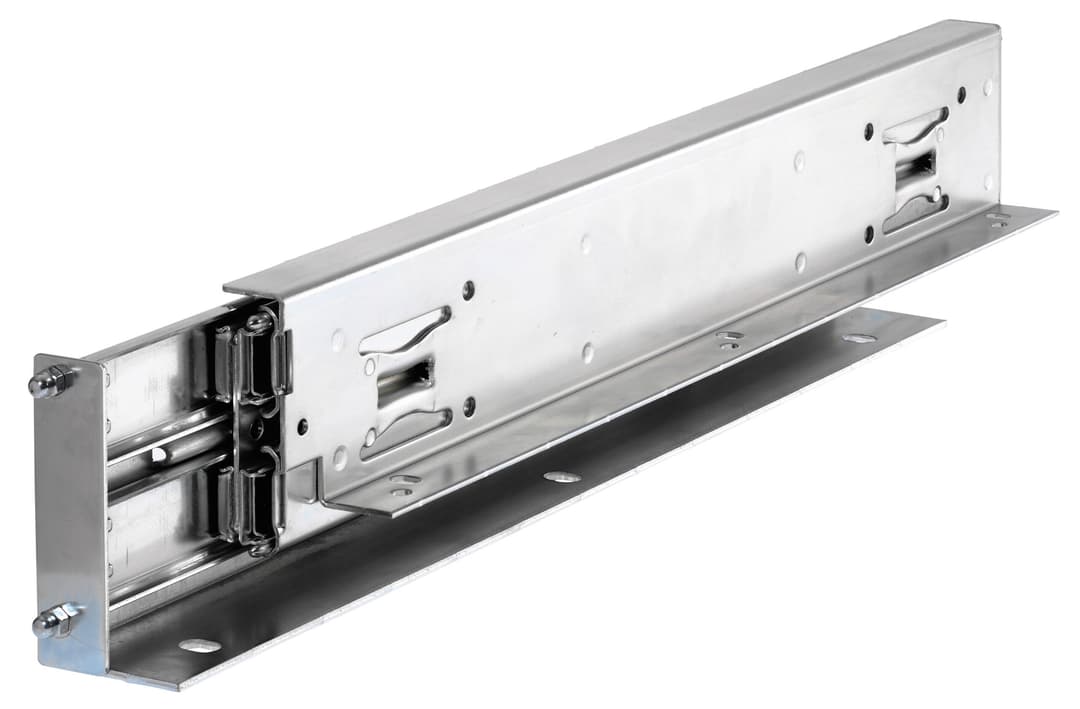

Slide set DZ 0522 slide length 600mm zinc plated
Manufacturer part no. 64905861
$770.50≈ 669.13 €
Price summary
Listed by MÄDLER at €669.13. Delivered to France, including shipping, VAT and any customs duty, it comes to about €820.96. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €669.13 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €136.83 |
| Total delivered | €820.96 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 180 kg |
| Rail length | 600 mm |
| Slide width | 26.5 mm |
| Travel 3 2 | 625 mm |
| Weight pair | 12.68 kg |
| Extended hold | No |
| Extension type | Over extraction |
| Fast disconnect | No |
| Locking | No |
| Material | Steel |
| Optional mounting brackets | No |
| Retracted hold | No |
| Self closure | No |
| Surface | Zinc-plated (bright) |
| Typ | DZ 0522 |
Description

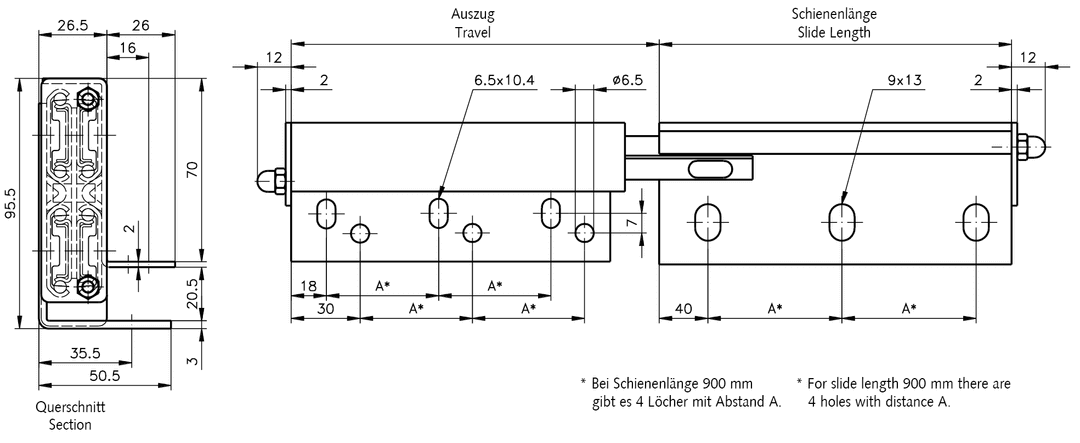

Material: Slide elements: Cold rolled steel, zinc plated. Ball retainers: Cold rolled steel, zinc plated. Balls: Hardened steel. Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Heavy-duty construction. Shock blocks offering protection against shock and vibration. Protective shroud prevents excessive contamination of the ball tracks. Mounting plates on inner and outer members. Service life 10,000 cycles (to 140 kg up to 40,000 cycles). Temperature range: -20°C to +110°C. Note Recommended fastening: M4 screws on the inner , extending member. M6 screws on the outer, fixed menber. Use all mounting positions to achieve the max. load rating. overall length = slide length + 24mm. The cabinet and drawer must be designed to minimise any deflection and torsion of the slide.
