MÄDLERMÄDLER· Mechanics & transmission

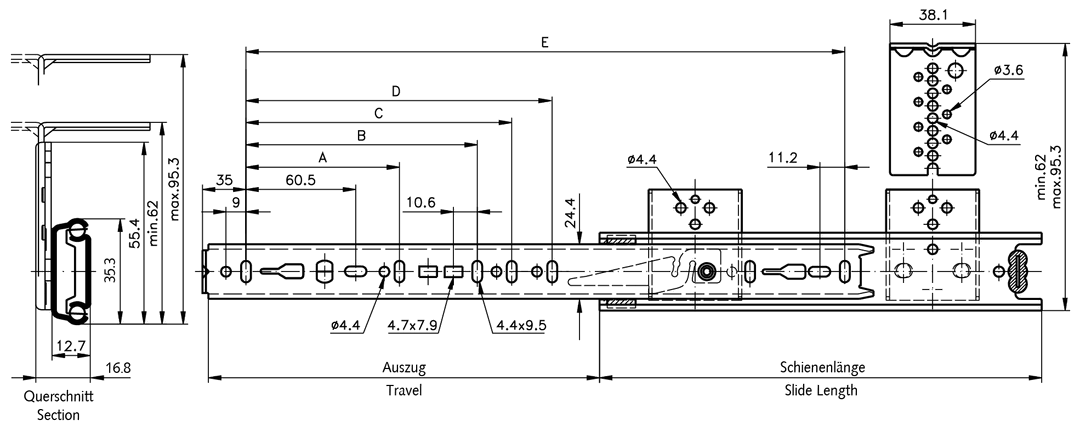

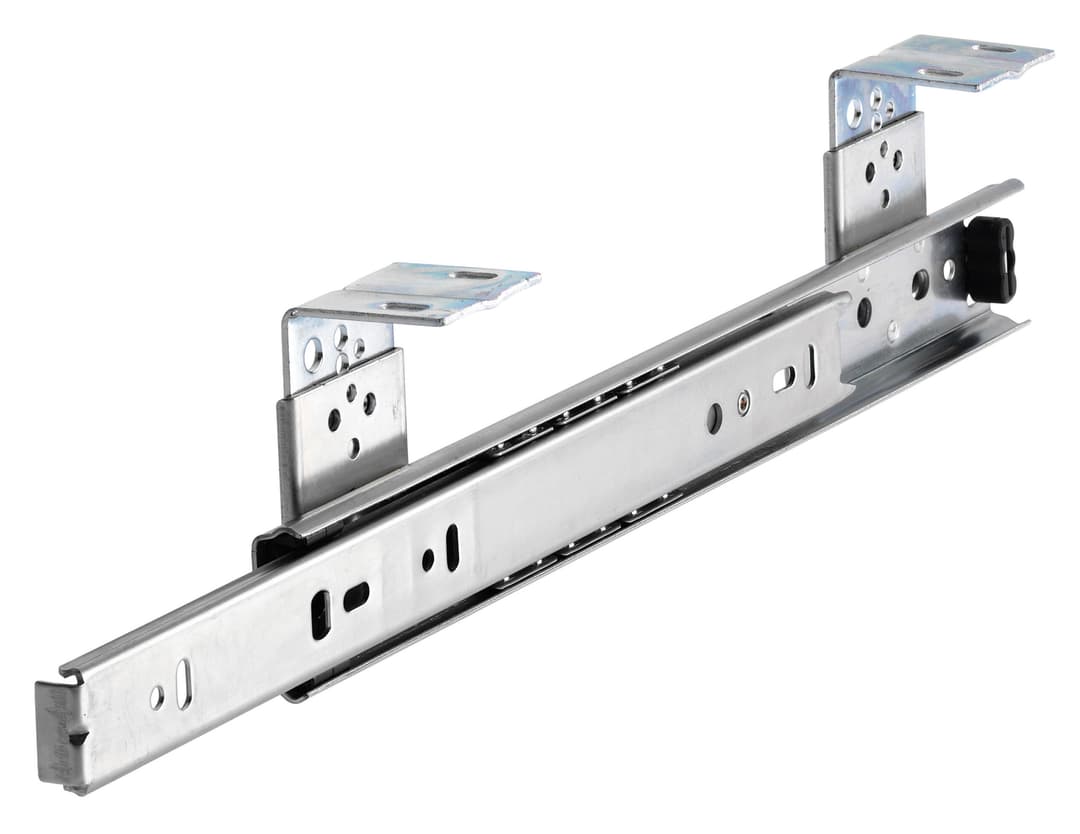

Slide set DZ 2109 slide length 450mm zinc plated
Manufacturer part no. 64906245
$68.98≈ 59.90 €
Price summary
Listed by MÄDLER at €59.90. Delivered to France, including shipping, VAT and any customs duty, it comes to about €89.88. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €59.90 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €14.98 |
| Total delivered | €89.88 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 30 kg |
| Rail length | 450 mm |
| Slide width | 12.7 mm |
| Travel 3 2 | 331 mm |
| Weight pair | 1.14 kg |
| Extended hold | No |
| Extension type | Full extraction |
| Fast disconnect | Yes |
| Locking | No |
| Material | Steel |
| Optional mounting brackets | Yes |
| Retracted hold | Yes |
| Self closure | Yes |
| Surface | Zinc-plated (bright) |
| Typ | DZ 3832 SC |
Description
Material: Slide elements: Cold rolled steel, zinc-plated or coated. Ball retainers: Cold rolled steel, zinc-plated. Balls: Hardened steel. Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Fast disconnection. Hold-in in the closed position and Hold-out in open position. Height-adjustable bracket mount included. Optional clip-on brackets available. Version bright zinc-plated or black passivated. Especially long service life, up to 50,000 cycles. Temperature range: -20°C to +70°C. Note Recommended fastening: M4 screw (included in delivery). Use all mounting positions to achieve the max. load ratings.
