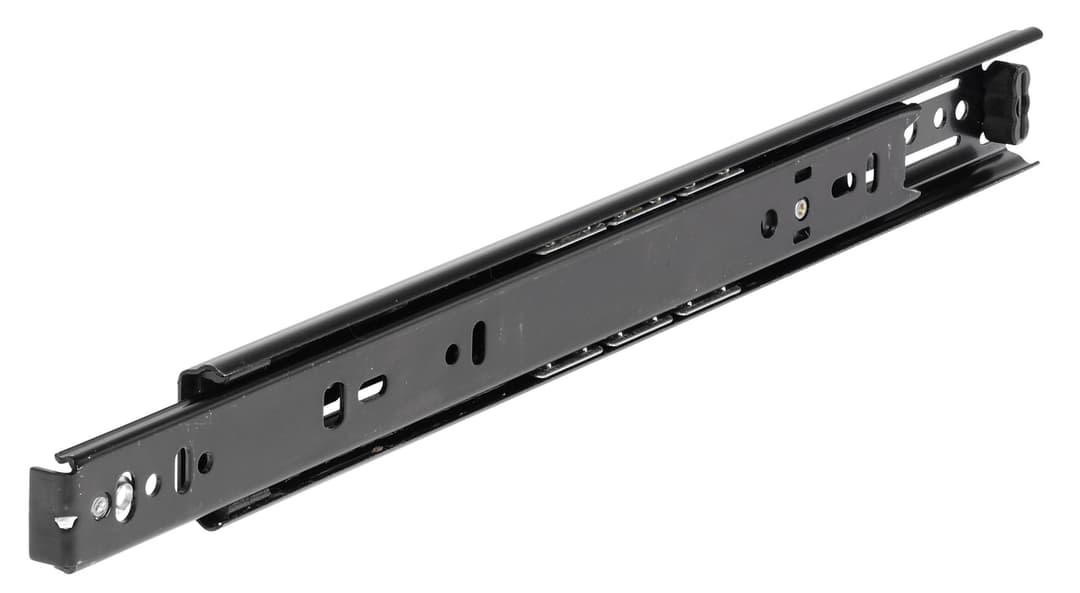

Slide set DB 2132 slide length 600mm zinc plated and black passivated
Manufacturer part no. 64911060
$41.46≈ 36.01 €
Price summary
Listed by MÄDLER at €36.01. Delivered to France, including shipping, VAT and any customs duty, it comes to about €61.21. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €36.01 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.20 |
| Total delivered | €61.21 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Rail length | 600 mm |
| Slide width | 12.7 mm |
| Travel 3 2 | 451 mm |
| Weight pair | 1.05 kg |
| Extended hold | No |
| Extension type | Partial extension |
| Fast disconnect | Yes |
| Load rating pair | 40 / 32 kg |
| Locking | No |
| Material | Steel |
| Optional mounting brackets | Yes |
| Retracted hold | Yes |
| Self closure | No |
| Surface | Zinc-plated (black) |
| Typ | DB 2132 |
Description
Material: Slide elements: Cold rolled steel, zinc-plated and black passivated. Ball retainers: Cold rolled steel, zinc-plated. Balls: Hardened steel. Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Fast disconnection. Hold-in in the closed position. Optional clip-on brackets available. Version zinc-plated and black passivated. Cam drawer adjust (3.1mm). Service life 10,000 / 80,000 cycles. Temperature range: -20°C to +70°C. Note Recommended fastening: M4 screw. Use all mounting positions to achieve the max. load ratings.
