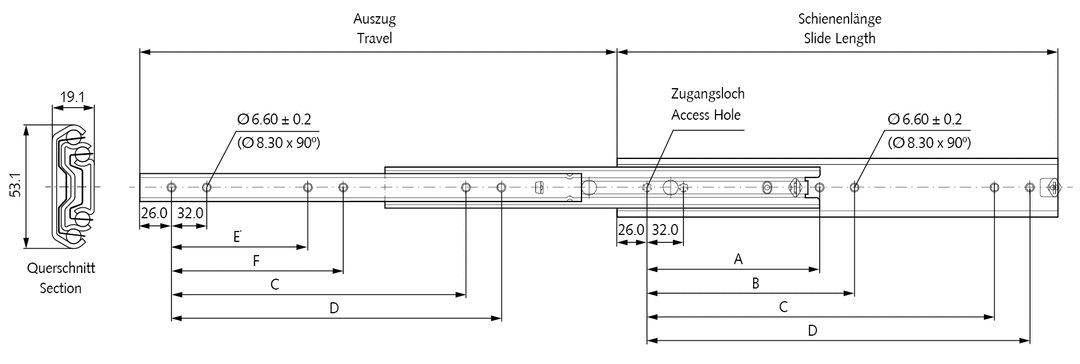

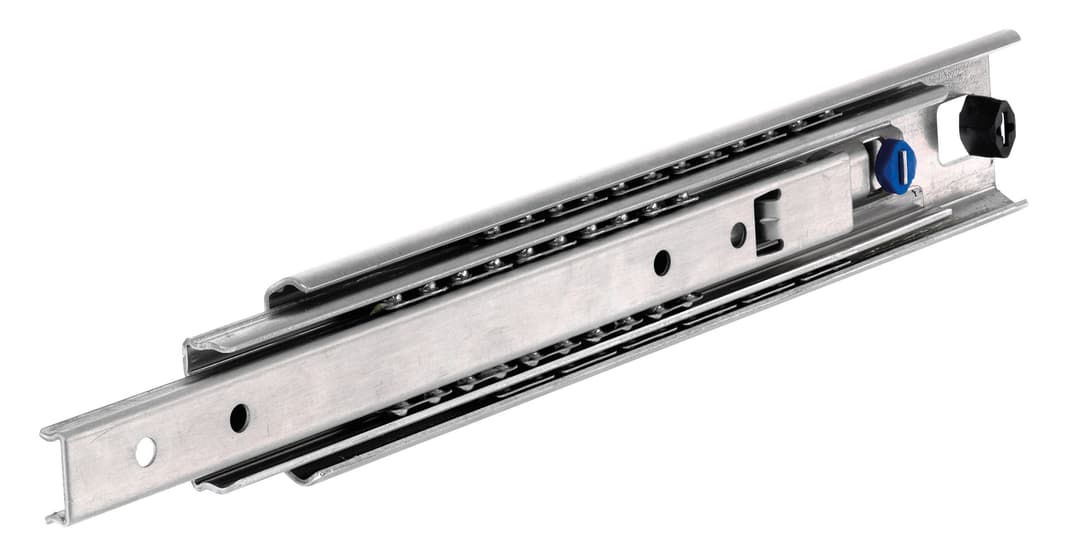

Slide set DS 5321 slide length 350mm stainless steel
Manufacturer part no. 64944035
$215.70≈ 187.32 €
Price summary
Listed by MÄDLER at €187.32. Delivered to France, including shipping, VAT and any customs duty, it comes to about €242.78. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €187.32 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €40.46 |
| Total delivered | €242.78 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Rail length | 350 mm |
| Slide width | 19.1 mm |
| Travel 3 2 | 373.5 mm |
| Weight pair | 2.04 kg |
| Extended hold | No |
| Extension type | Over extraction |
| Fast disconnect | No |
| Load rating pair | 140 / 120 kg |
| Locking | No |
| Material | Stainless steel (304) |
| Optional mounting brackets | No |
| Retracted hold | Yes |
| Self closure | No |
| Surface | Blank |
| Typ | DS 5321 |
Description
Material: Stainless steel 1.4301 (AISI 304). Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Hold-in in closed position. Mounting bracket for electrical cabinets on request. Service life 10,000 / 80,000 cycles. Temperature range: -20°C to +70°C. Note Recommended fastening: M5 countersunk / 6mm countersunk screw. Use all mounting positions to achieve the max. load ratings. Attention: Vertical mounting only Ordering details: e.g.: Product no. 649 440 30, Slides DS 5321
