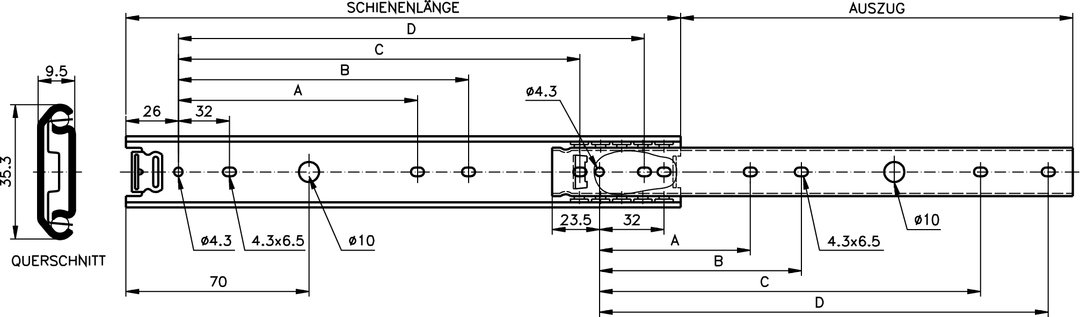

Slide set DS 2028 slide length 550mm stainless steel
Manufacturer part no. 64944455
$124.76≈ 107.98 €
Price summary
Listed by MÄDLER at €107.98. Delivered to France, including shipping, VAT and any customs duty, it comes to about €147.58. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €107.98 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €24.60 |
| Total delivered | €147.58 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Rail length | 550 mm |
| Slide width | 9.5 mm |
| Travel 3 2 | 394 mm |
| Weight pair | 1.02 kg |
| Extended hold | No |
| Extension type | Partial extension |
| Fast disconnect | No |
| Load rating pair | 50 / 45 kg |
| Locking | No |
| Material | Stainless steel (304) |
| Optional mounting brackets | No |
| Retracted hold | Yes |
| Self closure | No |
| Surface | Blank |
| Typ | DS 2028 |
Description
Material: Slide elements: Stainless steel 1.4301 (AISI 304). Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Hold-in in closed position. Ideal for environments where mild steel might corrode. Service life 10,000 / 80,000 cycles. Temperature range: -20°C to +70°C. Note Recommended fastening: M4 screw. Use all mounting positions to achieve the max. load ratings. Ordering details: e.g.: Product no. 649 444 30, Slides DS 2028
