MÄDLERMÄDLER· Fastening Elements

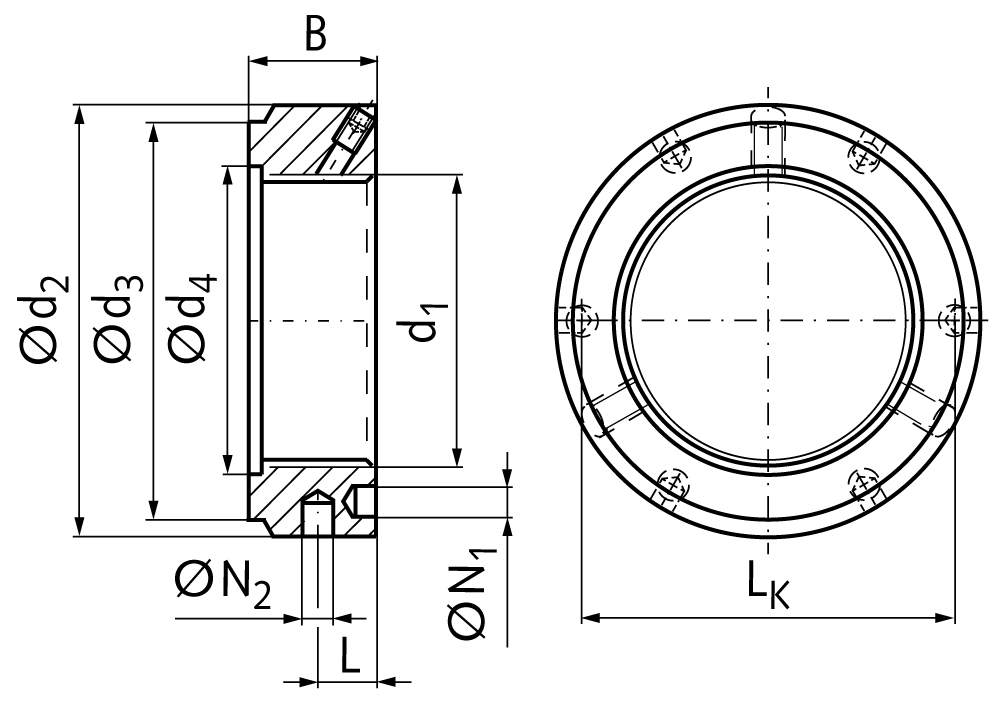

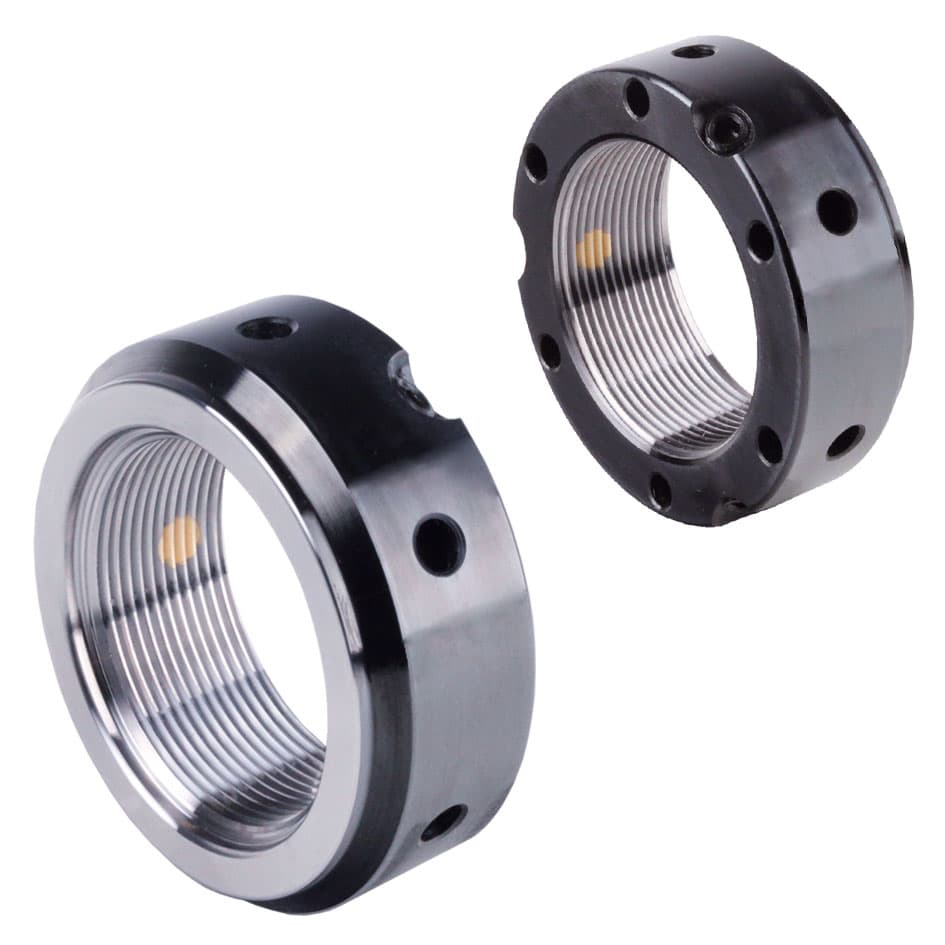

locknut KMTA 7 M35x1,5
Manufacturer part no. 65358107
$54.62≈ 47.43 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €47.43 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.49 |
| Total delivered | €74.92 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 190 g |
Other characteristics
| Axial bores for face spanner | 4.3 mm |
| Permissible axial load | 190 kN |
| Radial holes for hook wrench din 1810 form b wit | 5 mm |
| Tightening torque | 8 Nm |
| Material | Steel / Brass |
| Surface | Black oxide finish |
| Thread size x slope | M 35×1.5 mm |
| Type | KMTA 7 |
Description
Material: Body of the nut steel, min. strength 350 N/mm2. Reusable shaft nut with integrated locking devices. Special features of the shaft nut are the locking inserts from brass. These inserts are threaded and thus does not cause any damage. The locking inserts are pressed against the shaft thread with locking screws. With the screws, the runout can also be adjusted up 0.005 mm. With bores for hook wrench DIN 1810 B or face spanner. Designed for applications, which require a high precision and trustable locking. 1) Axial bores for face spanner. 2) Radial bores for hook wrench DIN 1810 form B with pins. 3) Fastening torque of locking screw.
