MÄDLERMÄDLER· Fastening Elements

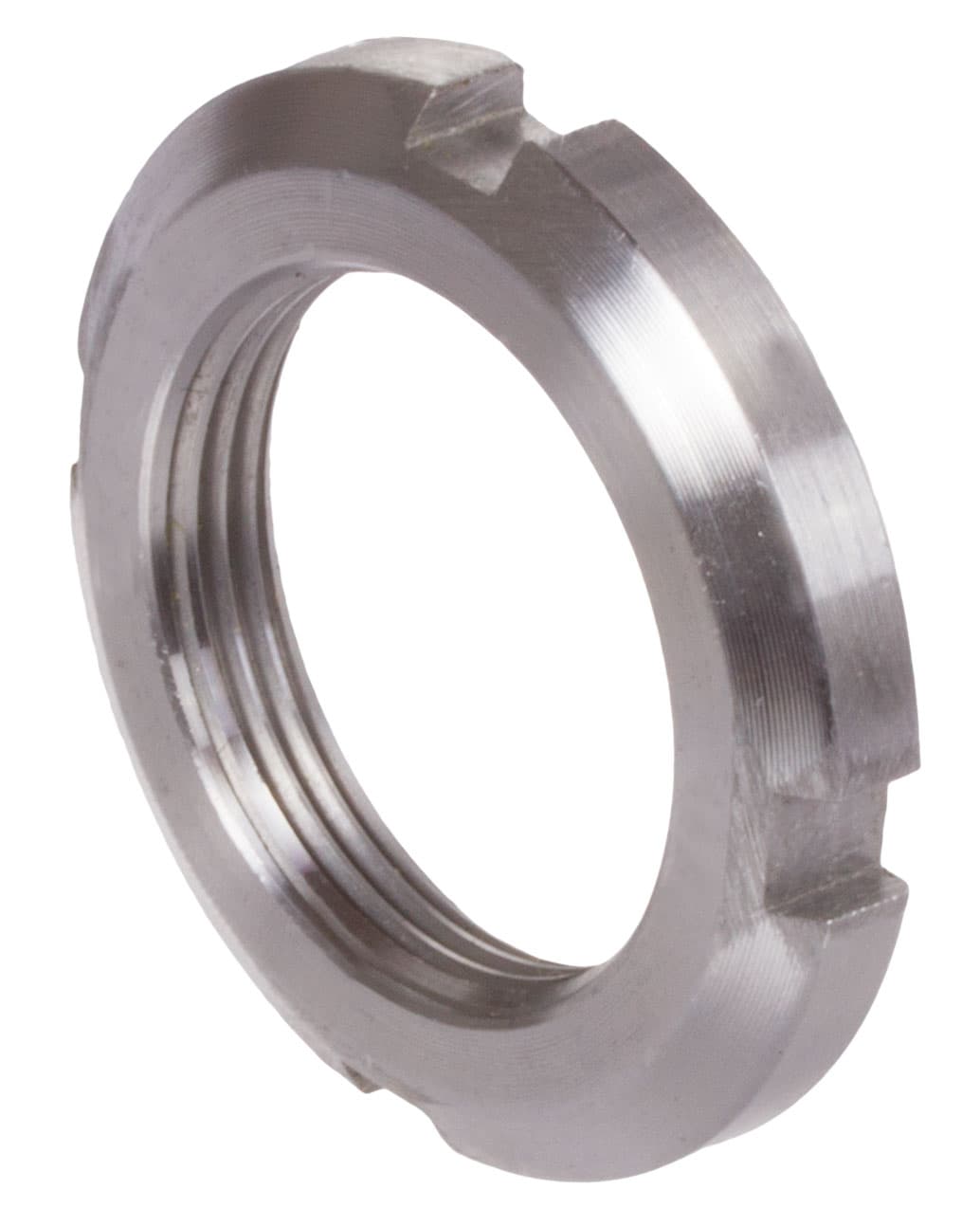

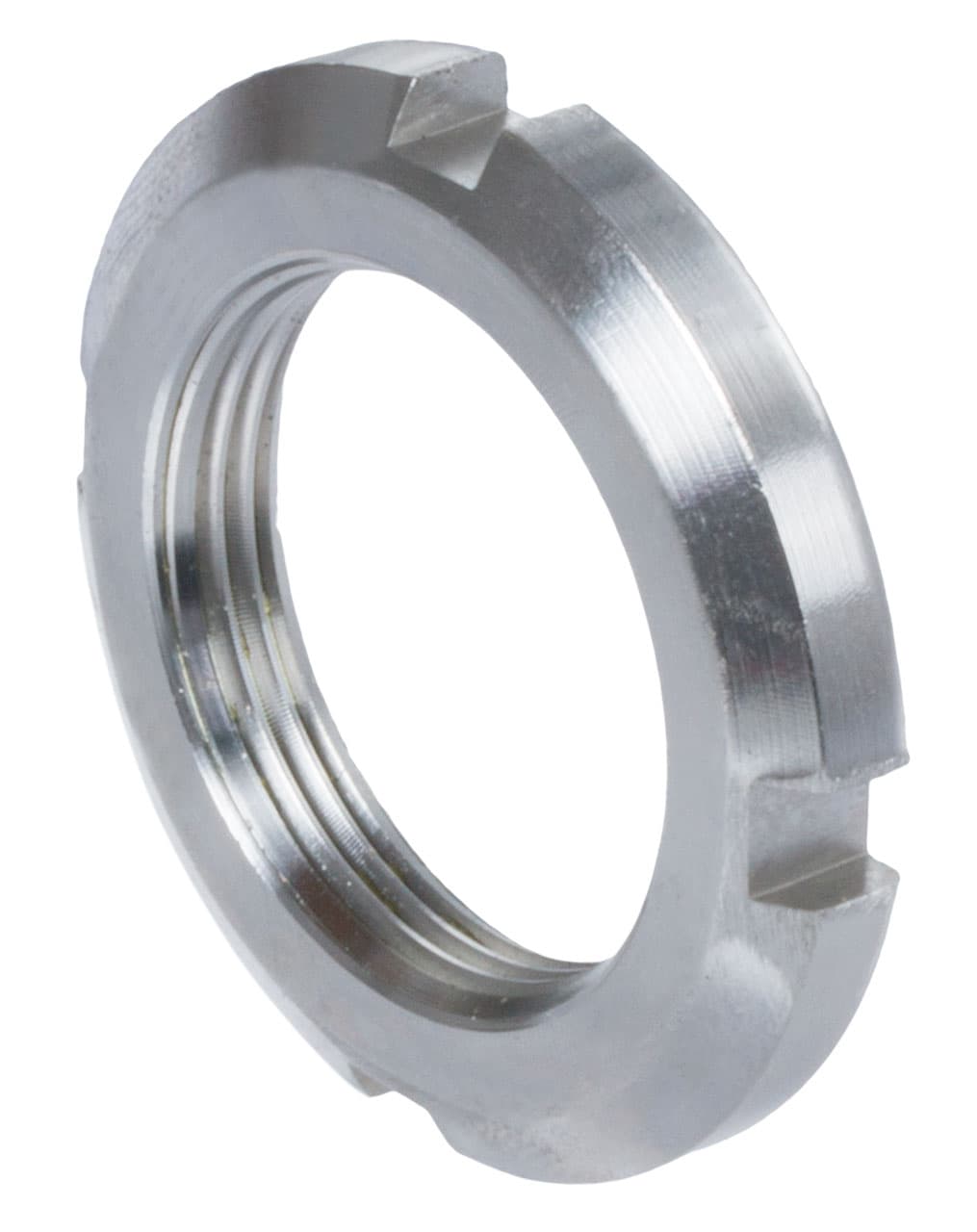

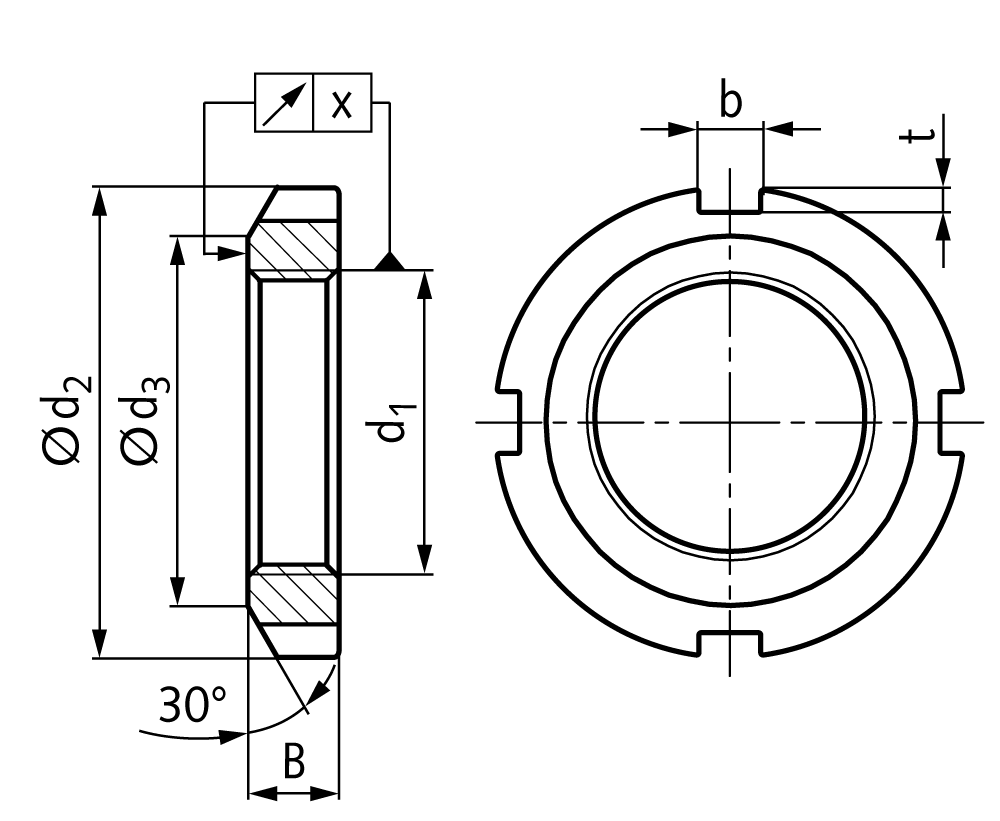

Locknut DIN 981 KM 15 thread M75x2
Manufacturer part no. 65367800
$12.17≈ 10.57 €
In stock — 9 unitslead time 14 d
Estimated landed cost
| Item | €10.57 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.11 |
| Total delivered | €30.68 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 287 g |
Other characteristics
| Outer diameter | 98 mm |
| Material | Steel |
| Surface | Blank |
| Thread size x pitch | M 75×2 mm |
| Type | KM 15 |
Description
Material: Steel, min. strength 350 N/mm². These nuts are used for unsafed, quickly to loosen applications, or for a safe connection with an additional lockwasher DIN 5406 (for these lockwashers, a keyway is required on the shaft thread). Recommend tolerance for the shaft thread: 6g DIN ISO 965.
