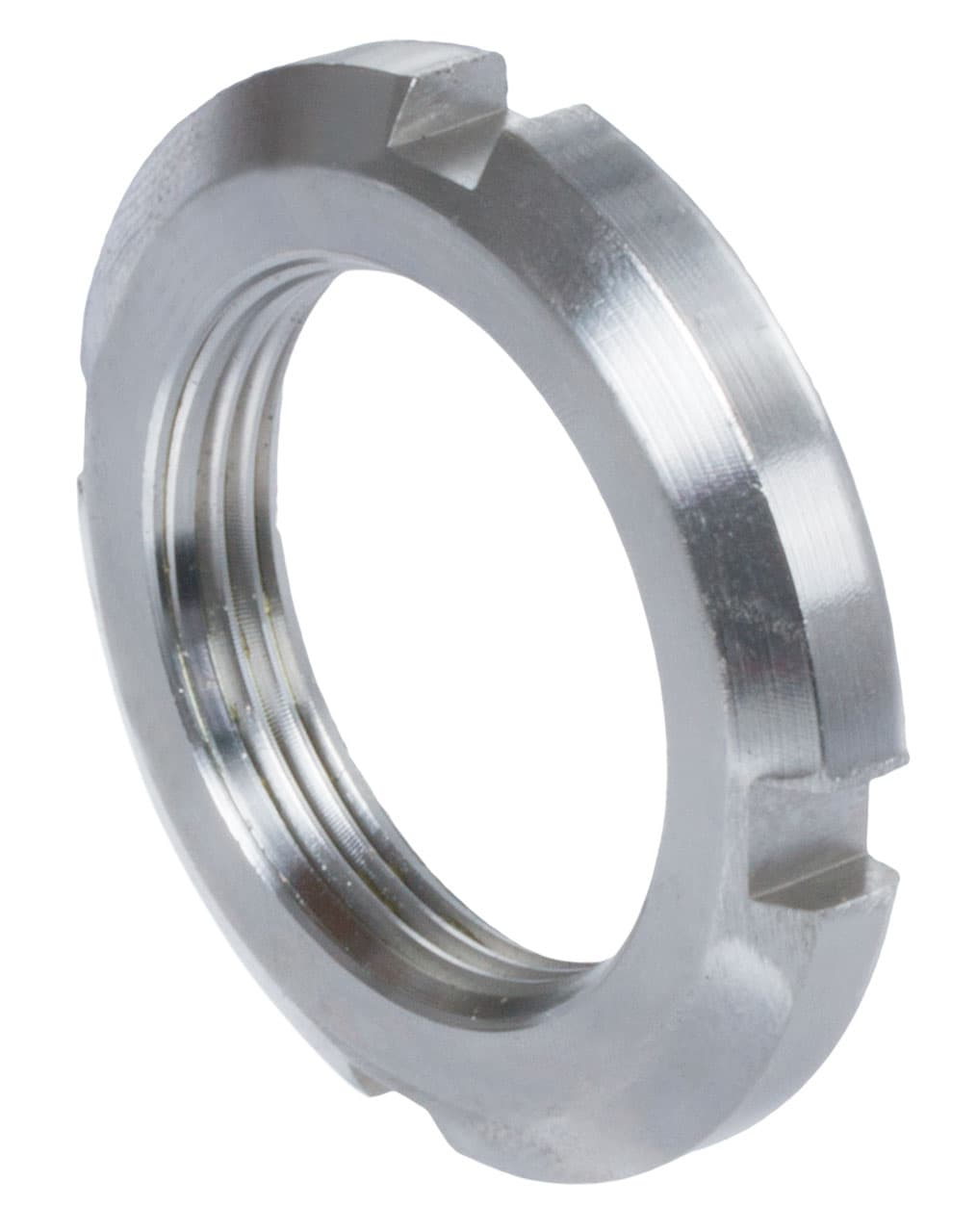

Locknut DIN 981 KM5 M25x1,5 zinc plated
Manufacturer part no. 65388644
$3.84≈ 3.33 €
In stock — 3 unitslead time 14 d
Estimated landed cost
| Item | €3.33 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.67 |
| Total delivered | €22.00 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 25 g |
Other characteristics
| Outer diameter | 38 mm |
| Material | Steel |
| Surface | Zinc-plated |
| Thread size x pitch | M 25×1.5 mm |
| Type | KM 5 |
Description
Material: Steel zinc-plated, Strength min. 350 N/mm2. These nuts are used for unsafed, quickly to loosen applications, or for a safe connection with an additional lockwasher DIN 5406 (for these lockwashers, a keyway is required on the shaft thread). Recommend tolerance for the shaft thread: 6g DIN ISO 965.
