MÄDLERMÄDLER

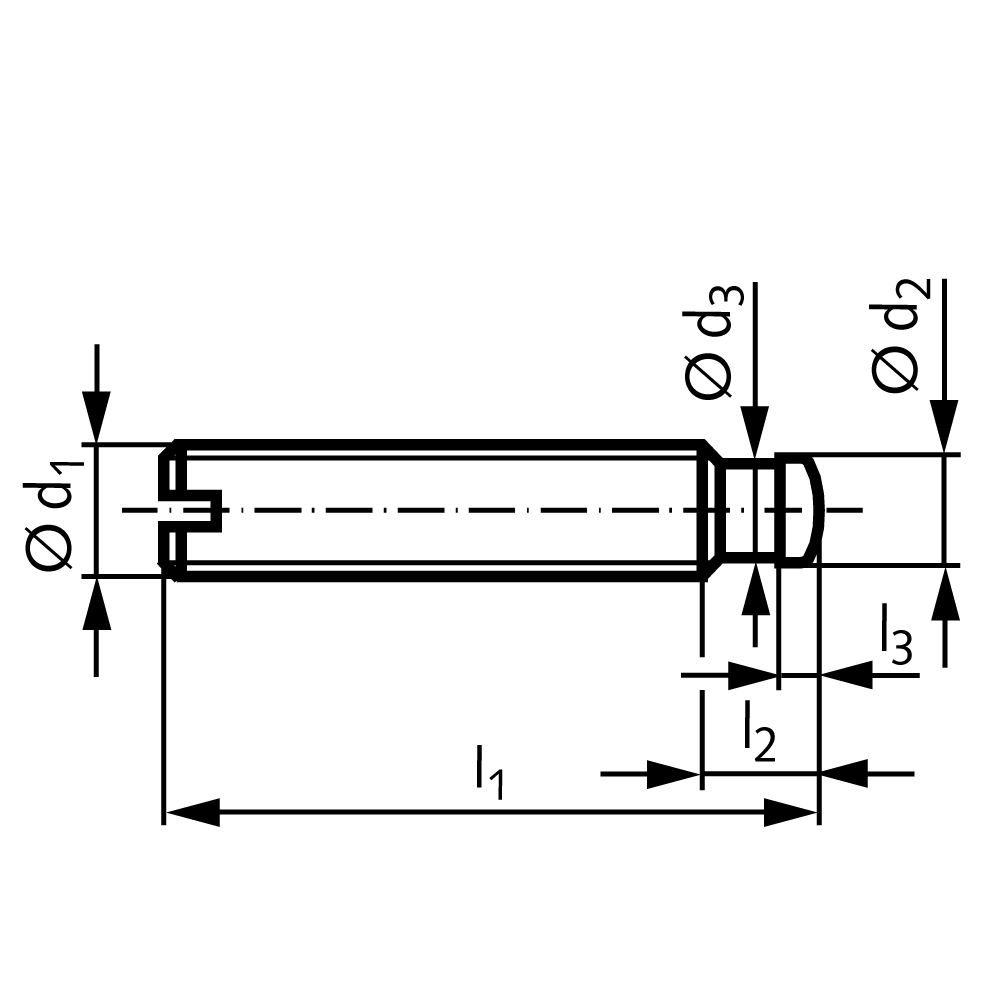

Grub screw DIN 6332 with thrust point thread M6 length 30mm steel strength 5.8 black oxide finished
Manufacturer part no. 65400600
$2.30≈ 1.99 €
Price summary
Listed by MÄDLER at €1.99. Delivered to France, including shipping, VAT and any customs duty, it comes to about €20.39. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €1.99 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.40 |
| Total delivered | €20.39 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 4.9 g |
Other characteristics
| Total length | 30 mm |
| Material | Steel (5.8) |
| Surface | Black oxide finish |
| Thread size | M 6 mm |
Description
Material: Steel quality 5.8, turned, thrust point hardened, black oxide finish. Type S: With slot. Assembly: Turn thrust screw into thrust pad. The thrust pad has to be held thus that the spring retainer lies in the recess with its open side at the bottom. Now tilt the grub screw as far as possible towards the open side of the ring and press it in. To be combined with the thrust pads DIN 6311 on the same catalog page (product no. 65410600-65414000).
