MÄDLERMÄDLER· Cylinder Conveyor Rollers and Ball Transfer Units

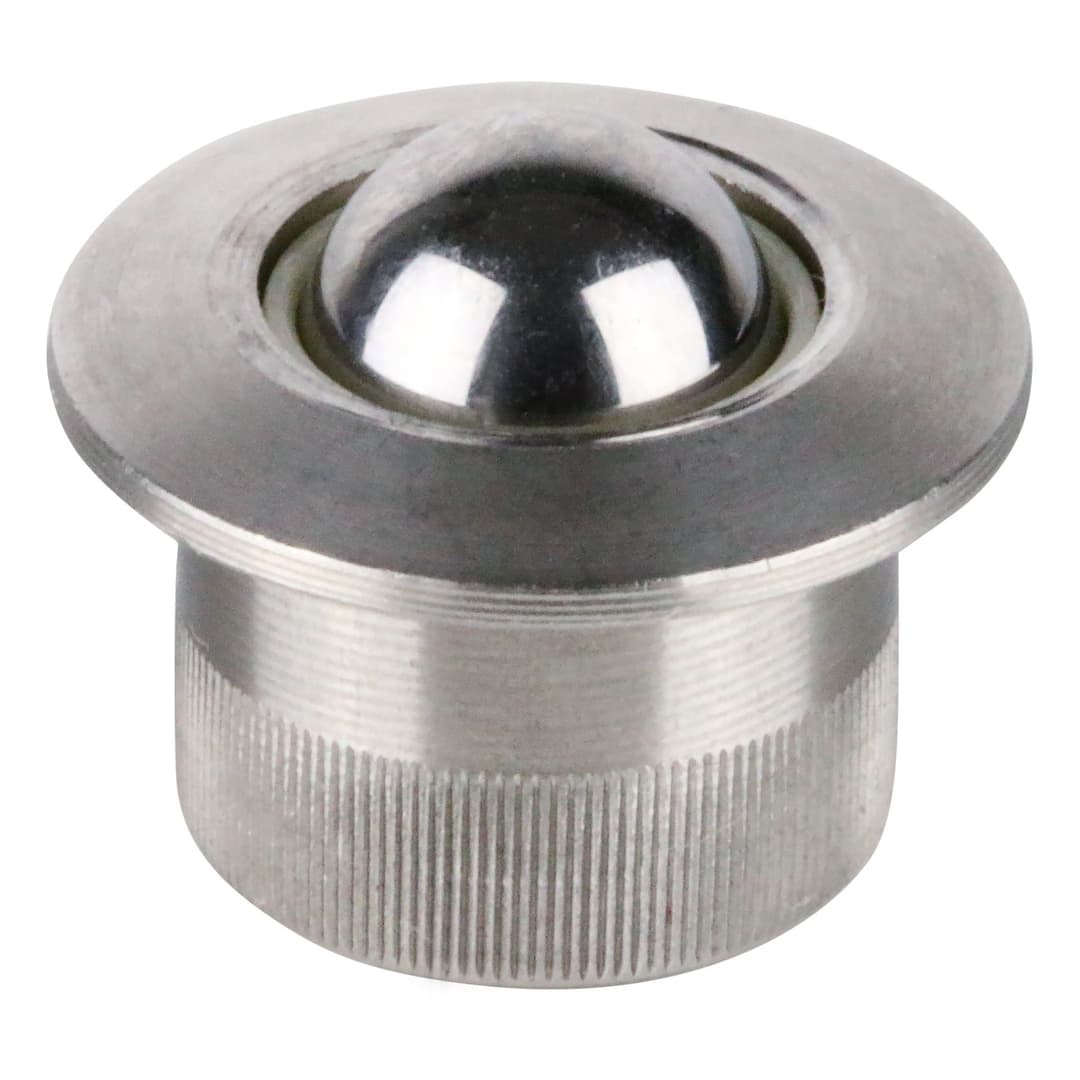

ball transfer unit 305 size 8,5 ball and housing stainless steel bearing plastic maintenance-free
Manufacturer part no. 65430508
$14.76≈ 12.82 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €12.82 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.56 |
| Total delivered | €33.38 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 8 g |
Other characteristics
| Load rating tragzahl bei 0 5m sec | 38.64 N |
| Load rating tragzahl bei 1 5m sec | 12.88 N |

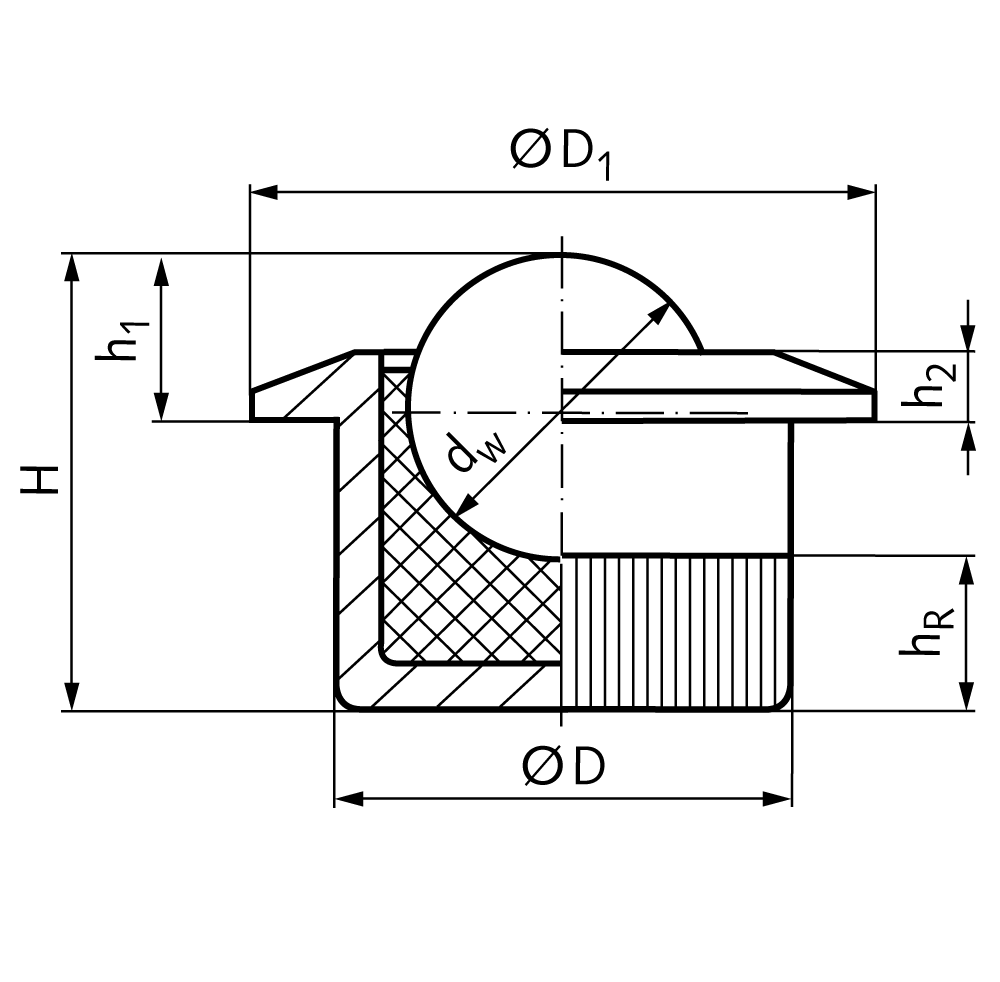

| Outer diameter mounting surface | 12.6 mm |
| Outer diameter support surface | 17 mm |
| Overhang with ball | 4.5 mm |
| Overhang without ball | 1.8 mm |
| Size | 8.5 mm |
| Total height | 12.4 mm |
| Material | Stainless steel (420) |
| Stainless | Yes |
| Surface | Blank |
Description
Material: Housing: Stainless steel. Ball cup: Plastic. Balls: Stainless steel, hardened. Mini ball transfer unit, for example for material feeders for processing machines or packing machines. Orientation: anyway. The cup must be inserted into a mounting hole with tolerance H7. The knurled housing is self-holding. Conveying speed max. 1.5m/sec. pv-value max. 0.34 Nm/mm² x m/sec. Temperature range -20°C to +90°C.
