MÄDLERMÄDLER· Cylinder Conveyor Rollers and Ball Transfer Units

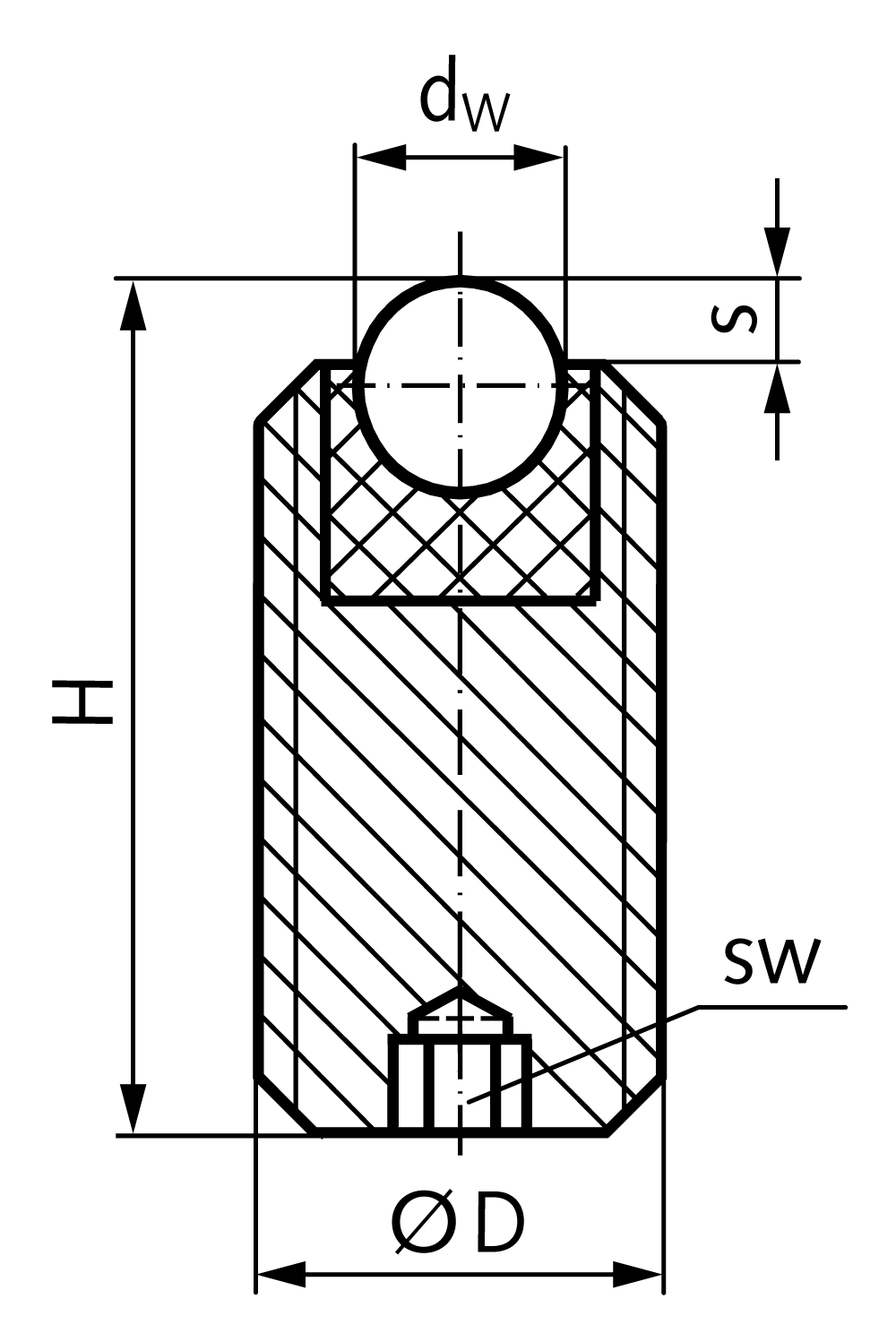

Ball transfer unit 306 screwable plain bearing M6x8
Manufacturer part no. 65430601
$14.75≈ 12.81 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €12.81 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.56 |
| Total delivered | €33.37 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1 g |
Other characteristics
| Ball overhang approx | 0.5 mm |
| Balldiameter | 2.5 mm |
| Length | 8 mm |
| Load rating at 0 5m sec | 3.34 N |
| Load rating at 1 5m sec | 1.11 N |
| Tightening torque | 0.11 Nm |
| Wrench size | 1.5 mm |
| Material | Steel |
| Surface | Black oxide finish |
| Thread size | M 6 mm |
Description
Material: Housing: Steel, black oxide finish. Ball cup: Plastic. Ball: Steel 100Cr6, hardened. Mini ball transfer unit, for example for material feeders for processing machines or packing machines. Orientation: anyway. Conveying speed max. 1.5m/sec. pv-value max. 0.34 Nm/mm² x m/sec. Temperature range -20°C to +90°C.
