MÄDLERMÄDLER· Fastening Elements

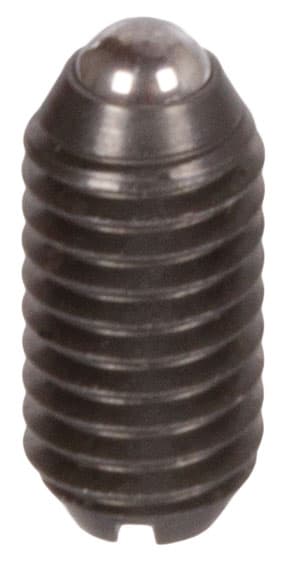

Spring plunger M10 with ball and slot steel black oxided
Manufacturer part no. 65461000
$3.34≈ 2.90 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €2.90 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.58 |
| Total delivered | €21.48 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 7 g |
Other characteristics
| Ball diameter | 6 mm |
| Length | 19 mm |
| Overhang of ball | 2 mm |
| Spring force | 24 N |
| Material | Steel |
| Surface | Black oxide finish |
| Thread size | M 10 mm |
Description
Material: Body: Free cutting steel, black oxide finish. Ball: Hardened. Spring: Stainless steel. Standard spring tension. Note: These Spring Plungers are, e.g., used for fixation or as device to press something in or push it out. Temperature range: -40°C to +250°C. *statistical average
