MÄDLERMÄDLER· Mechanics & transmission

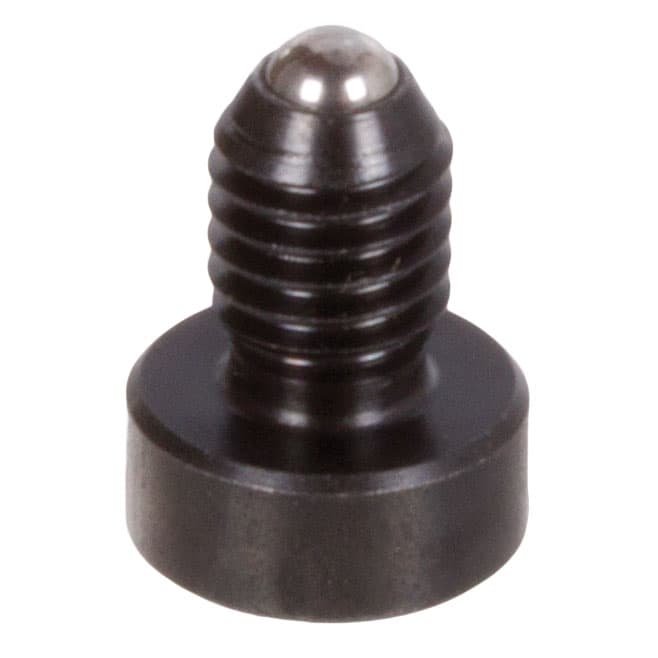

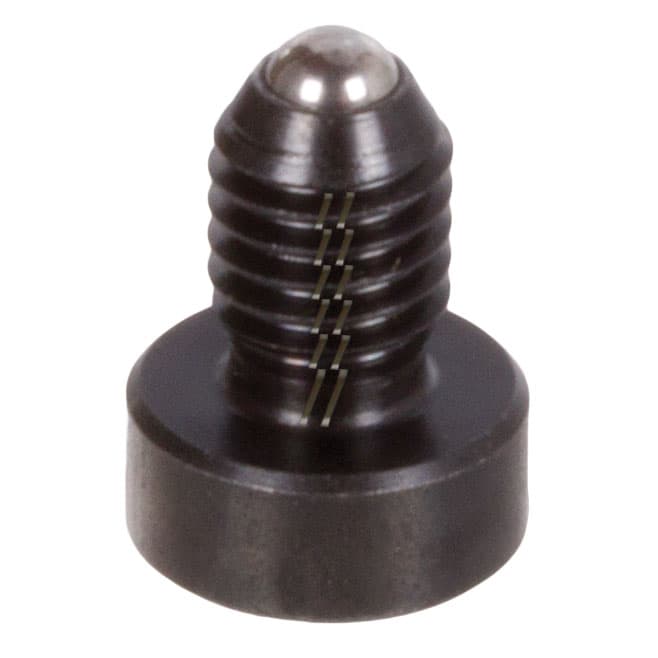

Spring plunger M6 type AS with ball and internal hexagon steel black oxided
Manufacturer part no. 65466700
$8.83≈ 7.67 €
Price summary
Listed by MÄDLER at €7.67. Delivered to France, including shipping, VAT and any customs duty, it comes to about €27.20. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €7.67 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.53 |
| Total delivered | €27.20 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 3.8 g |
Other characteristics
| D2 | 3.5 mm |
| D3 | 10 mm |
| F2 | 18 N |
| L1 | 15 mm |
| L2 | 10 mm |
| S | 1 mm |
| Spring load f1 | 11 N |
| Sw | 3 mm |
| D1 | M6 |
| L3 | – |
Description
Material type AS: Body: Steel, black oxide finish. Ball: Ball bearing steel, hardened. Spring: Stainless steel, standard spring tension. Used for fixation and to press something in or push it out. Temperature range: -40ºC to +250ºC. * Statistical average
