MÄDLERMÄDLER· Fastening Elements

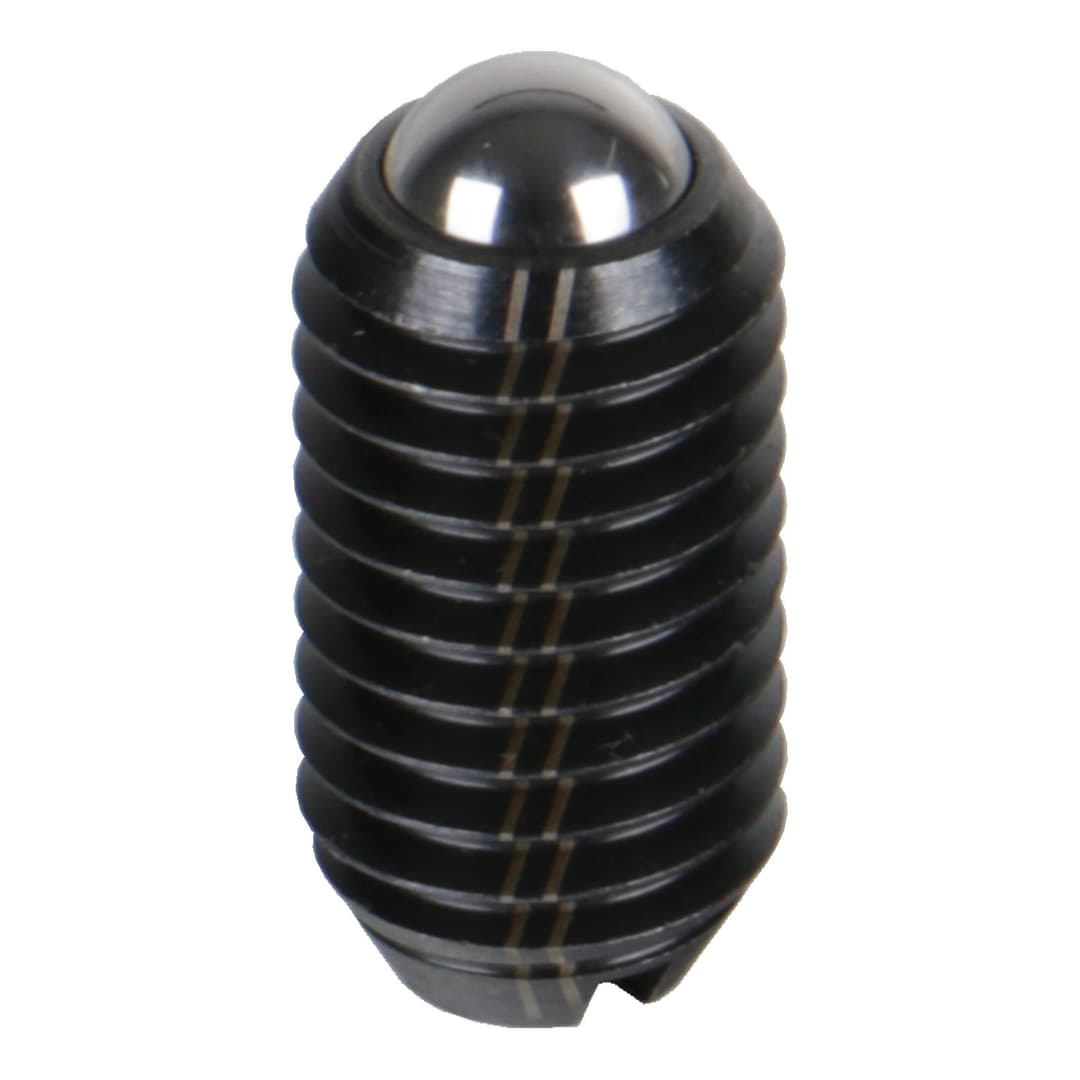

Spring plunger M16 with ball and slot strong tension steel black oxided
Manufacturer part no. 65481600
$7.36≈ 6.39 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €6.39 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.28 |
| Total delivered | €25.67 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 24 g |
Other characteristics
| Ball diameter | 10 mm |
| Length | 24 mm |
| Overhang of ball | 3.5 mm |
| Spring force | 68 N |
| Material | Steel |
| Surface | Black oxide finish |
| Thread size | M 16 mm |
Description
Material: Body: Steel, black oxide finish. Ball: Hardened. Spring: Stainless steel. Strong spring tension. Temperature range: -40ºC to +250ºC.
