MÄDLERMÄDLER· Mechanics & transmission

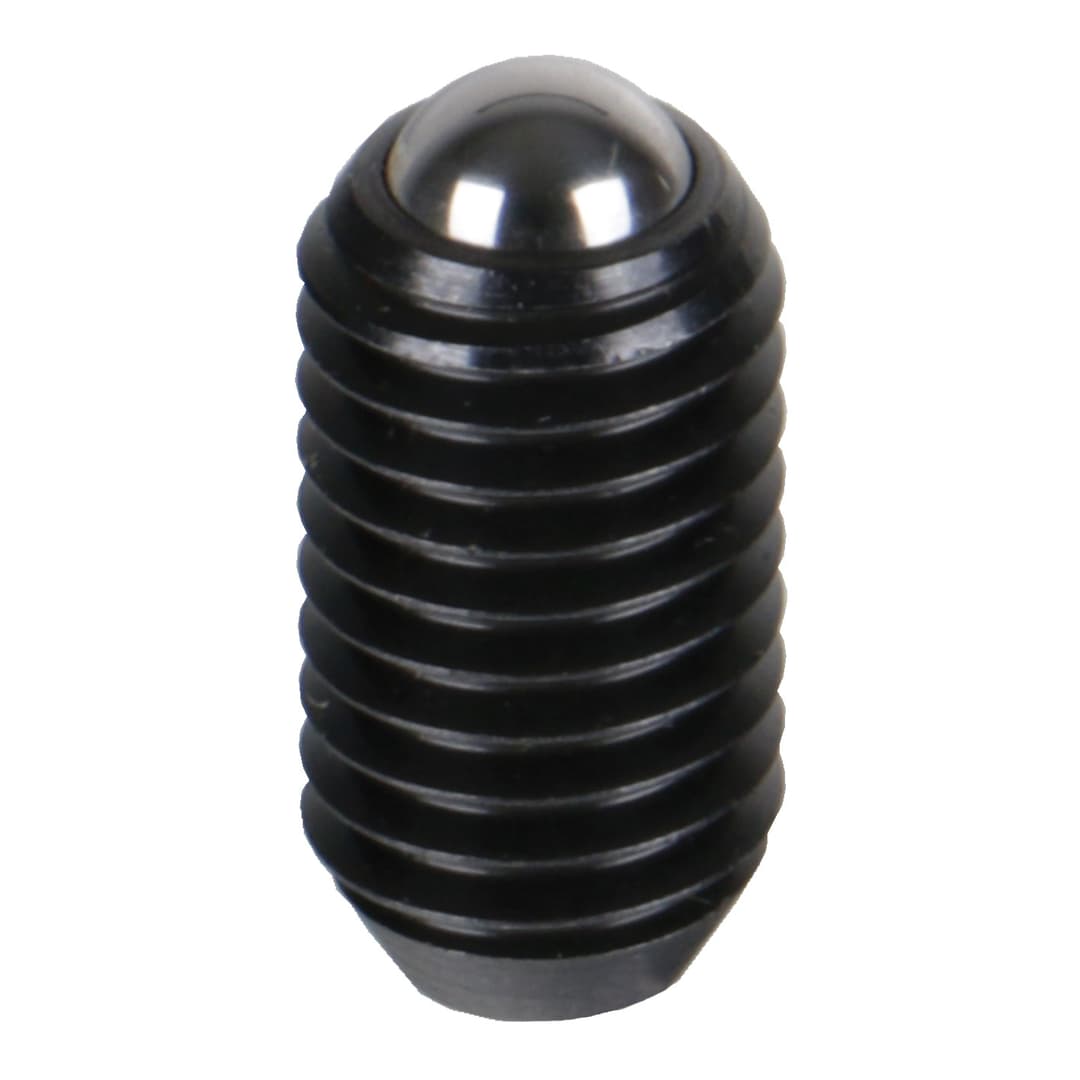

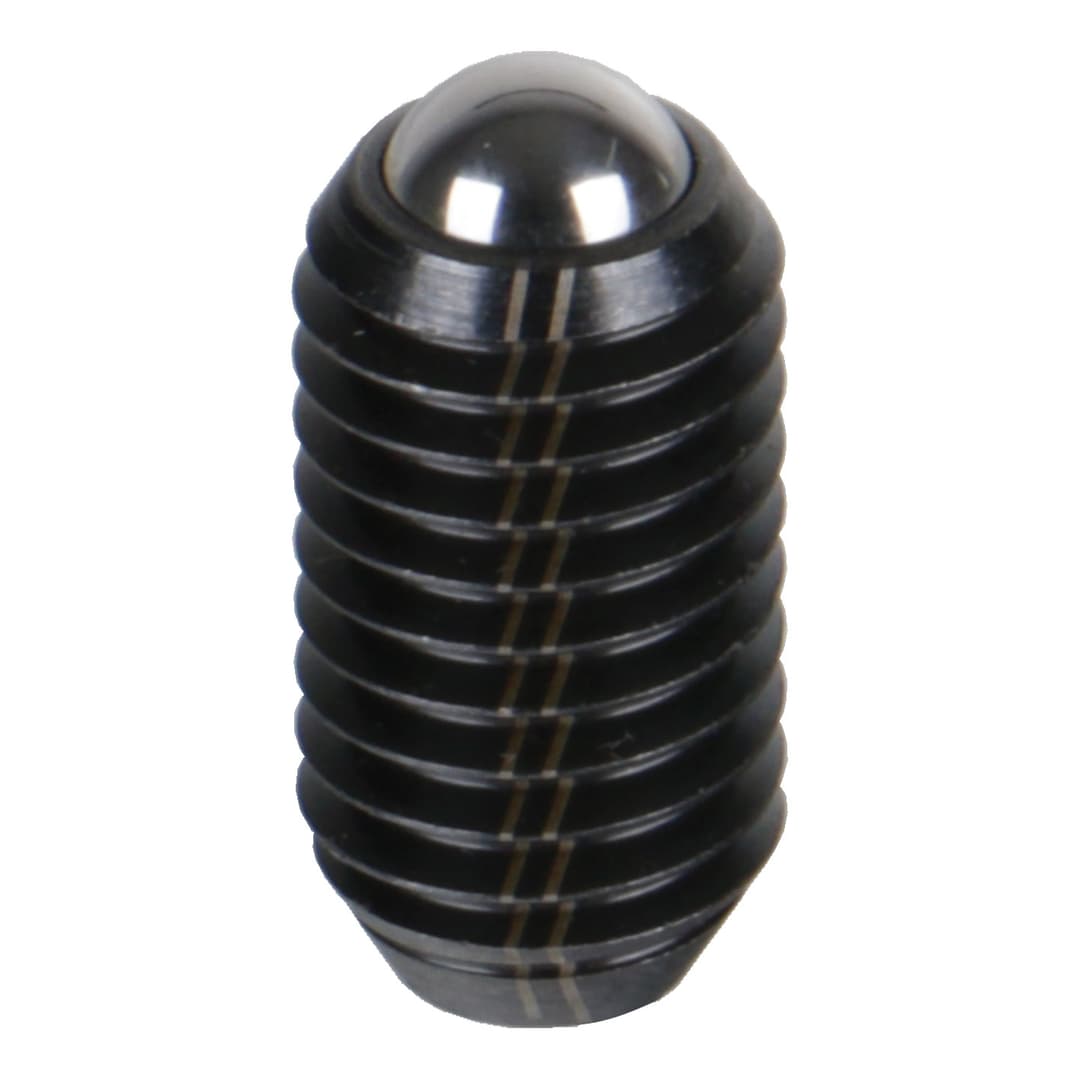

Spring plunger M8 with moving ball and internal hexagon steel black oxided
Manufacturer part no. 65490800B
$8.42≈ 7.31 €
Price summary
Listed by MÄDLER at €7.31. Delivered to France, including shipping, VAT and any customs duty, it comes to about €26.77. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €7.31 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.46 |
| Total delivered | €26.77 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 4.8 g |
Other characteristics
| D2 | 3.5 mm |
| F2 | 24 N |
| L | 18 mm |
| S | 0.95 mm |
| Spring force f1 | 16 N |
| Sw | 4 mm |
| D1 | M8 |
Description
Material: Body: steel, black oxide finish. Ball: hardended. Bearing: Plastic. Spring: Stainless steel, standard spring tension. Temperature range: -30ºC bis +90ºC. * Statistical average
