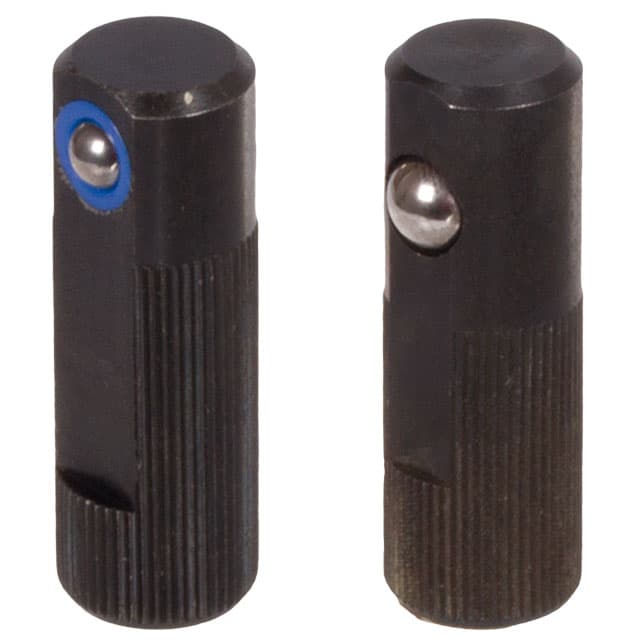

Spring-action side thrust pin 2214 14 x 40 version A single-sided steel black oxided
Manufacturer part no. 65493400
$19.78≈ 17.18 €
Price summary
Listed by MÄDLER at €17.18. Delivered to France, including shipping, VAT and any customs duty, it comes to about €38.62. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €17.18 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.44 |
| Total delivered | €38.62 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 43 g |
Other characteristics
| Ball diameter | 6.5 mm |
| Center distance ball area to head | 5.8 mm |
| Intake bore h8 | 14 mm |
| Length to flattening | 10 mm |
| Outer diameter | 14 mm |
| Overhang of ball | 1.8 mm |
| Spring load end | 18 N |
| Spring load inital | 8 N |
| Spring travel of ball | 5.4 mm |
| Total length | 40 mm |
| Material | Steel / Stainless steel |
| Surface | Black oxide finish |
| Version | A |
Description

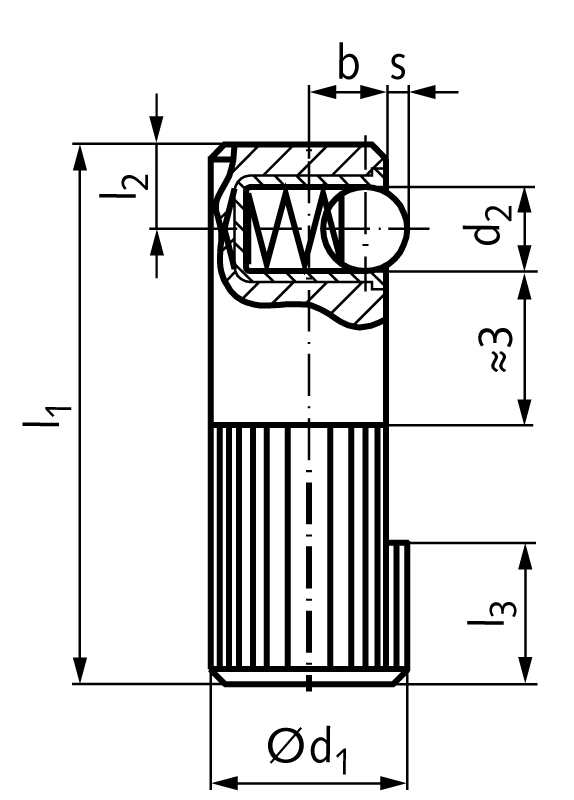

Material: Version A: Free cutting steel, black oxide finish. Ball: Stainless steel, hardened. Spring: Stainless steel. Temperature range -30°C to +50°C. Version B: Free cutting steel, burnished. Ball: Steel, hardened. Spring: Plastic. Temperature range -40°C to +80°C. Note: The side thrust pin is pressed into the bore by at least as far as the measure l3. It serves to position, hold or clamp small workpieces inside fixtures. If the workpiece is machined, additional clamping devices might be required for holding it safely in place. If fixtures are stored please make sure that the plastic spring is not loaded. *statistical average
