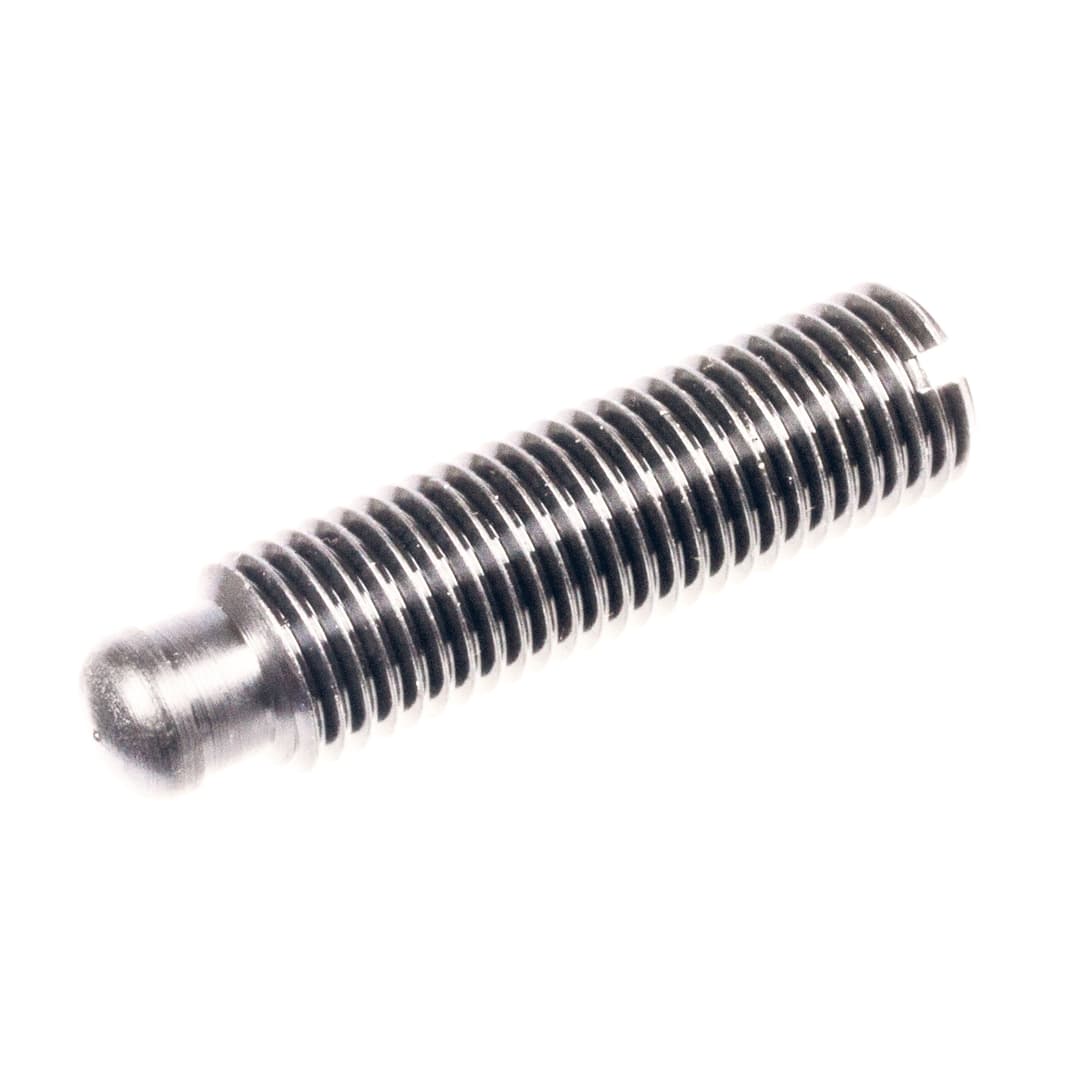

Grub screw DIN 6332 with thrust point thread M16 length 125mm stainless steel
Manufacturer part no. 6549902600
$10.80≈ 9.38 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €9.38 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.88 |
| Total delivered | €29.26 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 160 g |
Other characteristics
| Total length | 125 mm |
| Material | Stainless steel (304) |
| Surface | Blank |
| Thread size | M 16 mm |
Description
Material: Stainless steel 1.4301 (AISI 304). Type S: With slot. Assembly: Turn thrust screw into thrust pad. The thrust pad has to be held thus that the spring retainer lies in the recess with its open side at the bottom. Now tilt the grub screw as far as possible towards the open side of the ring and press it in. To be combined with the thrust pads DIN 6311 on the same catalog page (product no. 65499106-65499120).
