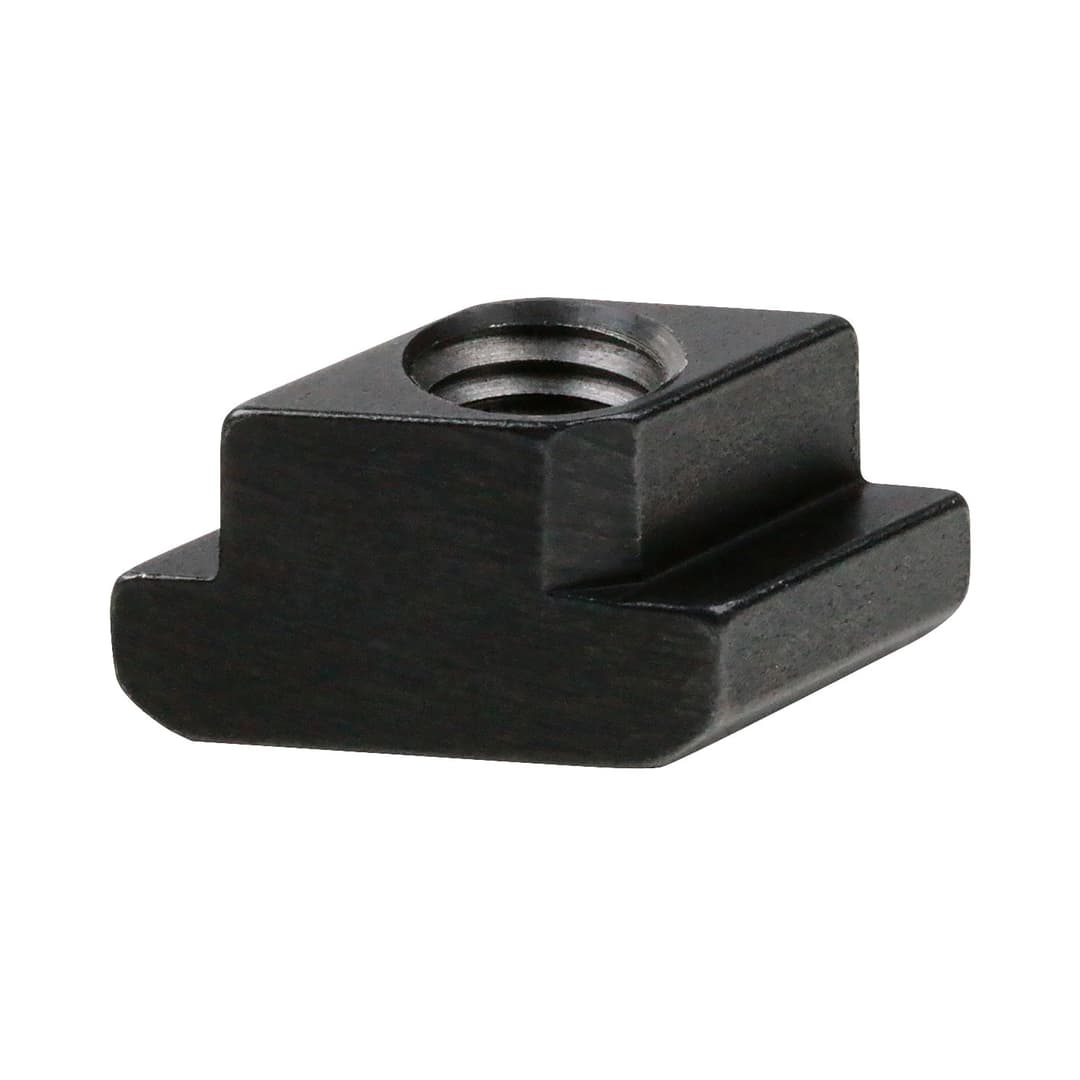

Nut DIN 508 rhombus for T-slot 36mm DIN 650 thread M30 quality 10
Manufacturer part no. 65513036R
$67.60≈ 58.71 €
Price summary
Listed by MÄDLER at €58.71. Delivered to France, including shipping, VAT and any customs duty, it comes to about €88.45. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €58.71 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €14.74 |
| Total delivered | €88.45 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 423 g |
Other characteristics
| For t slots din 650 | 36 mm |
| Height | 44 mm |
| Material | Tempered steel (strength class 10) |
| Surface | Black |
| Thread size | M 30 mm |
Description
Material: Tempered steel, tensile strength 10, black. T-slot nuts according to the old standard DIN 508, but in the shape of a rhombus. Suitable for T-slots DIN 650 / ISO 299. These rhombus nuts can be inserted into the slot from above. By this, long displacement travels may be prevented. Before tightening a screw, the nut must be aligned inside the slot.
