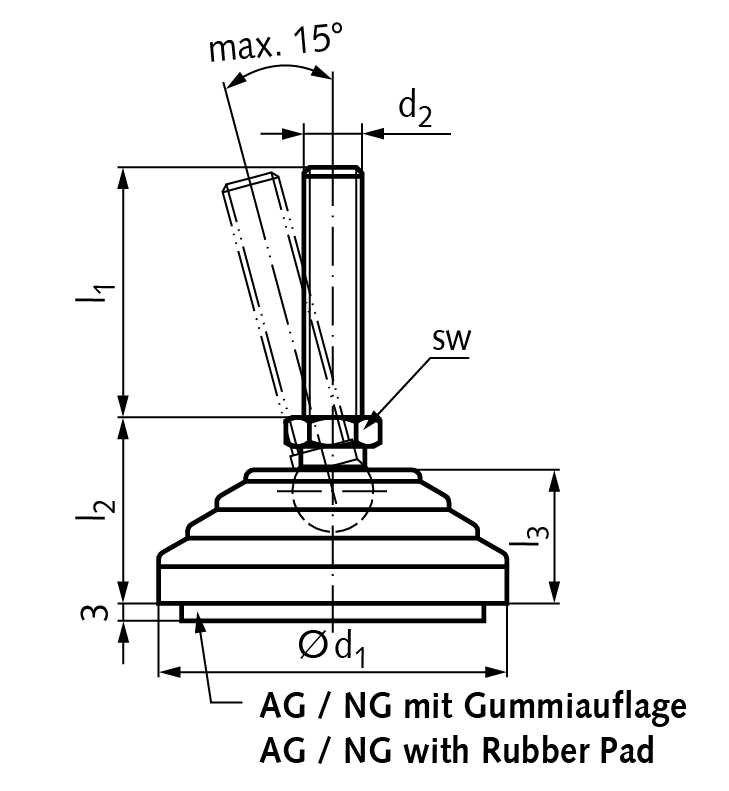

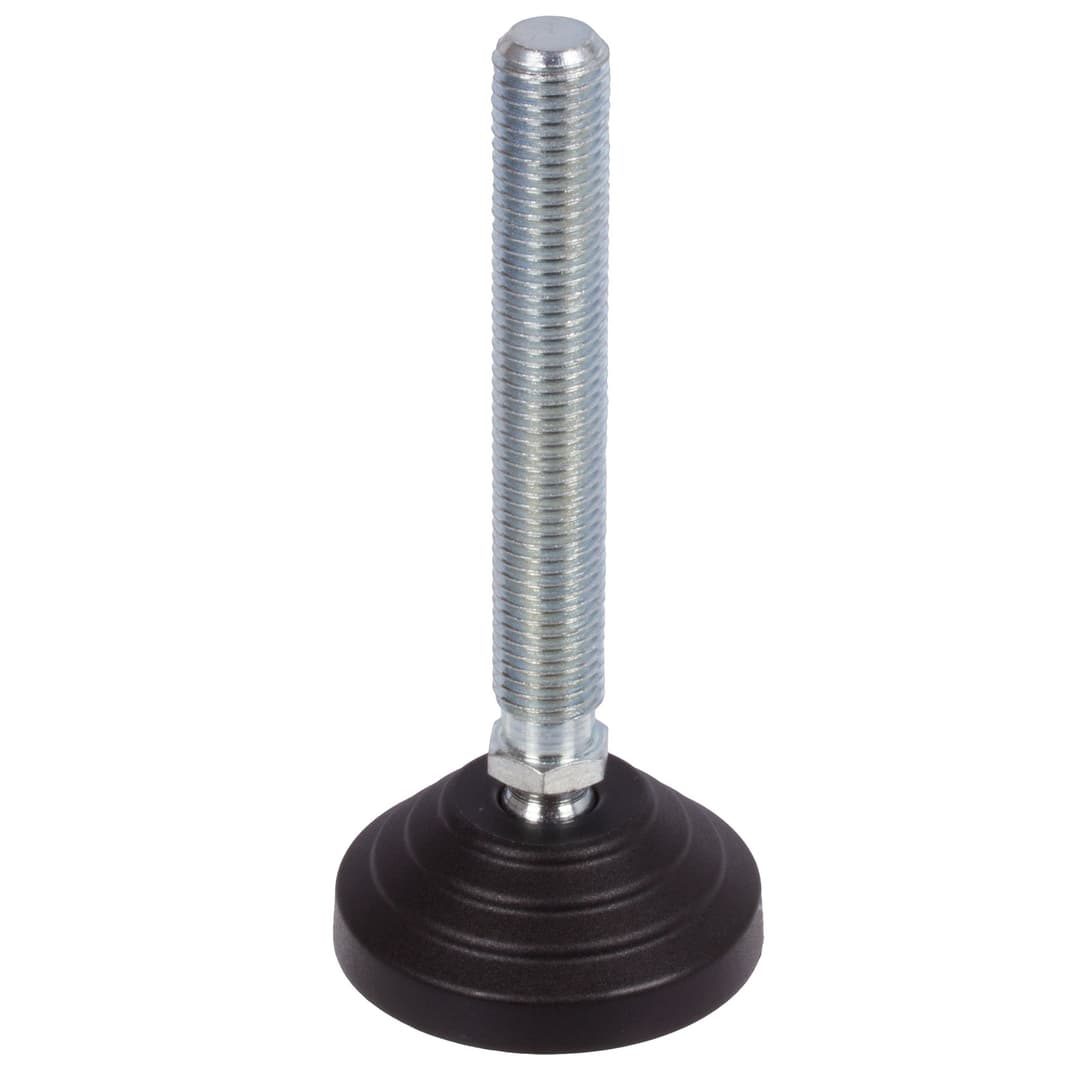

Leveling foot 344 type A M16 x 68mm long foot diameter 80mm
Manufacturer part no. 65531400
$13.02≈ 11.31 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €11.31 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.26 |
| Total delivered | €31.57 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 160 g |
Other characteristics
| Ball diameter | 14 mm |
| Outer diameter | 80 mm |
| Screw in length | 68 mm |
| Static load | 16 000 N |
| Wrench size | 16 mm |
| Material | Plastic / Steel |
| Shape | A |
| Surface | Matt finish / Zinc-plated |
| Thread size | M 16 mm |
Description
Material: Base: plastic (polyamide), glass-fibre reinforced, matt finish black. Bolt: steel, strength class 5.8., zinc plated, chromated. Rubber pad: NBR (perbunan) 70° Shore hardness, black. Type A: without rubber pad. Type AG: with rubber pad. The feet is slightly stepped. This makes it look good and easy to clean. Due to the use of a high grade plastic material and their shape (ribbed base), that serves to spread the weight over a larger area, the feet have a high load bearing capacity. The rubber pad is fixed to the base with four pins/bores. The rubber pad levels out slightly uneven ground and makes the foot non-slip.
