MÄDLERMÄDLER· Mechanics & transmission

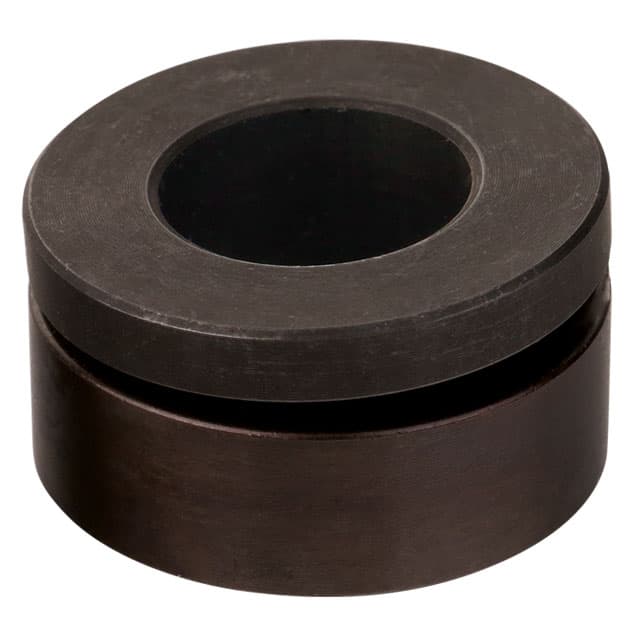

Spherical washer-and-seat combination diameter 40mm for bolt diameter 20mm steel hardened
Manufacturer part no. 65542000K
$12.71≈ 11.04 €
Price summary
Listed by MÄDLER at €11.04. Delivered to France, including shipping, VAT and any customs duty, it comes to about €31.25. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €11.04 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.21 |
| Total delivered | €31.25 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 122 g |
Other characteristics
| D1 0 22 | 21 mm |
| D2 0 22 | 24.6 mm |
| D4 0 2 | 40 mm |
| F | 117 |
| H | 20.3 mm |
| For bolt | M20 |
Description
Material: Spherical washer from steel, turned, case hardened, hardening depth min. 0.2 mm. Conical seat tempered. Phosphated and oiled. Spherical washer and conical seat are undetachable connected. The total height h is larger than parts like DIN 6319. Mostly, the outside diameter d4 is also bigger. Advantages: Easy to mount. Only one product required.
