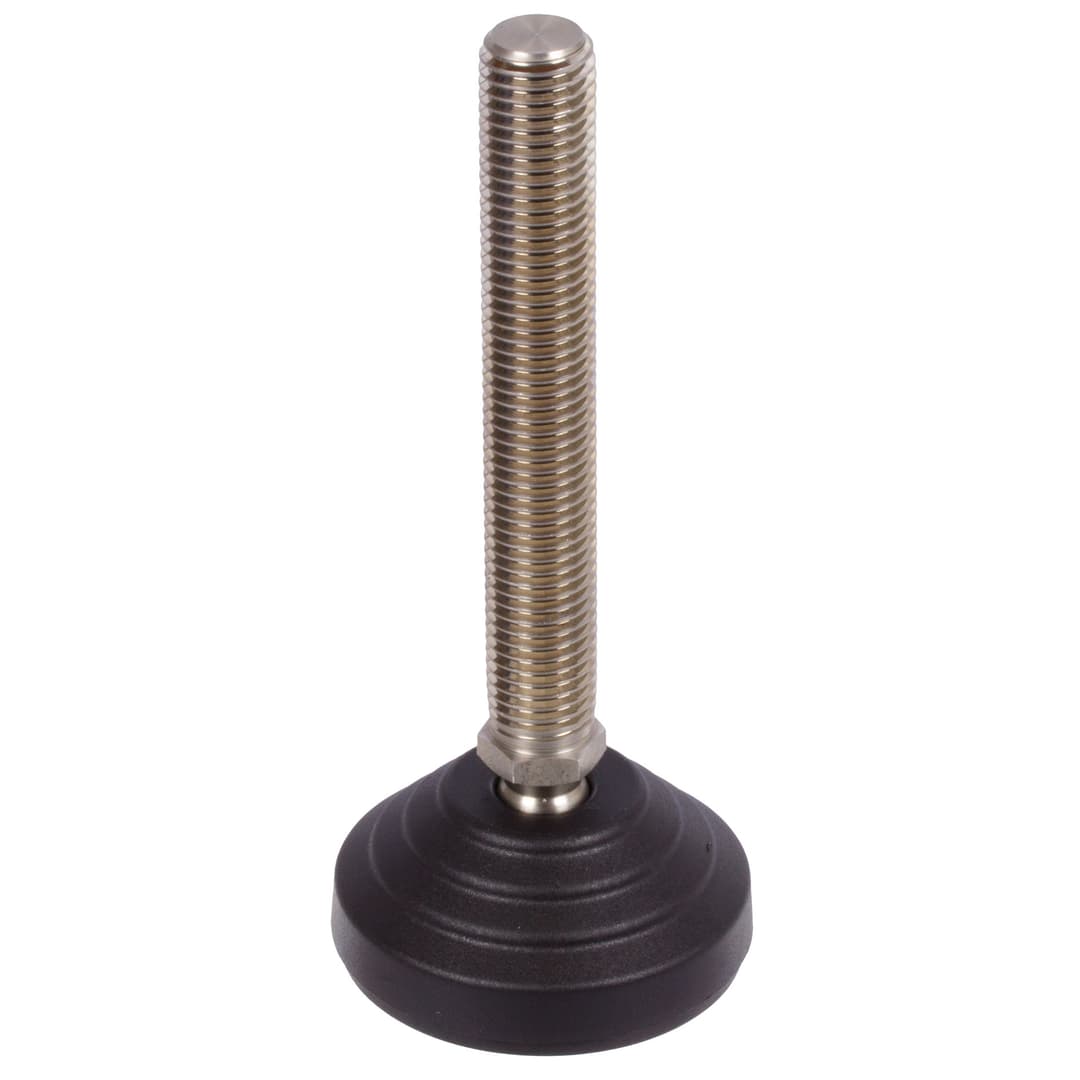

Leveling foot 344.5 type NG M20 x 138mm long foot diameter 100mm bolt made from stainless steel
Manufacturer part no. 65599355
$53.12≈ 46.13 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €46.13 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.23 |
| Total delivered | €73.36 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 480 g |
Other characteristics
| Ball diameter | 24 mm |
| Outer diameter | 100 mm |
| Screw in length | 138 mm |
| Static load | 25 000 N |
| Wrench size | 24 mm |
| Material | Plastic / Stainless steel |
| Shape | NG |
| Surface | Matt finish |
| Thread size | M 20 mm |
Description
Material: Base: plastic (polyamide), glass-fibre reinforced, matt finish black. Bolt: Stainless steel 1.4305 (AISI 303). Rubber pad: NBR (perbunan) 70° Shore hardness, black. Type N: without rubber pad. Type NG: with rubber pad. The feet is slightly stepped. This makes it look good and easy to clean. Due to the use of a high grade plastic material and their shape (ribbed base), that serves to spread the weight over a larger area, the feet have a high load bearing capacity. The rubber pad is fixed to the base with four pins/bores. The rubber pad levels out slightly uneven ground and makes the foot non-slip.
