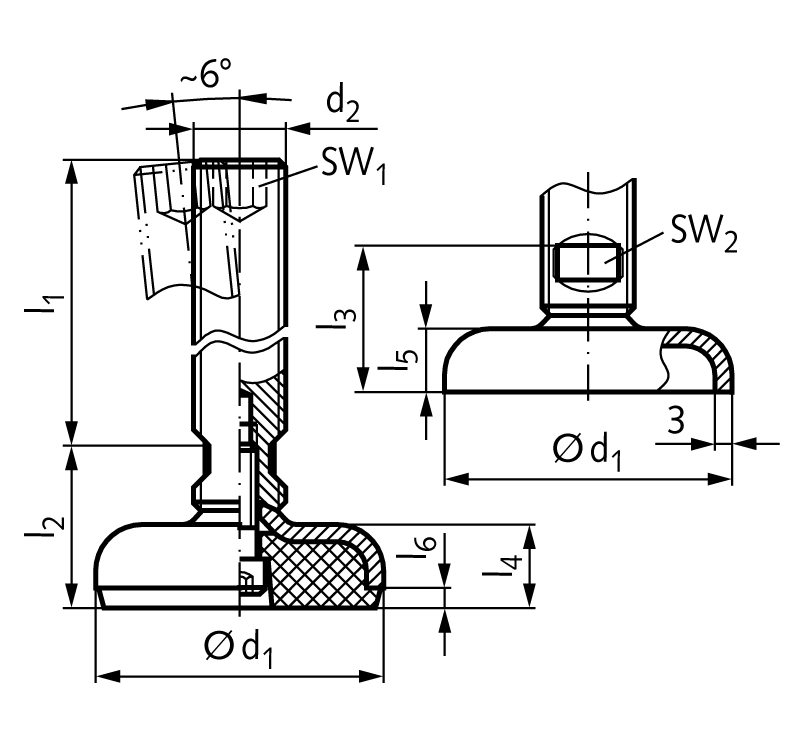

Leveling foot 340.5 type NG M16 x 100mm long foot diameter 60mm stainless steel 1.4301
Manufacturer part no. 65599752
$39.25≈ 34.09 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €34.09 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.82 |
| Total delivered | €58.91 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 300 g |
Other characteristics
| Hexagon socket size | 8 mm |
| Length after mounting | 30 mm |
| Length to incl flattening | 26 mm |
| Plate diameter | 60 mm |
| Plate height | 12 mm |
| Plate height incl rubber pad | 16 mm |
| Rubber pad height | 4 mm |
| Static load | 28 kN |
| Thread length | 100 mm |
| Wrench size | 12 mm |
| Material | Stainless steel |
| Shape | NG |
| Surface | Blank |
| Thread size |
Description
Material: Base: Stainless steel 1.4301 (AISI 304), bolt: Stainless steel 1.4305 (AISI 303). Type NG: with rubber pad from NBR, hardness 80º +/-5º Shore A, black. The bolt can be adjusted either at the hexagon at the upper end or at the spanner flats at the bottom end. With inlayed rubber pad in the steel foot is fixed by a screw.
