MÄDLERMÄDLER· Parts for Operating

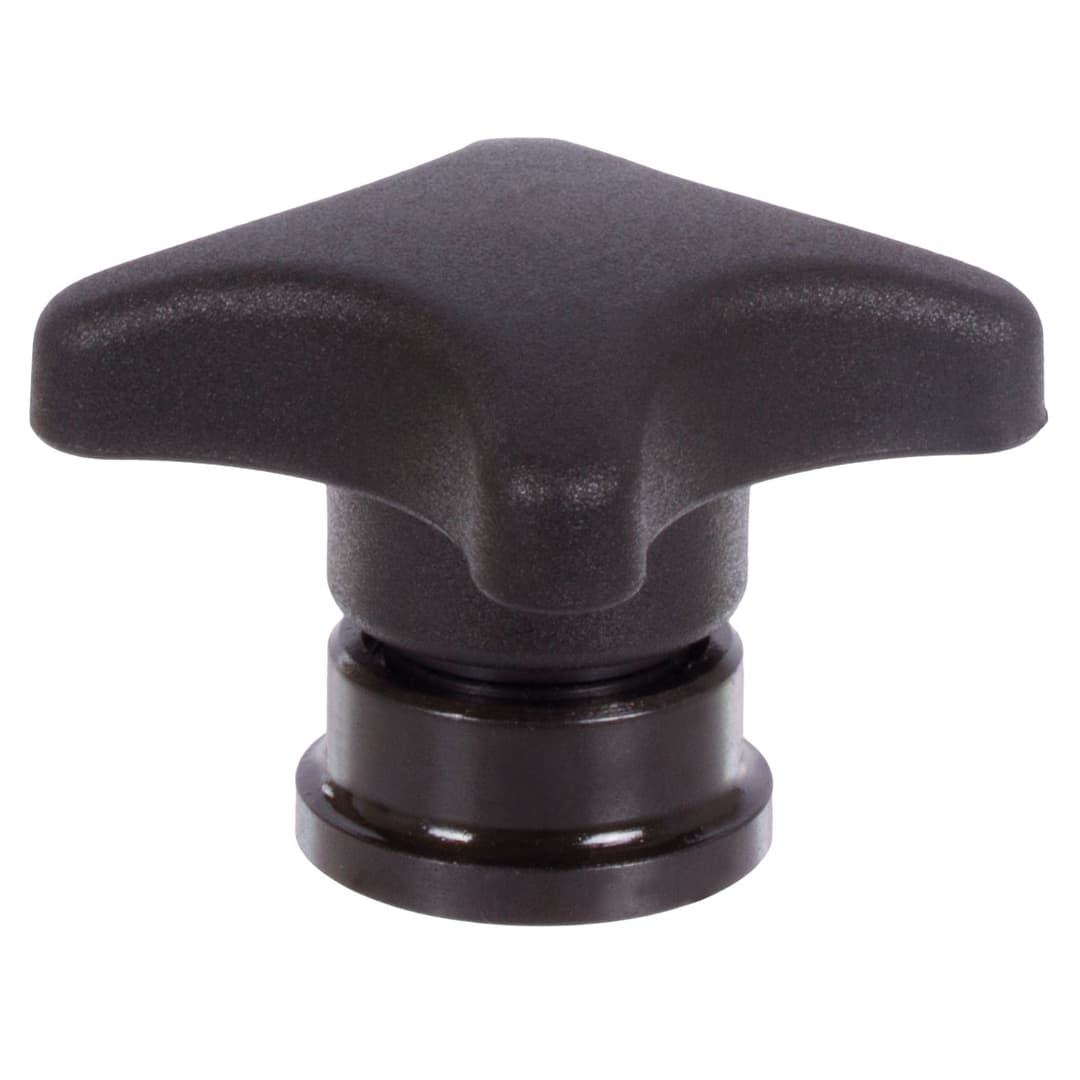

Star knob with axial bearing made from thermoplastic diameter 63
Manufacturer part no. 66066300
$32.63≈ 28.34 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €28.34 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.67 |
| Total delivered | €52.01 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 111 g |
Other characteristics
| Height | 41 mm |
| Outer diameter | 63 mm |
| Material | Polyamide / Tempered steel |
| Surface | Nitrided, blank |
| Thread size | M 10 mm |
Description

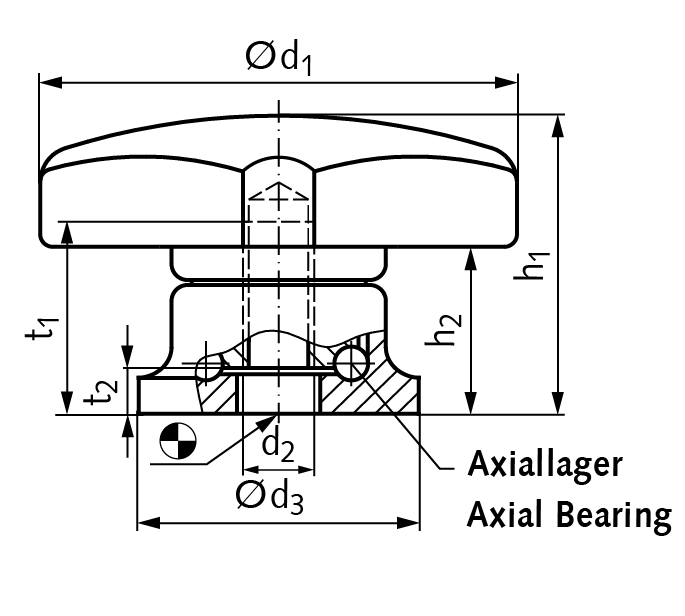

Material: Grip: Thermoplast (PA) Insert: Heat-treated steel nitrided, black oxide finish. The advantages of the axial bearing: -double clamping force with same lever size, by reducing the surface friction. -Less wear on the component due to fixed locating face -Little settling due to higher pre-tensioning force of the bolt or thread.
