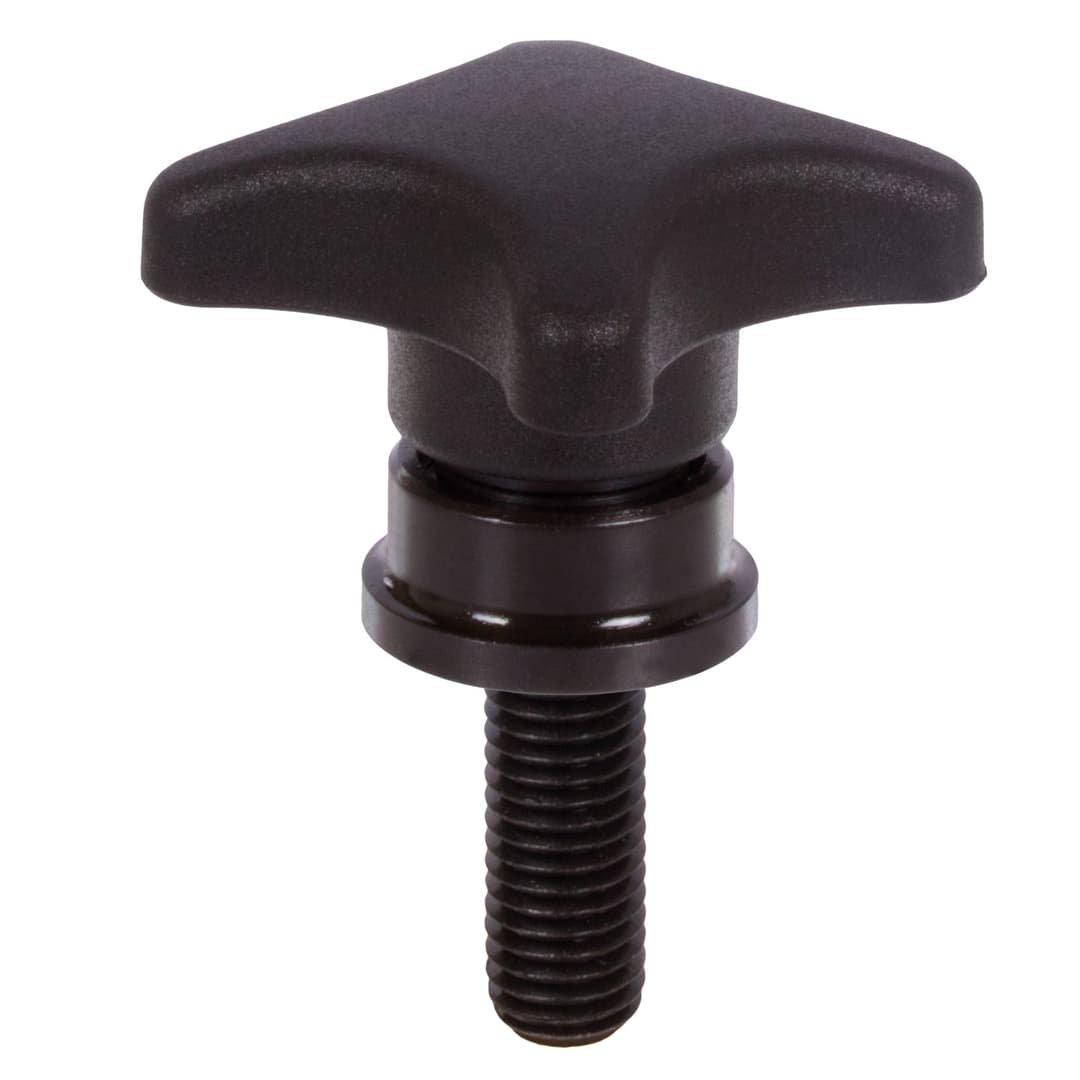

Star knob screw with axial bearing thermoplastic diameter 80mm M12 x 50mm
Manufacturer part no. 66068002
$43.46≈ 37.74 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €37.74 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.55 |
| Total delivered | €63.29 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 276 g |
Other characteristics
| Height | 54 mm |
| Outer diameter | 80 mm |
| Thread length | 50 mm |
| Material | Polyamide (PA6-CF) / Steel |
| Surface | Matt finish / Zinc-plated |
| Thread size | M 12 mm |
Description

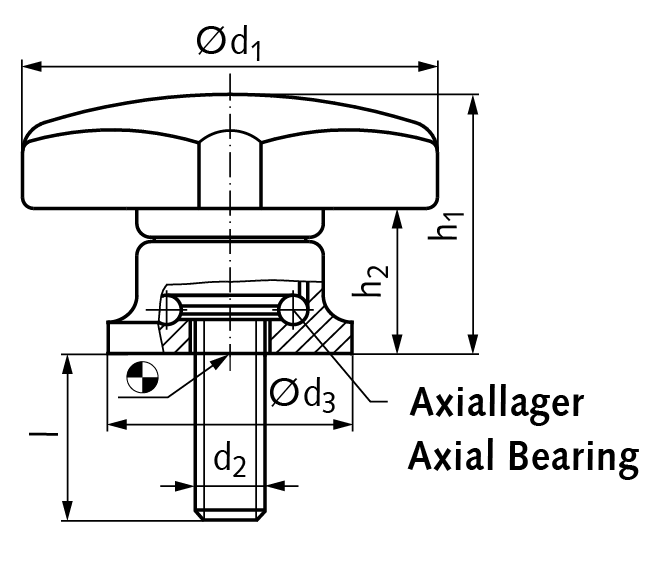

Material: Grip: Thermoplast (PA). Insert: Heat-treated steel nitrided, black oxide finish. Screw: Steel tensile strength 8.8, black oxide finish. The advantages of the axial bearing: • double clamping force with same lever size, by reducing the surface friction. • Less wear on the component due to fixed locating face. • Little settling due to higher pre-tensioning force.
