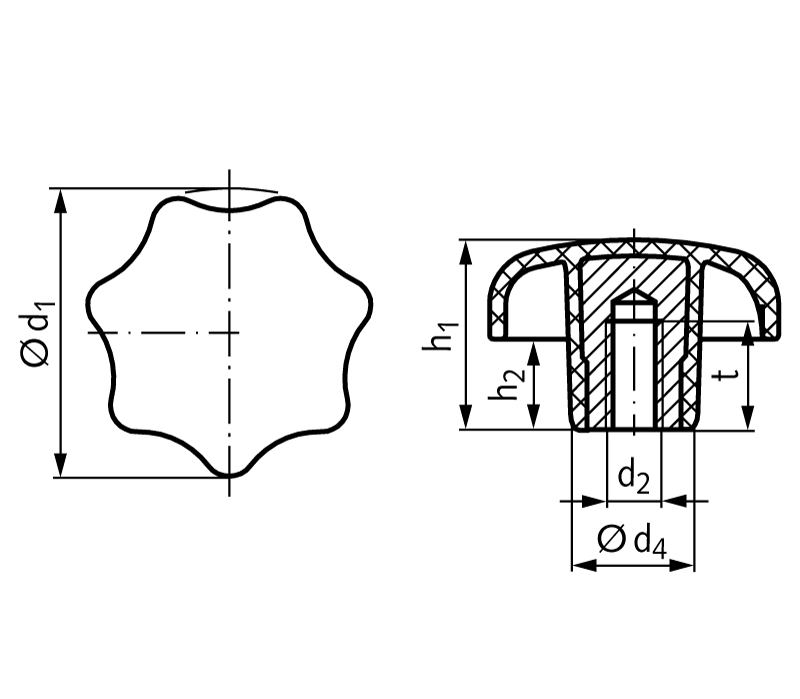

Star knob GV similar DIN 6336 Technopolymer PA6GV ø32 M6
Manufacturer part no. 66143200
$1.56≈ 1.35 €
In stock — 9 unitslead time 14 d
Estimated landed cost
| Item | €1.35 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.27 |
| Total delivered | €19.62 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 12 g |
Other characteristics
| Distance to knob | 10 mm |
| Hub diameter | 14 mm |
| Min length bore thread | 9 mm |
| Outer diameter | 32 mm |
| Total height | 20 mm |
| Inner thread size | M 6 mm |
| Material | Polyamide (PA6-CF) / Steel |
| Surface | Matt finish / Zinc-plated |
Description
Material: Thermoplast Polyamide PA6 GV, glass-fibre reinforced, impact resistant, black matt. Bush: Steel, zinc-plated, chromated blue. Version E = with tapped blind hole d2.
