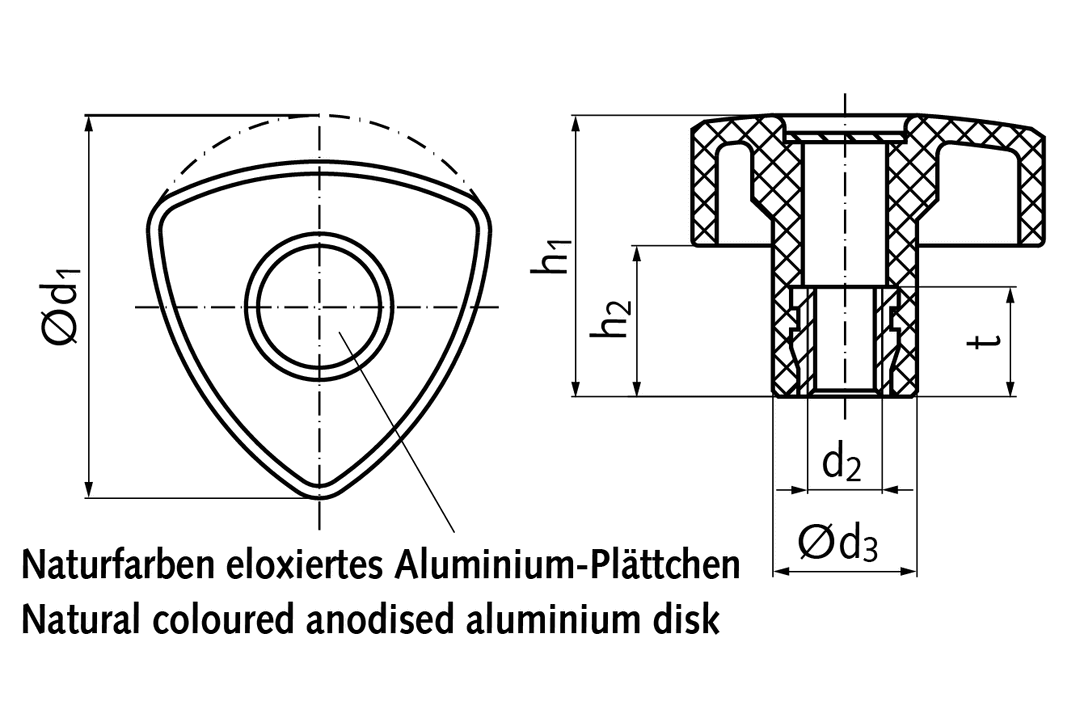

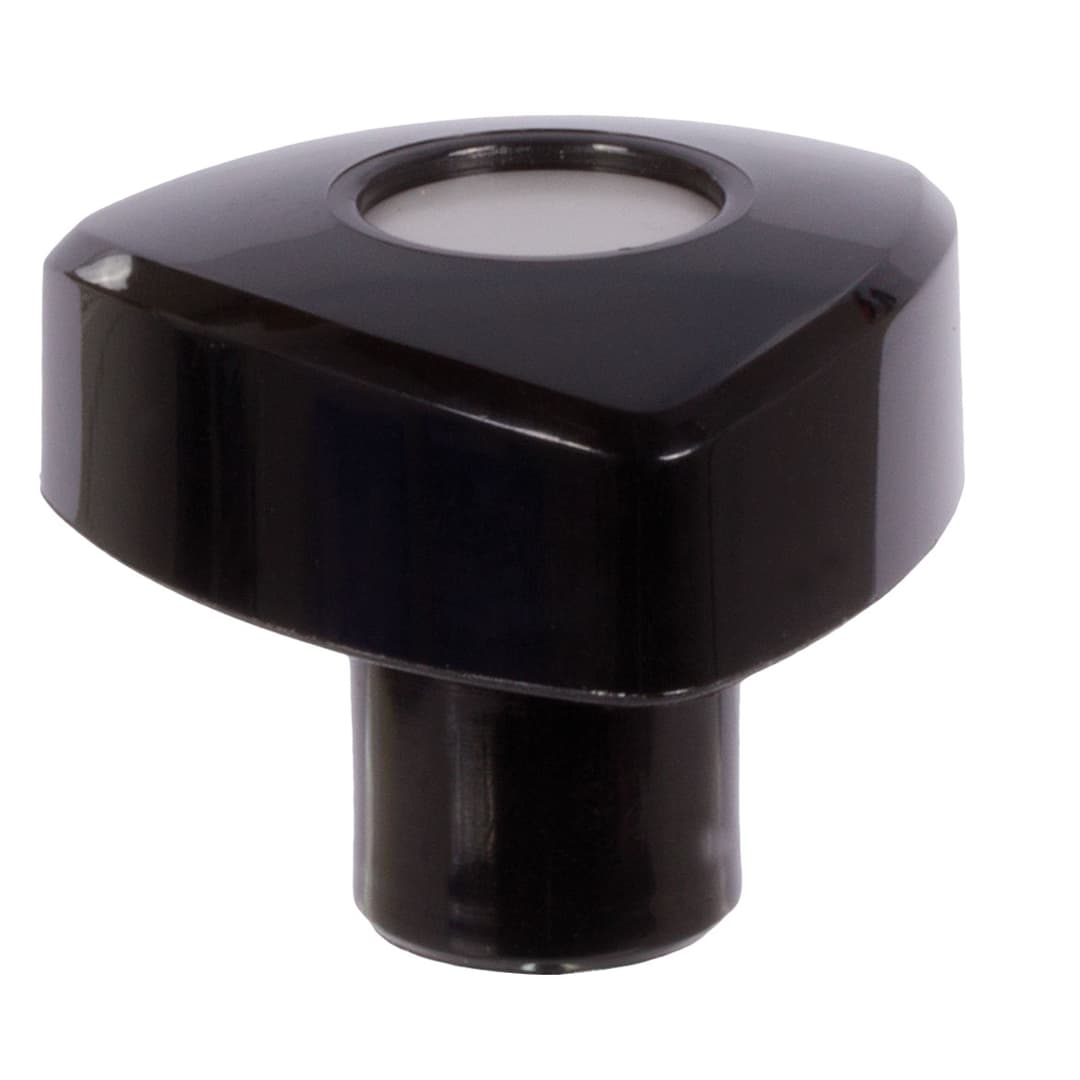

Triangular knob made from thermoplast d1 = 32mm internal thread M5
Manufacturer part no. 66163211
$4.65≈ 4.04 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €4.04 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.81 |
| Total delivered | €22.85 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 7 g |
Other characteristics
| Distance to knob | 16 mm |
| Hub diameter | 14 mm |
| Min length bore thread | 10 mm |
| Outer diameter | 32 mm |
| Total height | 26 mm |
| Inner thread size | M 5 mm |
| Material | Polyamide / Brass |
| Surface | Blank |
Description
Material: Thermoplast (Polyamide PA), black glossy finish. Brass bush. The special form is very elegant and easy to grip.
