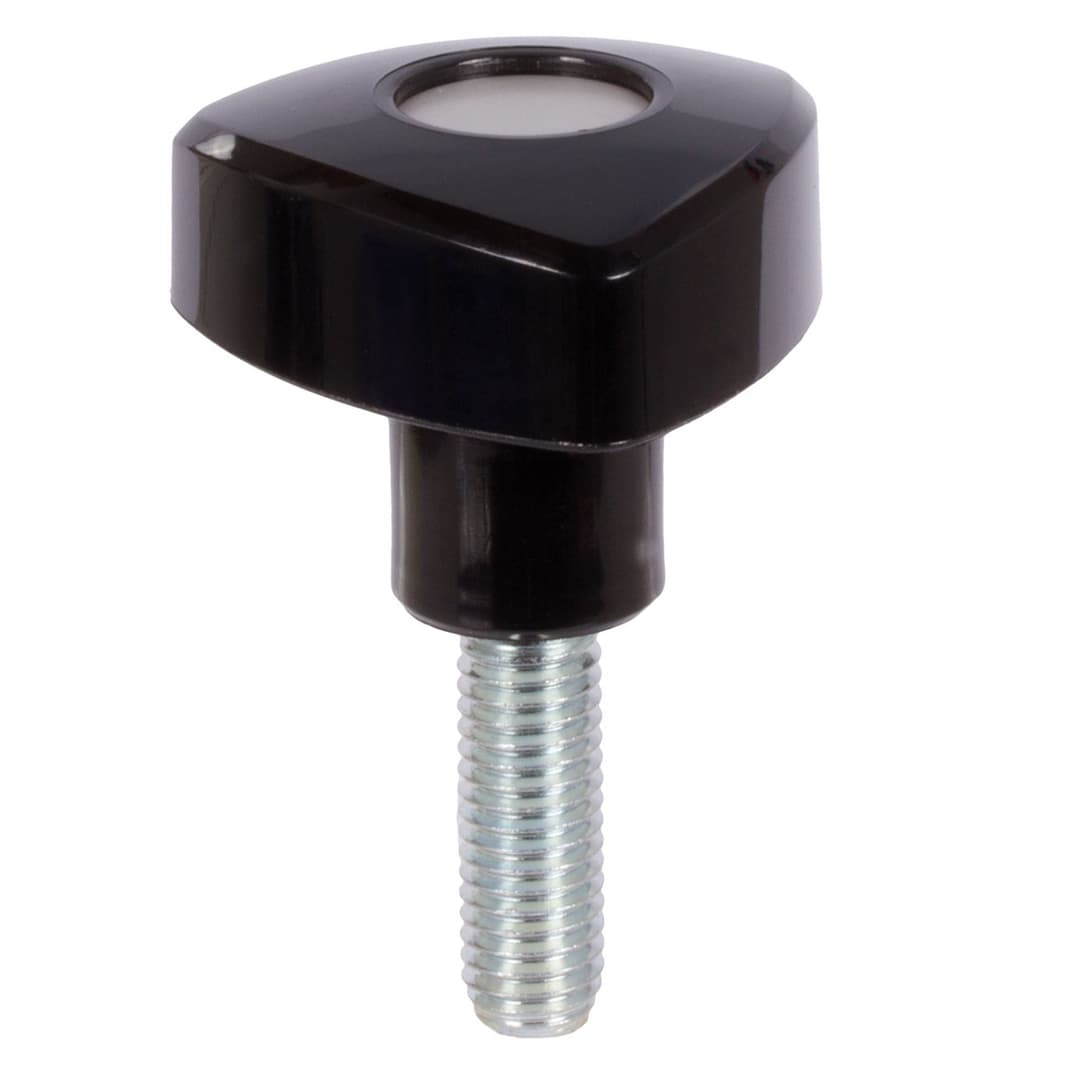

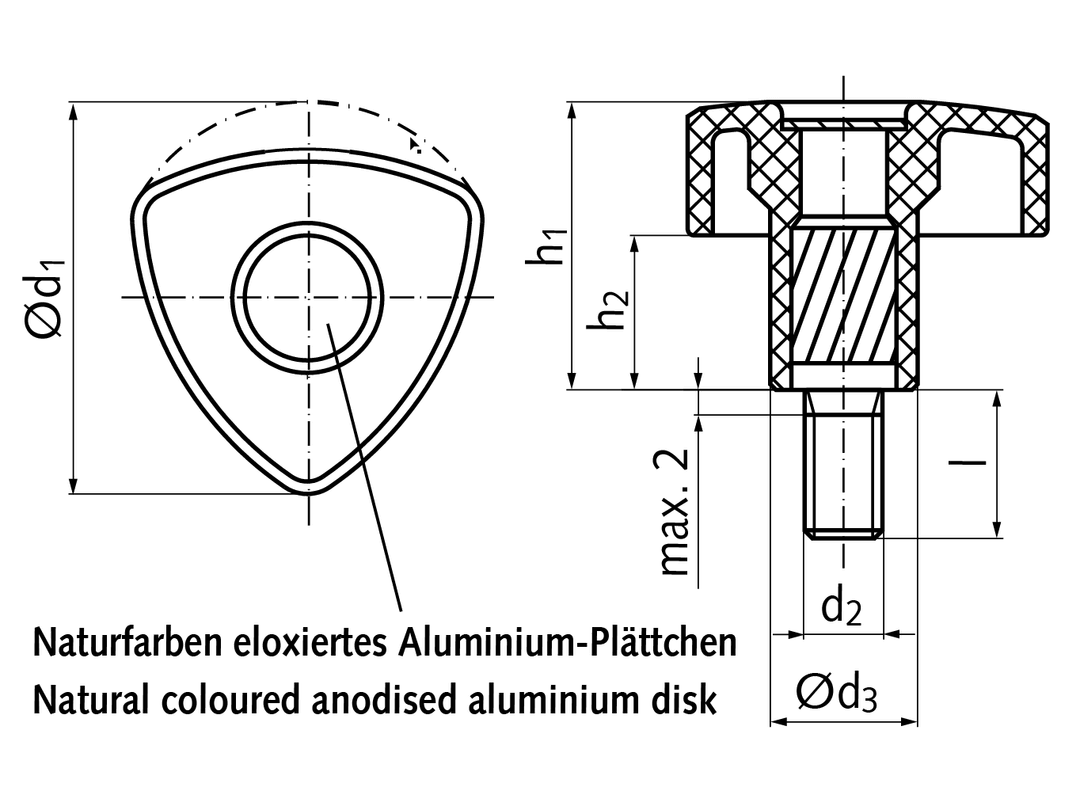

Triangular knob screw made from thermoplast d1 = 50mm external thread M8 x 50mm
Manufacturer part no. 66165015
$7.80≈ 6.77 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €6.77 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.35 |
| Total delivered | €26.12 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 37 g |
Other characteristics
| Distance to knob | 19 mm |
| Height | 35 mm |
| Hub diameter | 19 mm |
| Outer diameter | 50 mm |
| Screw in length | 50 mm |
| Material | Polyamide (PA) / Steel |
| Surface | Glossy finish / Zinc-plated |
| Thread size | M 8 mm |
Description
Material: Thermoplast (Polyamide PA), black glossy finish. Grub screw, zinc-plated steel, chromated. The special form is very elegant and easy to grip.
