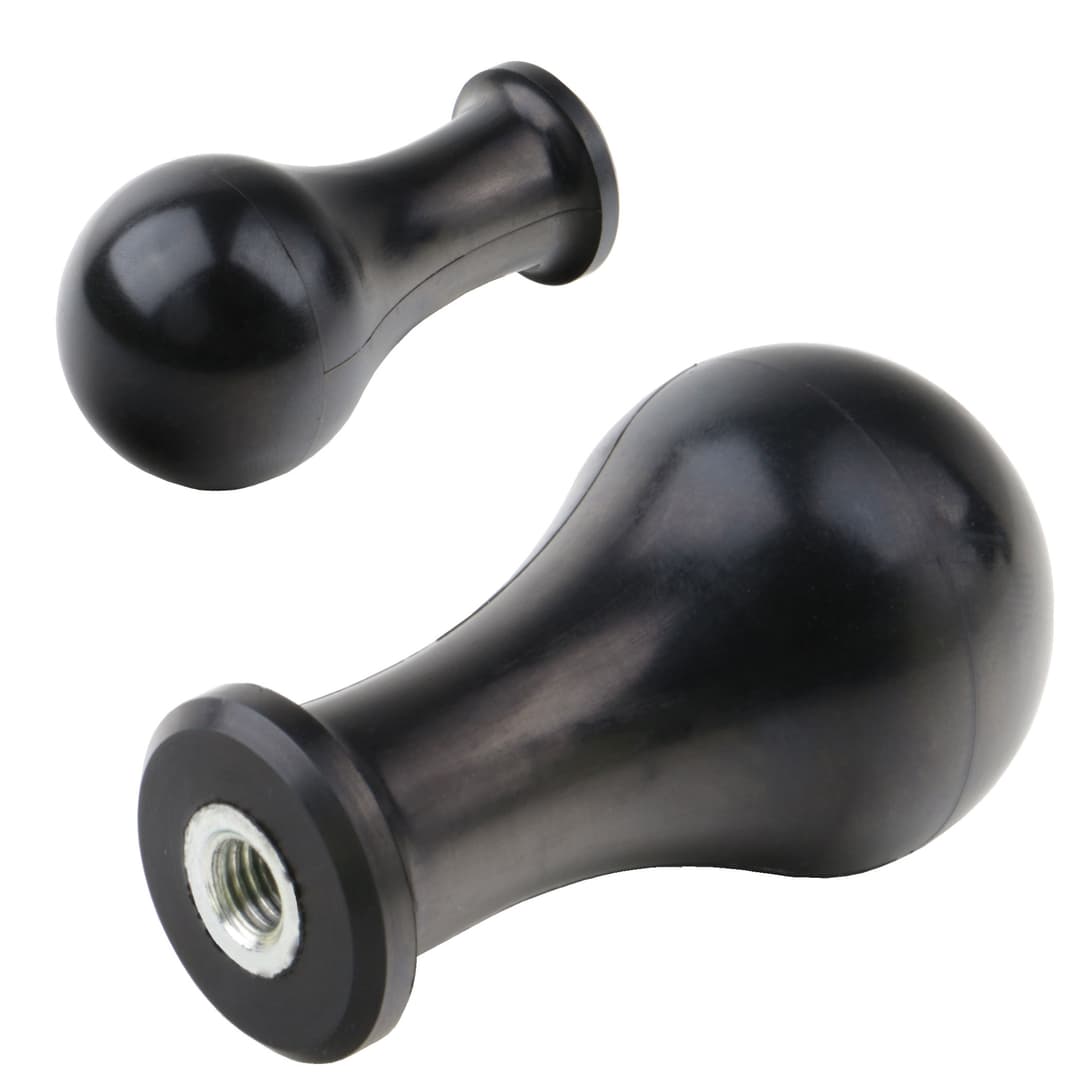

Handle GT type S silicone insert M8 stainless steel 1.4301
Manufacturer part no. 66240008
$10.16≈ 8.82 €
In stock — 30 unitslead time 14 d
Estimated landed cost
| Item | €8.82 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.76 |
| Total delivered | €28.58 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 98 g |
Other characteristics

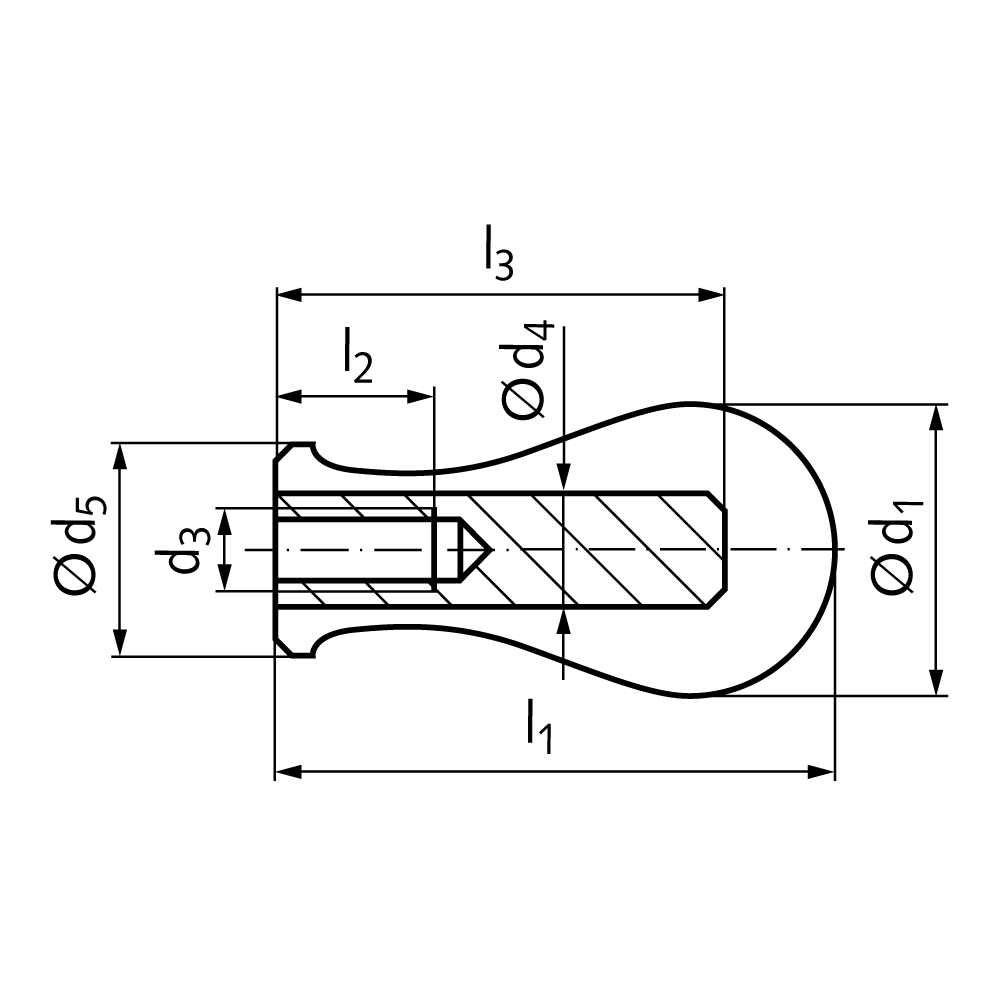

| Handle diameter | 38 mm |
| Length of handle | 73.5 mm |
| Inner thread size | M 8 mm |
| Material | Silicone / Stainless steel |
| Surface | Blank |
Description
Material Type S: Elastomer silicone, black, hardness 70º +/-5º Shore A. Metall part stainless steel 1.4301 (AISI 304). Material Type N: Elastomer NBR, black, hardness 75º +/-5º Shore A. Metall part steel zinc-plated. Versatile handle. Long shape with big ball-end, easy and safe to grip, also with thick gloves. On choice from silicone for food machines / household sector or from oil-resistant NBR for general use in mechanical engineering. Temperature range type S: -55°C to +225ºC. Temperature range type N: -10°C to +100ºC.
