MÄDLERMÄDLER· Parts for Operating

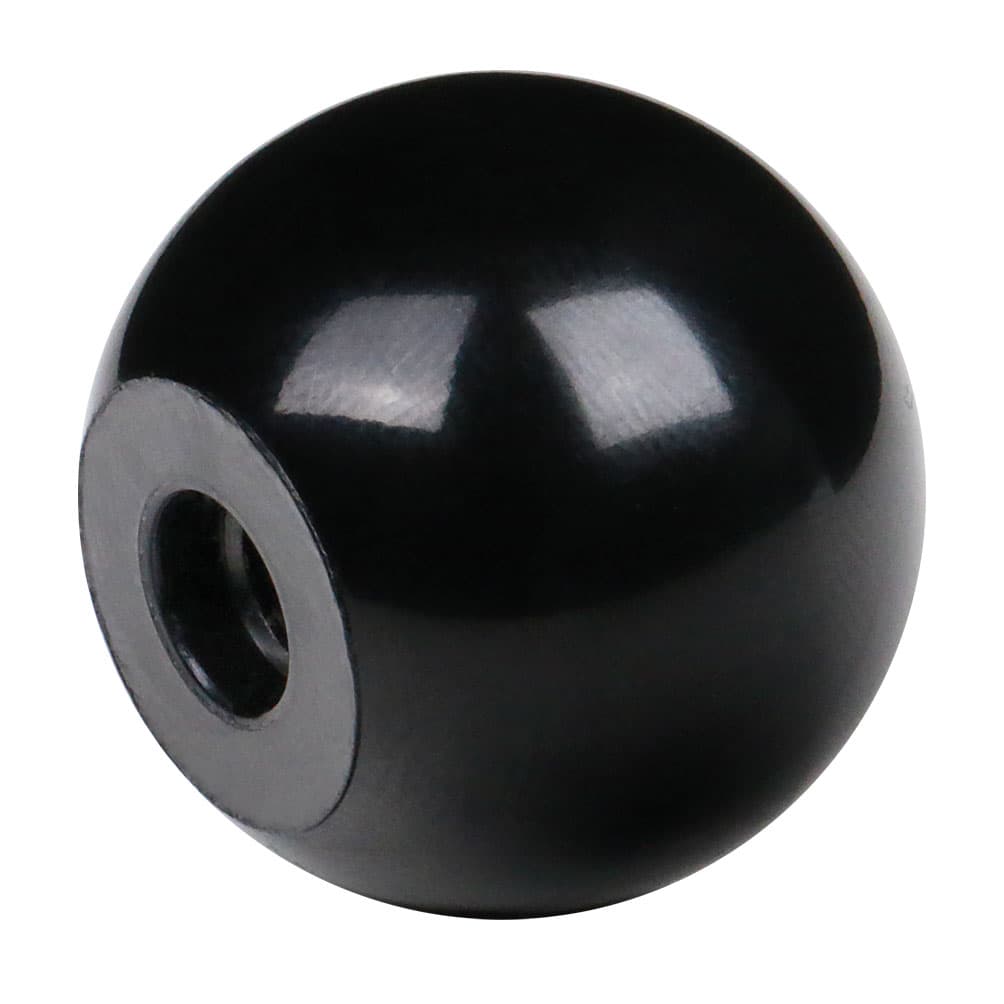

Ball knob DIN 319 version C duroplast PF31 with compression-moulded thread diameter 20mm M5
Manufacturer part no. 66402000
$1.21≈ 1.05 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €1.05 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.21 |
| Total delivered | €19.26 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

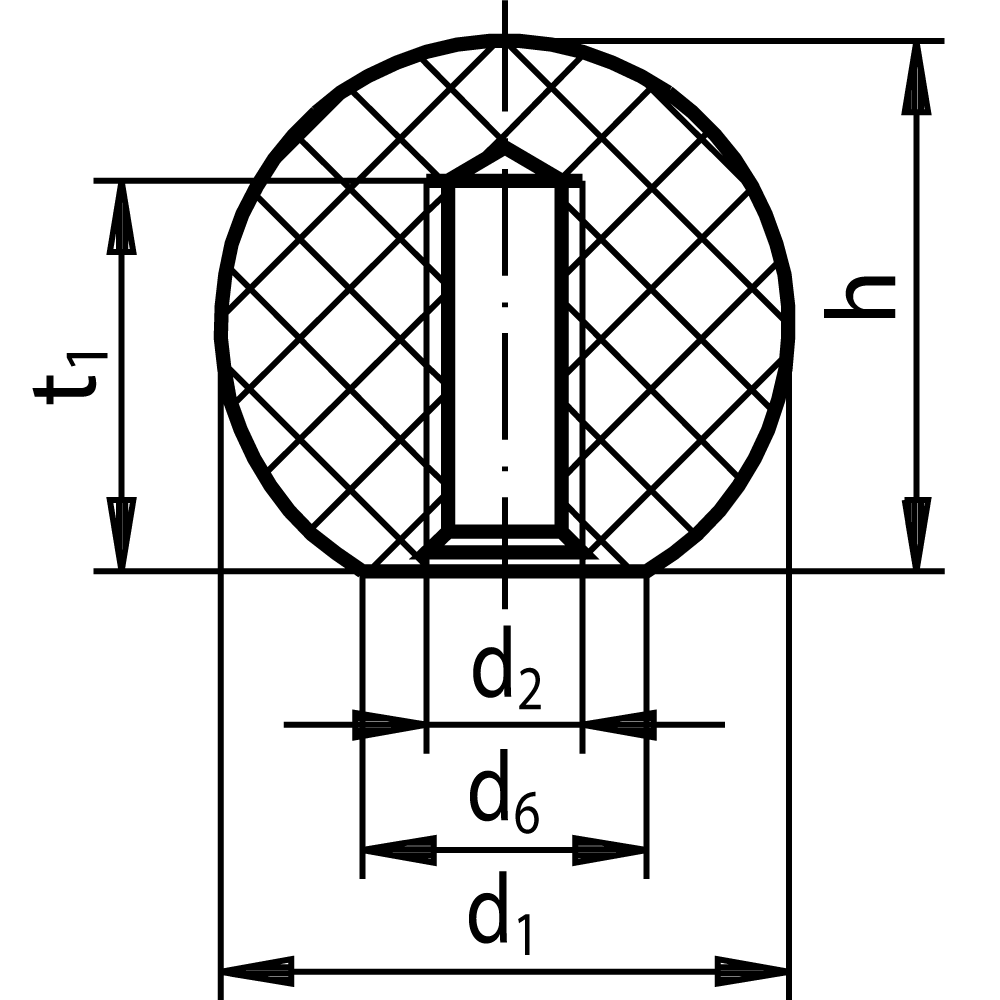

Specifications (automatically extracted)
Mechanical
| Weight | 5.2 g |
Other characteristics
| Ball knob diameter | 20 mm |
| Diameter of support surface | 12 mm |
| Height | 18 mm |
| Thread depth | 7.5 mm |
| Inner thread size | M 5 mm |
| Material | Plastic (PF 31) |
| Surface | Black. polished |
Description
Material PF31: Duroplatic PF31 (phenolic resin), impact resistant, black, high-gloss finish. Version C = With compression-moulded thread. Size 45/M10 is not part of the DIN 319.
