MÄDLERMÄDLER· Parts for Operating

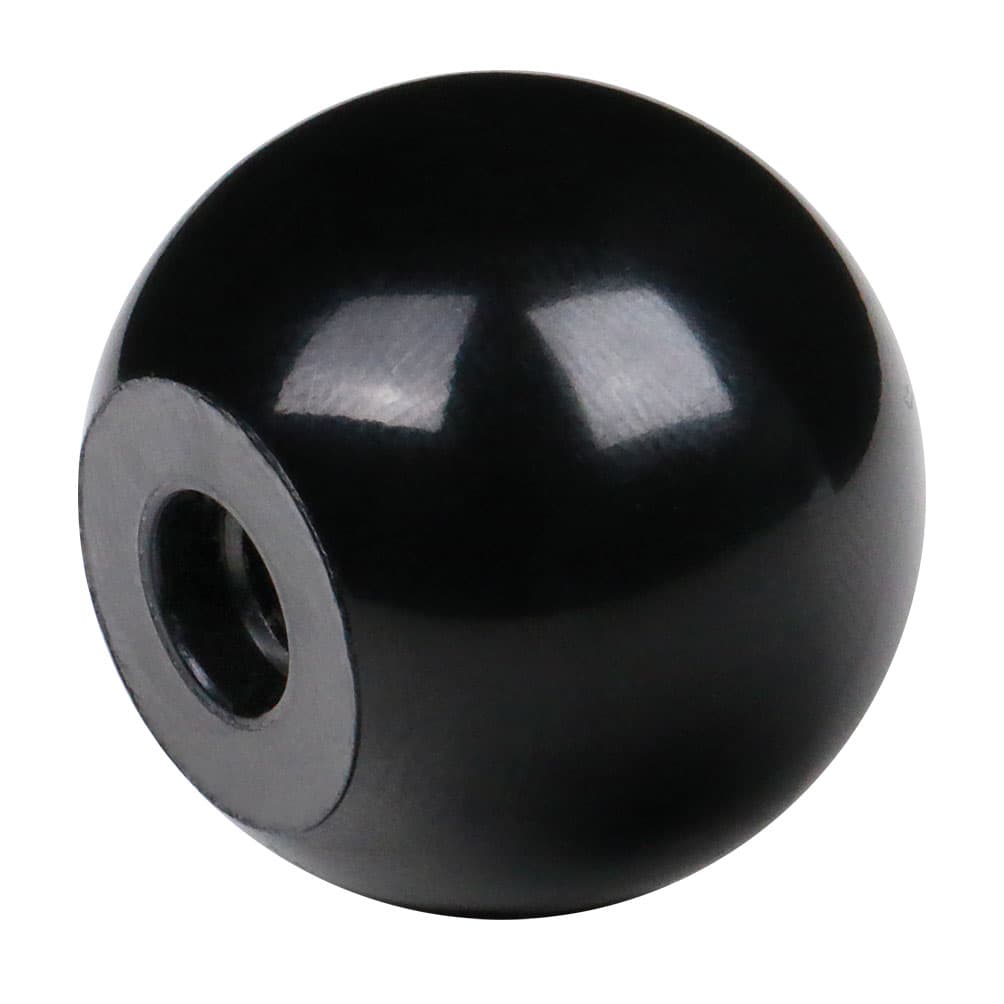

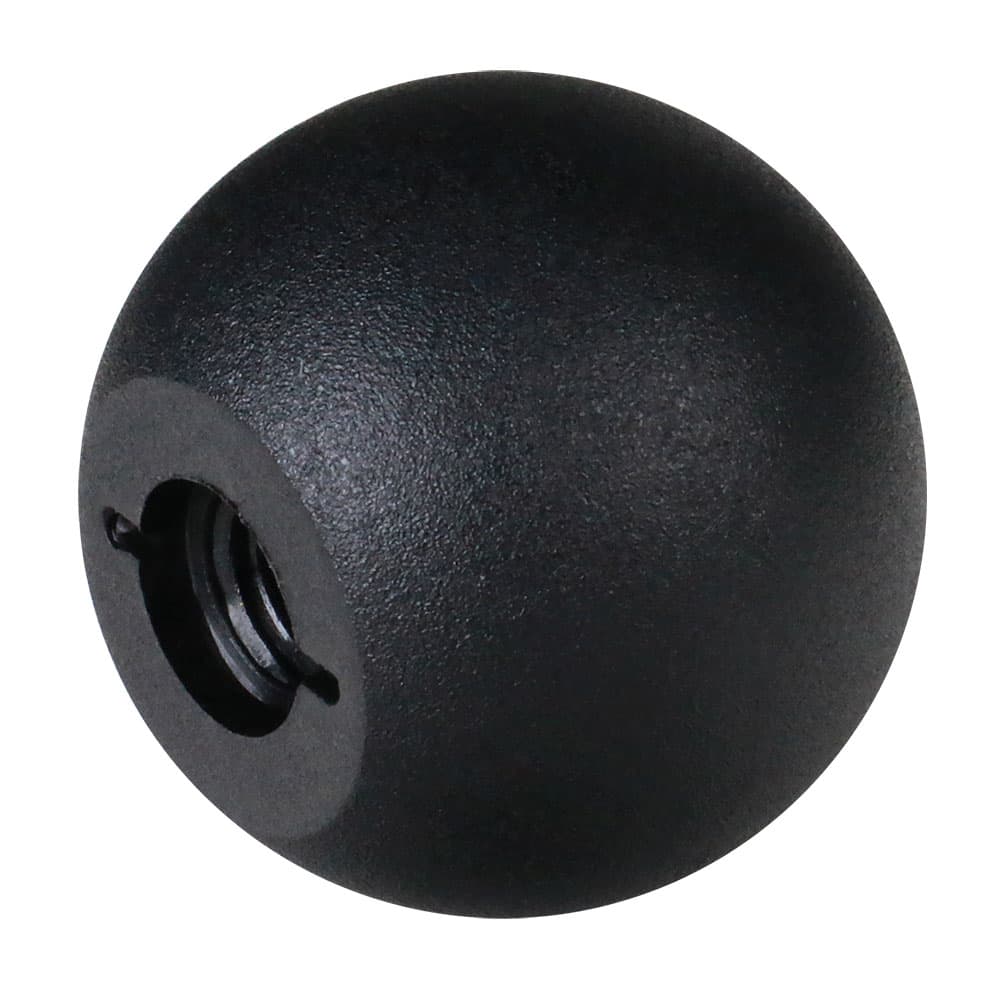

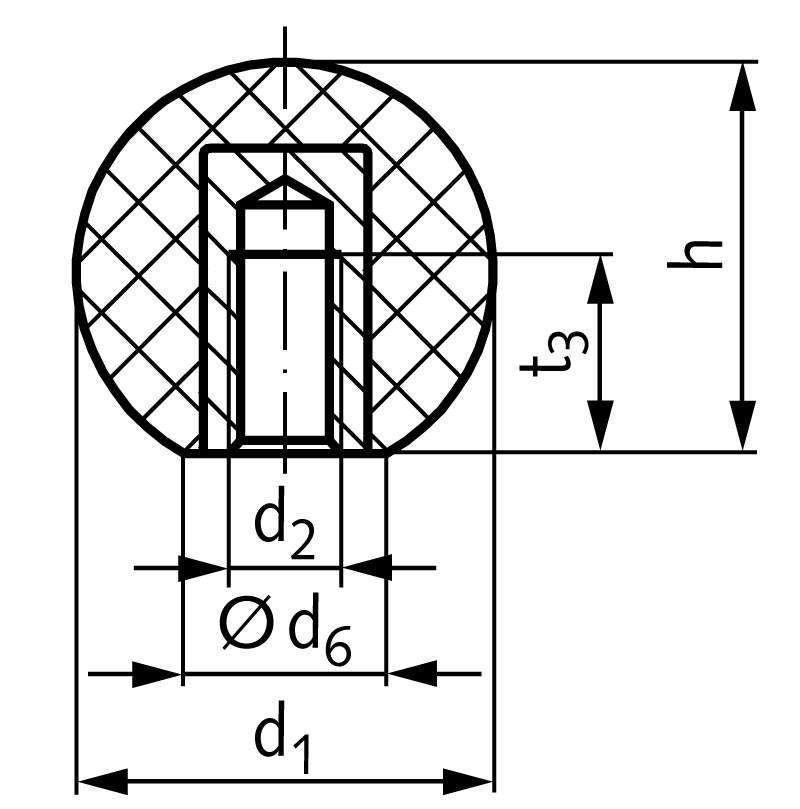

Ball knob ähnlich DIN 319 version E rubber NBR with threaded bush from steel diameter 16mm M4
Manufacturer part no. 66451604
$2.74≈ 2.38 €
In stock — 8 unitslead time 14 d
Estimated landed cost
| Item | €2.38 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.48 |
| Total delivered | €20.86 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 4 g |
Other characteristics
| Ball knob diameter | 16 mm |
| Diameter of support surface | 8 mm |
| Height | 15 mm |
| Thread depth | 6 mm |
| Inner thread size | M 4 mm |
| Material | NBR / Steel |
| Surface | Zinc-plated |
Description
Material: Elastomer NBR, black, hardness 75º +/-5º Shore A. Metall part steel zinc-plated. Version E = With threaded bush of zinc-plated steel. Versatile, vibration damping knob, from oil-resistant NBR. Temperature range: -10°C to +100ºC.
