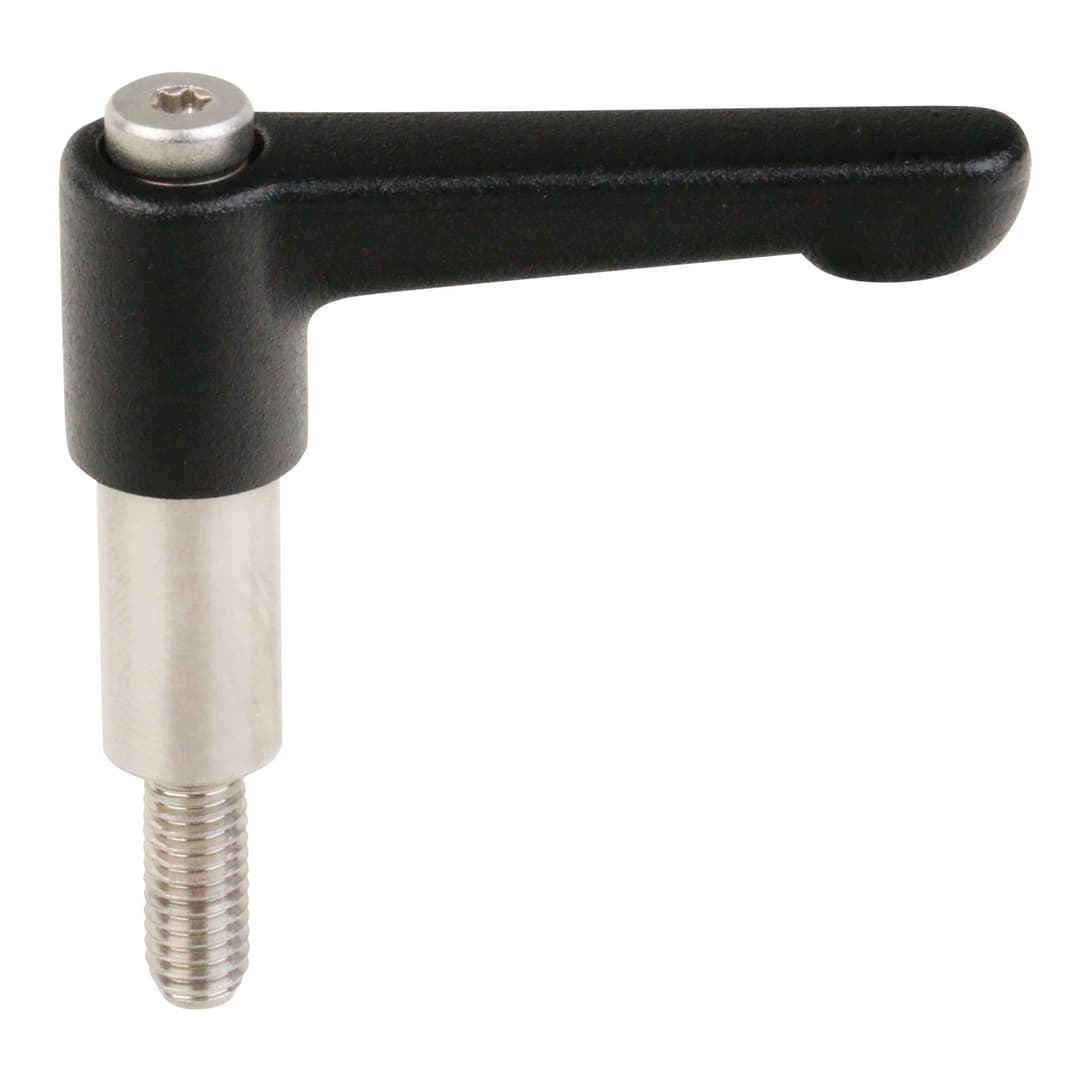

Adjustable clamping lever type K lever length 45 mm shaft length 16 mm external thread M5 x 16mm
Manufacturer part no. 66578516
$13.77≈ 11.92 €
Price summary
Listed by MÄDLER at €11.92. Delivered to France, including shipping, VAT and any customs duty, it comes to about €32.30. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €11.92 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.38 |
| Total delivered | €32.30 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 40 g |

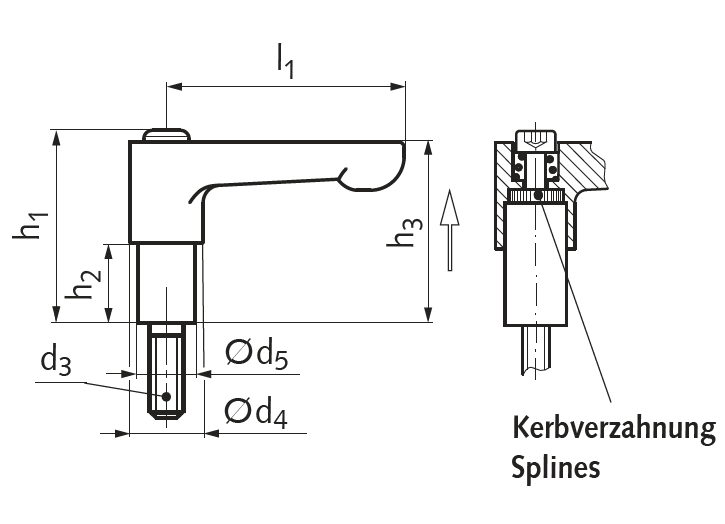

Other characteristics
| D4 | 13 mm |
| D5 | 8.7 mm |
| H1 | 36.5 mm |
| H2 | 16 mm |
| H3 | 34 mm |
| L1 | 45 mm |
| D3 | M5 x 16 |
Description
Material: Handle: Zinc die-cast, plastic coated black RAL 9005, texture finish. Screw with shaft: Stainless steel 1.4305 (AISI 303). These clamp levers with external thread and long shaft d5 x h2 may replace allen screws DIN 912 (ISO 4762) at many applications, for example at clamp collars. To be used preferably when the clamping range is limited or if a specific clamping position is required. By lifting the handle, the serrations are disengaged. Now the handle can be turned into the best direction, for tightening, for remaining or loosening. When the lever is released, the serration re-engages automatically. Temperature resistant up to +90°C.
