Arch handle shape A 160mm M6
Manufacturer part no. 66684400
$23.84≈ 20.63 €
Price summary
Listed by MÄDLER at €20.63. Delivered to France, including shipping, VAT and any customs duty, it comes to about €42.76. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €20.63 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.13 |
| Total delivered | €42.76 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 106 g |
Other characteristics
| Handle diameter | 13 mm |
| Handle width | 20 mm |
| Min length bore thread | 8.5 mm |
| Mounting hole center distance | 160 mm |
| Total height | 51 mm |
| Total length | 185 mm |
| Inner thread size at shape a | M 6 mm |
| Material | Aluminum |
| Shape | A |
| Surface | Anodised |
| Type | EL |
Description

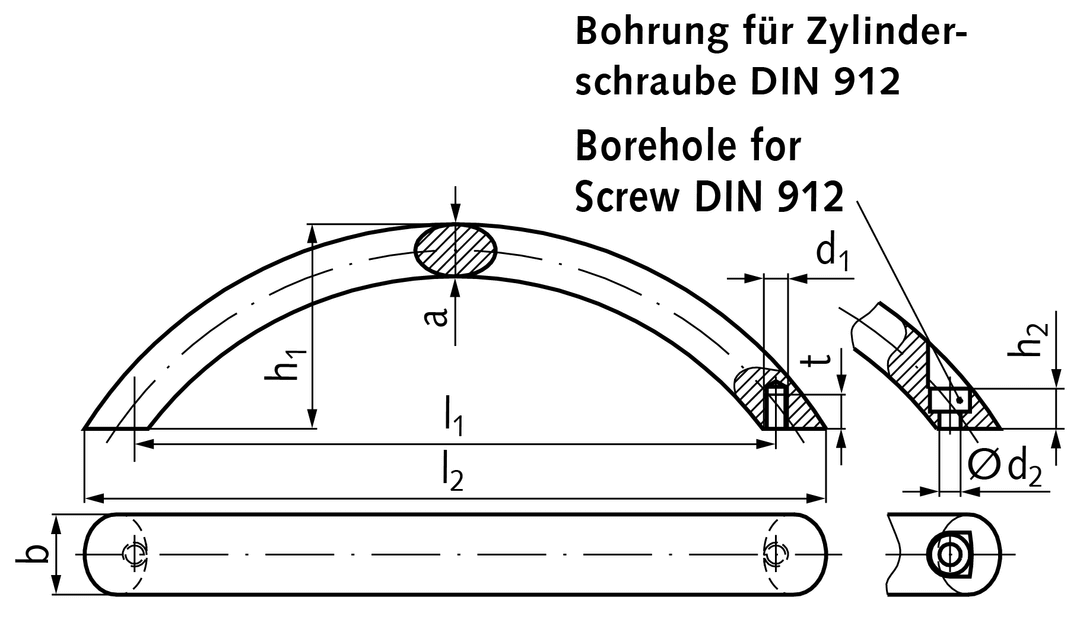

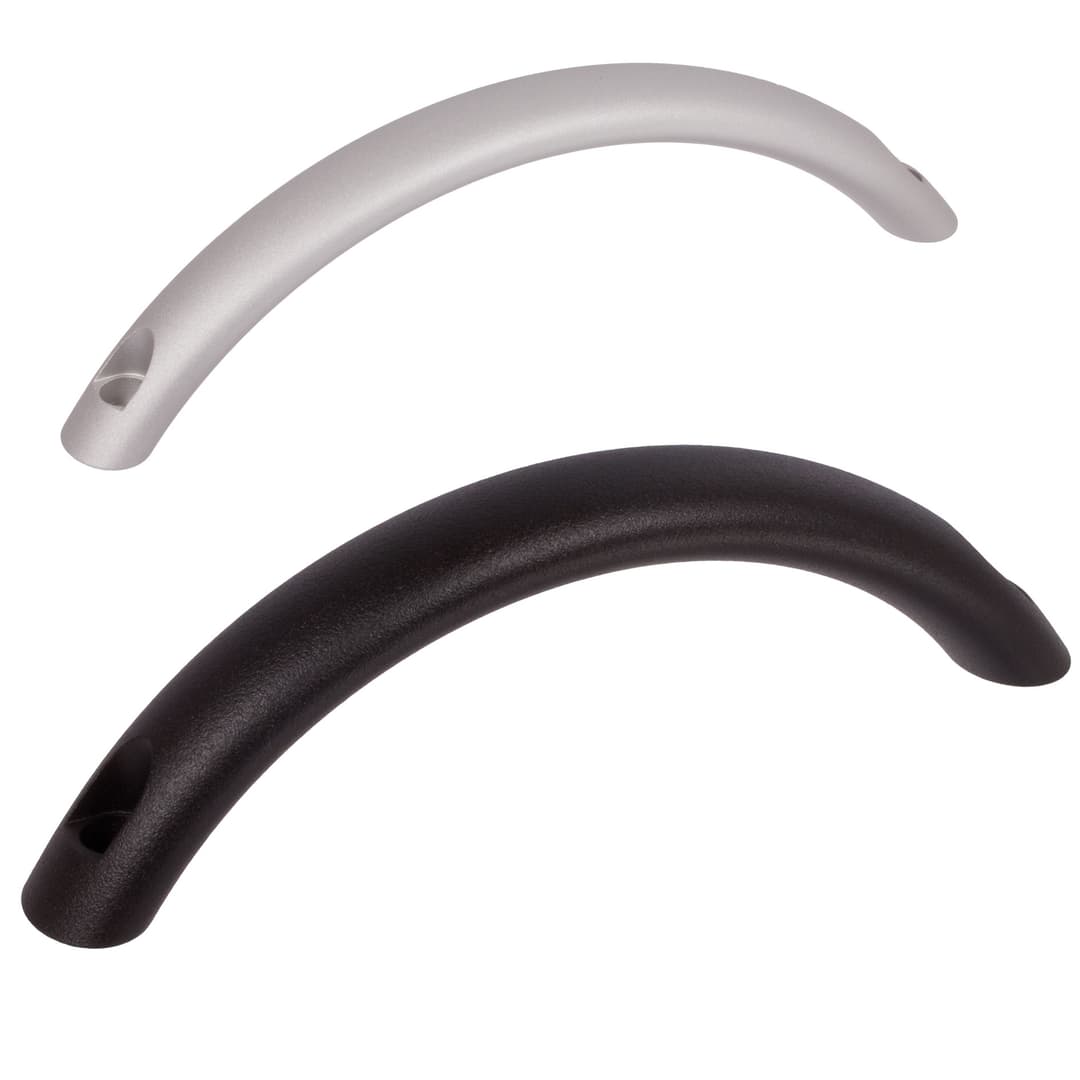

Material: Aluminium, natural colour, anodized or plastic coated in matt black finish. These arched handles are noted for their elegant design. The well-proven elliptical profile has been used again. Shape A: Mounting from the back. Shape B: Mounting from the operating side. Version SW: Black plastic coated (RAL 9005). Version EL: Natural colour, anodized.
