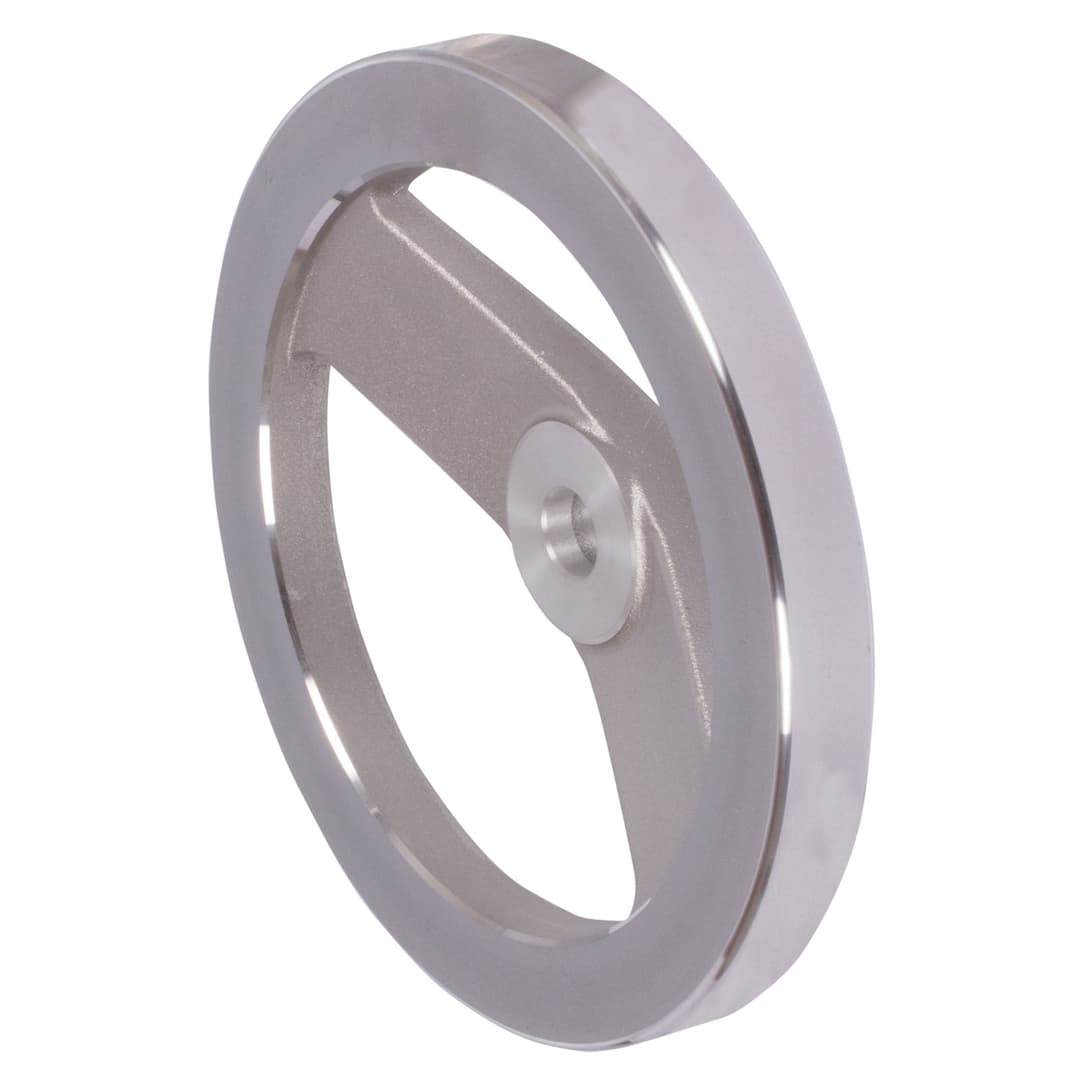

Spoked handwheel 320 version B/A without handle diameter 160mm
Manufacturer part no. 67070500
$64.85≈ 56.13 €
Price summary
Listed by MÄDLER at €56.13. Delivered to France, including shipping, VAT and any customs duty, it comes to about €85.36. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €56.13 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €14.23 |
| Total delivered | €85.36 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

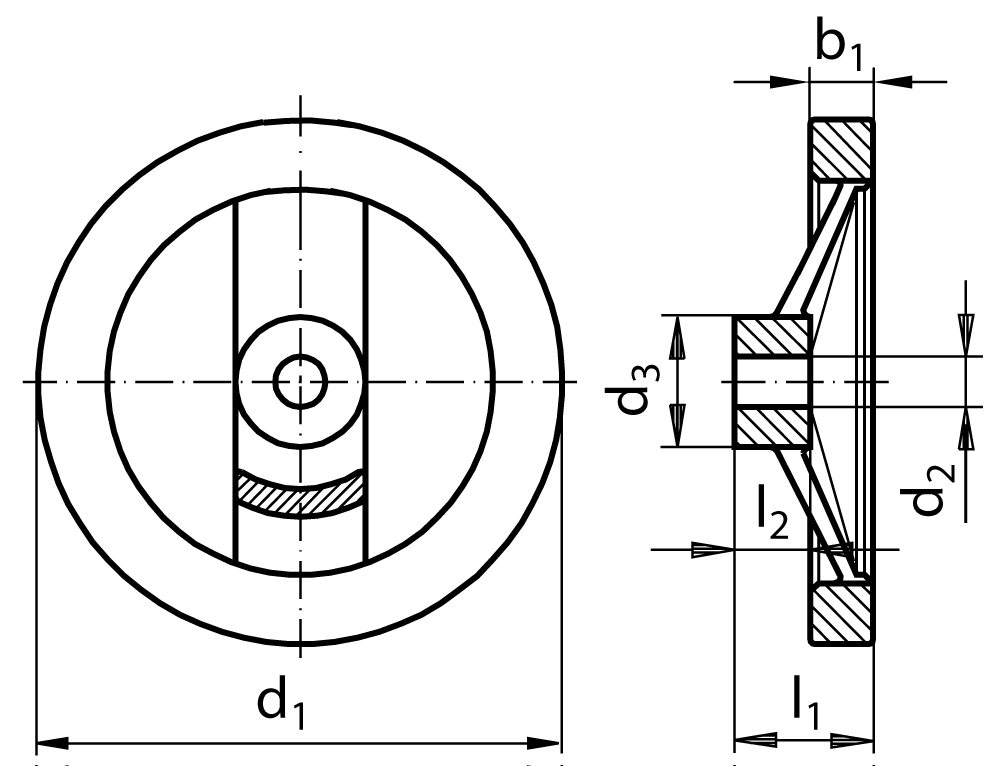

Specifications (automatically extracted)
Mechanical
| Weight | 539 g |
Other characteristics
| Bore diameter | 14 mm |
| Hub diameter | 36 mm |
| Hub length | 20 mm |
| Outer diameter | 160 mm |
| Total length of wheel | 39 mm |
| Wheel width | 18 mm |
| Material | Aluminum |
| Surface | Polished |
| Version | B/A |
Description
Material: Aluminium, gravity die-cast. Hub machined, rim of wheel turned and polished all over. Hub length and bore diameter according to DIN 950. Version B/A: Without keyway, without handle. Version N/A: With keyway DIN 6885-1, without handle.
