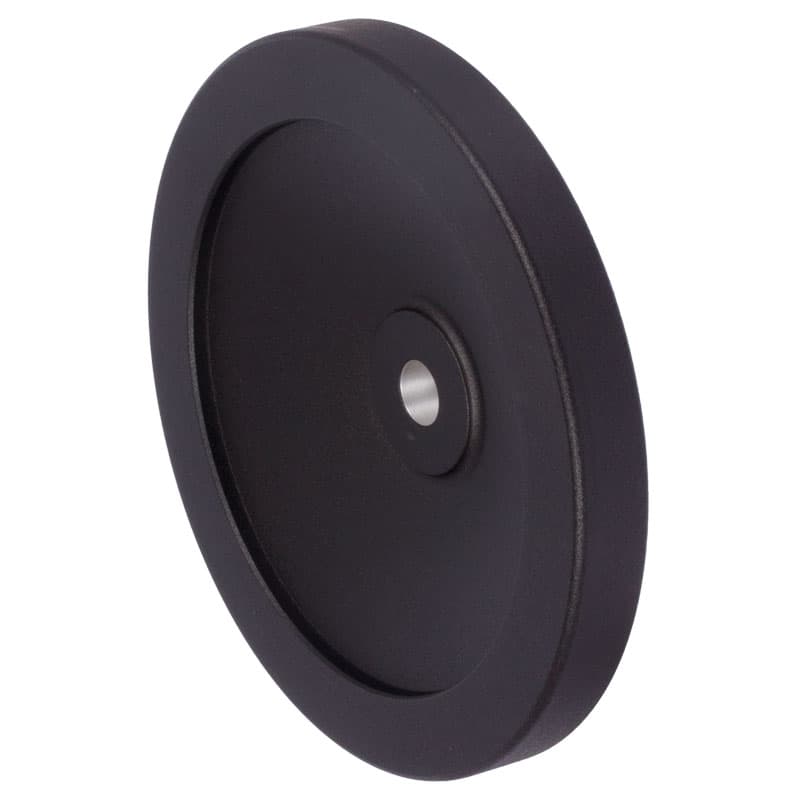

Solid-Disk handwheel 323 version B/A without handle diameter 80mm
Manufacturer part no. 67090100
$29.44≈ 25.57 €
Price summary
Listed by MÄDLER at €25.57. Delivered to France, including shipping, VAT and any customs duty, it comes to about €48.68. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €25.57 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.11 |
| Total delivered | €48.68 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

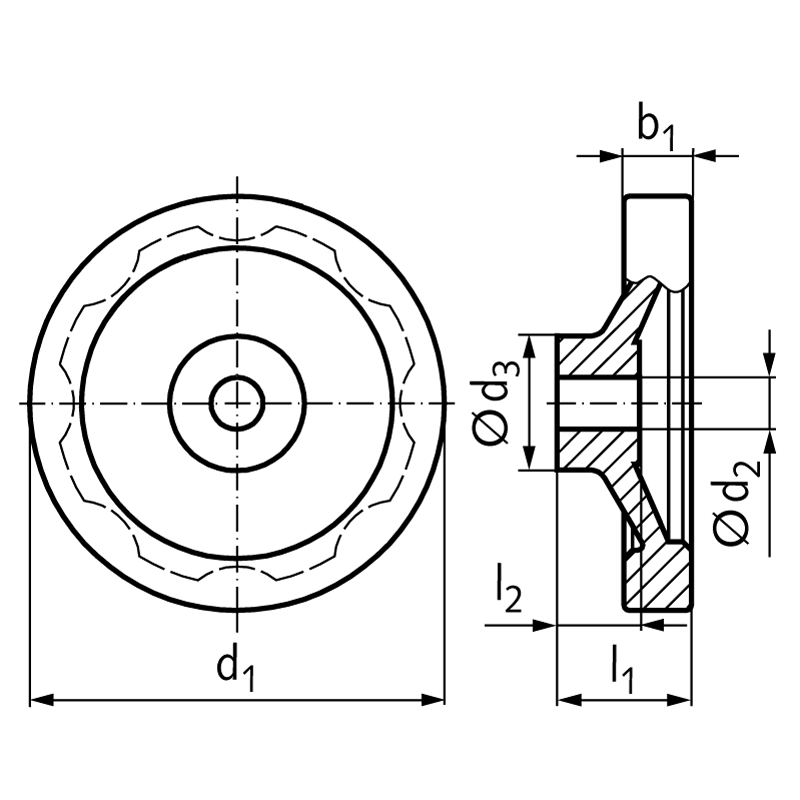

Specifications (automatically extracted)
Mechanical
| Weight | 140 g |
Other characteristics
| Bore | 10 mm |
| Hub diameter | 26 mm |
| Hub length | 16 mm |
| Outer diameter | 80 mm |
| Total length of wheel | 26 mm |
| Wheel width | 13 mm |
| Material | Aluminum |
| Surface | Plastic coated, matt finish |
| Version | B/A |
Description
Material: Aluminium gravity die-cast, plastic coated, black, textured finish. Hub machined. Rim turned on all sides. The rim is machined before coating, thus it is perfectly concentric. Version B/A: without keyway. Keyway available at extra charge.
