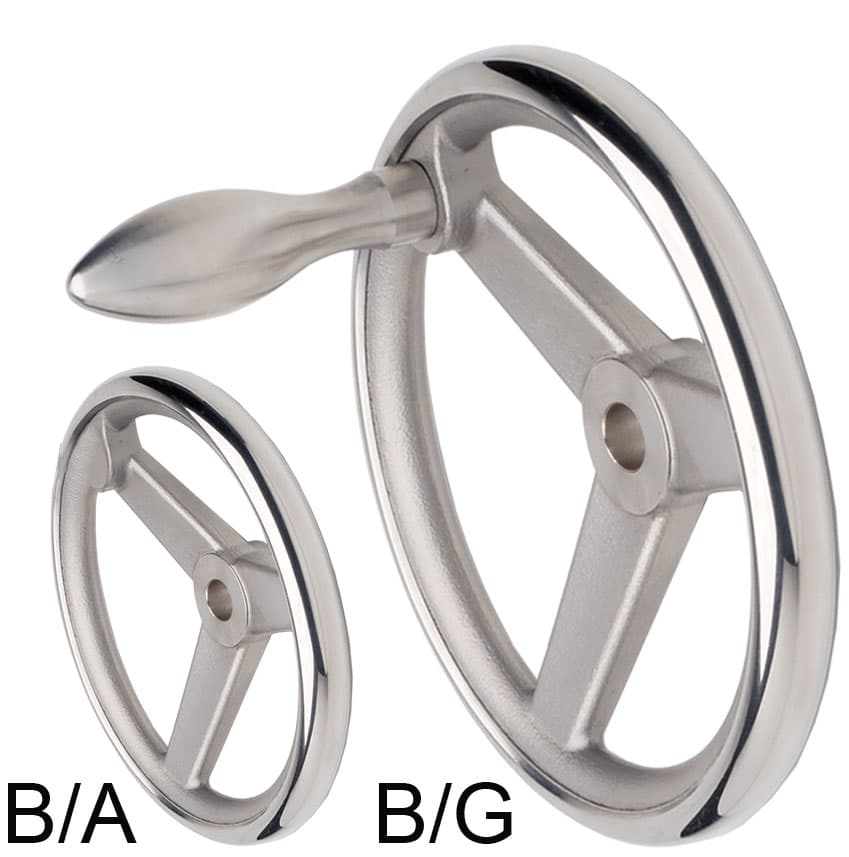

Spoked handwheel DIN 950 stainless steel 1.4401 version B/A without handle diameter 200mm
Manufacturer part no. 67099720
$370.56≈ 321.81 €
Price summary
Listed by MÄDLER at €321.81. Delivered to France, including shipping, VAT and any customs duty, it comes to about €404.17. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €321.81 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €67.36 |
| Total delivered | €404.17 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

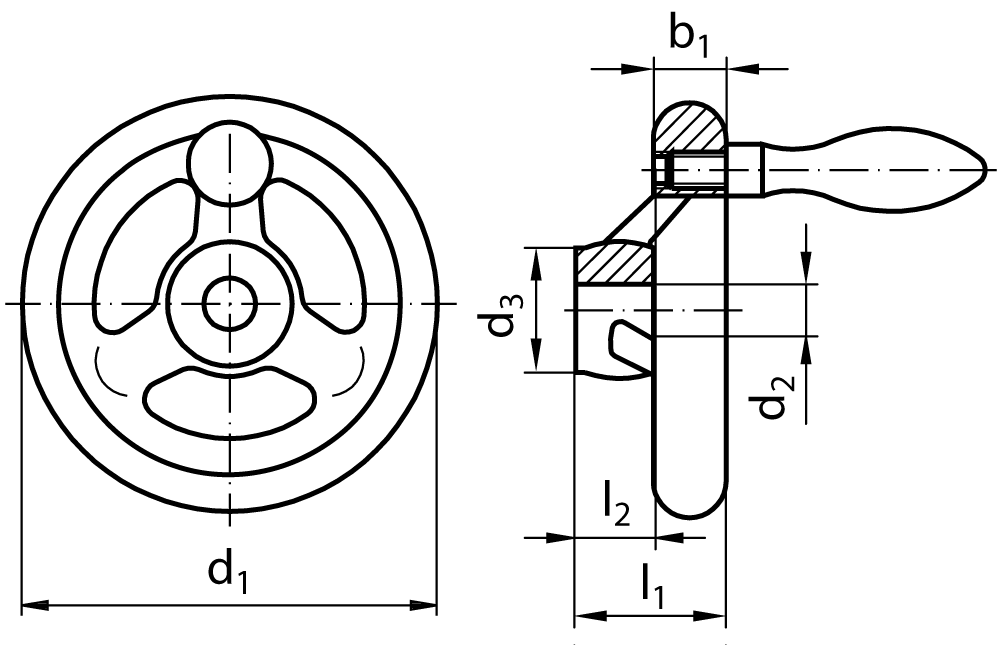

Specifications (automatically extracted)
Mechanical
| Weight | 2.51 kg |
Other characteristics
| Bore diameter | 18 mm |
| Hub diameter | 37 mm |
| Hub length | 24 mm |
| No of spokes | 3 |
| Outer diameter | 200 mm |
| Total length of wheel | 44.5 mm |
| Wheel width | 20 mm |
| Material | Stainless steel (316) |
| Surface | Polished |
| Version | B/A |
Description
Material: Material: Wheel body: Cast stainless steel 1.4401 (AISI 316). Rim turned and polished. At version B/G: Handle stainless steel 1.4404 (AISI 316 L). Version B/A: Without handle and thread. Version B/G: With fixed handle. Acid-resistant A4-quality. Easy to clean. Dimensions almost according to DIN 950. Keyway available at extra charge.
