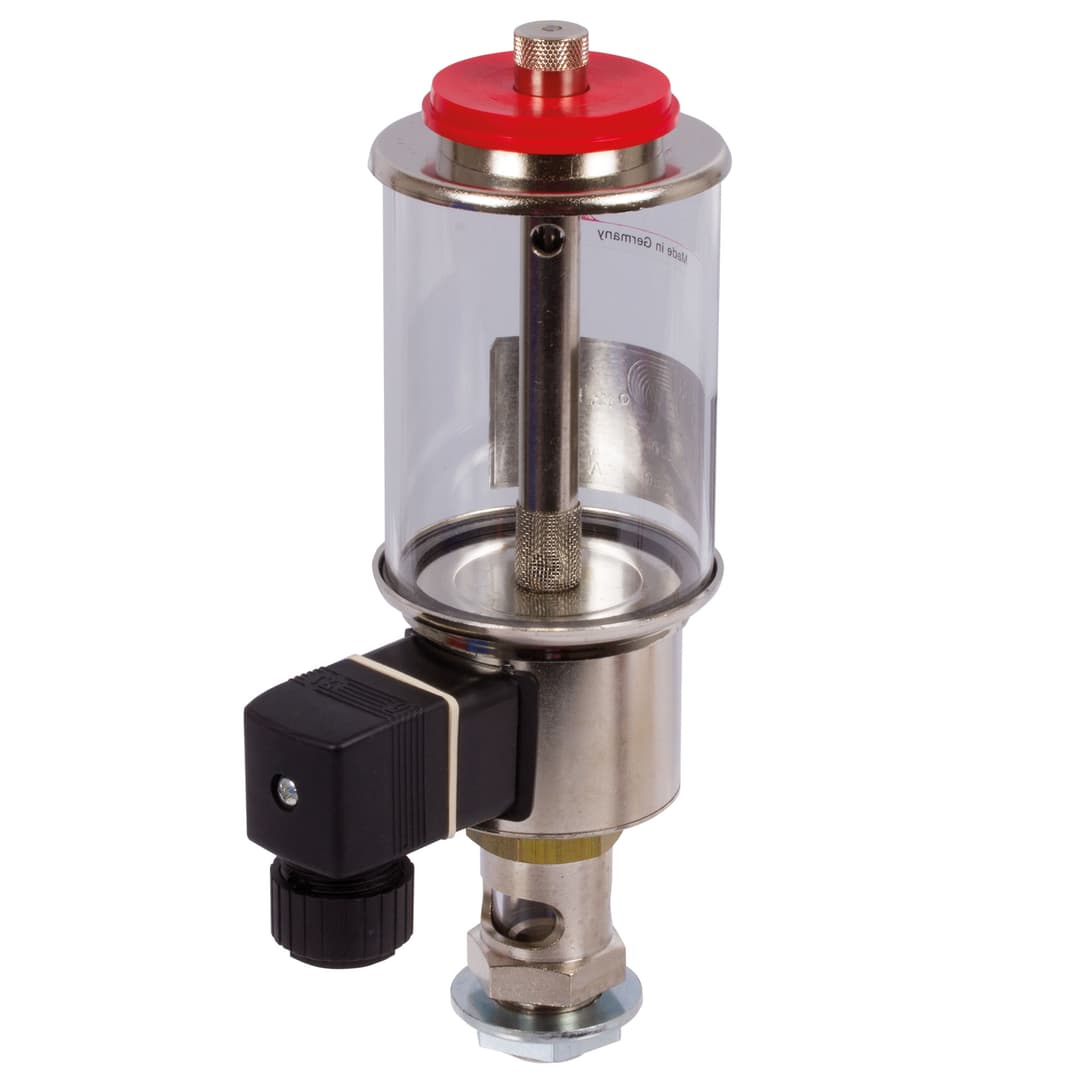

Electric drip-feed oiler ELO 230V 50Hz capacity 1000ml
Manufacturer part no. 68030500
$298.00≈ 258.79 €
Price summary
Listed by MÄDLER at €258.79. Delivered to France, including shipping, VAT and any customs duty, it comes to about €328.55. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorder
Estimated landed cost
| Item | €258.79 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €54.76 |
| Total delivered | €328.55 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Electrical
| Voltage | 230 V |
Mechanical
| Weight | 960 g |
Other characteristics
| Capacity | 1 000 ml |

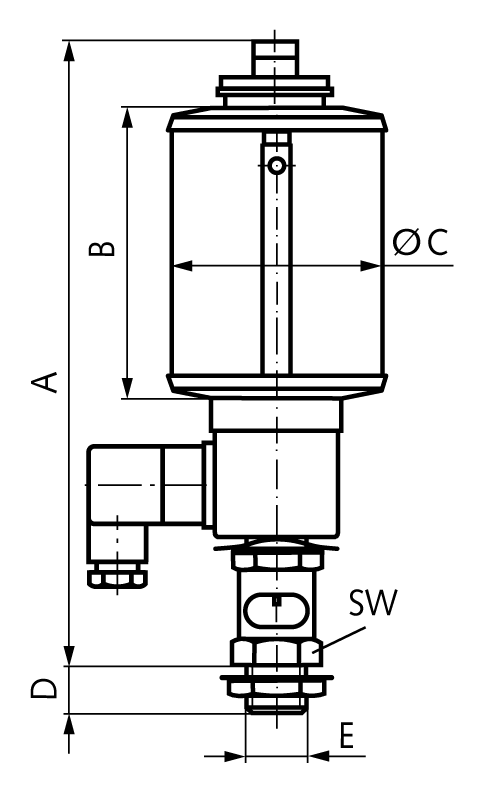

| Diameter of glass cylinder | 100 mm |
| Height after mounting | 235 mm |
| Height of glass cylinder | 120 mm |
| Thread length | 15 mm |
| Wrench size | 27 mm |
| Article | Oiler |
| Material | Brass |
| Spare glass | 680 220 00 |
| Surface | Nickel-plated |
| Thread in inch | G 1/2″ |
| Voltage | 230 V AC |
Description
Material: Brass nickel-plated. Cylinder made from acrylic glass. Voltage: On choice: 230V AC, 50Hz, or 24V DC. Drip rate normal: about 45 drops per 1 ml. Other than the manual drip-feed oiler, which also drips when the machine has stopped, the electric drip-feed oiler only drips as long as the machine is running. When the machine stops, the electric drip-feed oiler is also automatically shut off, as the oiler is controlled via the machine programme. Finest dosing of drops is possible – by turning a knurled nut at the top part of the oiler. Almost all liquids can be dosed drop by drop, provided they are not mixed with solid matters. It is also suited for other media, provided they do not thicken with heat. Attention must be paid to the compatibility with acrylic glass and buna N used as sealing material. (possibly natural glass and vitone sealings on request). Duty cycle: intermittent 20%. Protection class acc. to EN 60529: IP20. Power consumption: 12VA (12W).
Cheaper alternatives
Semantically close products available for less — check the specs match your need.
MÄDLERBackorder

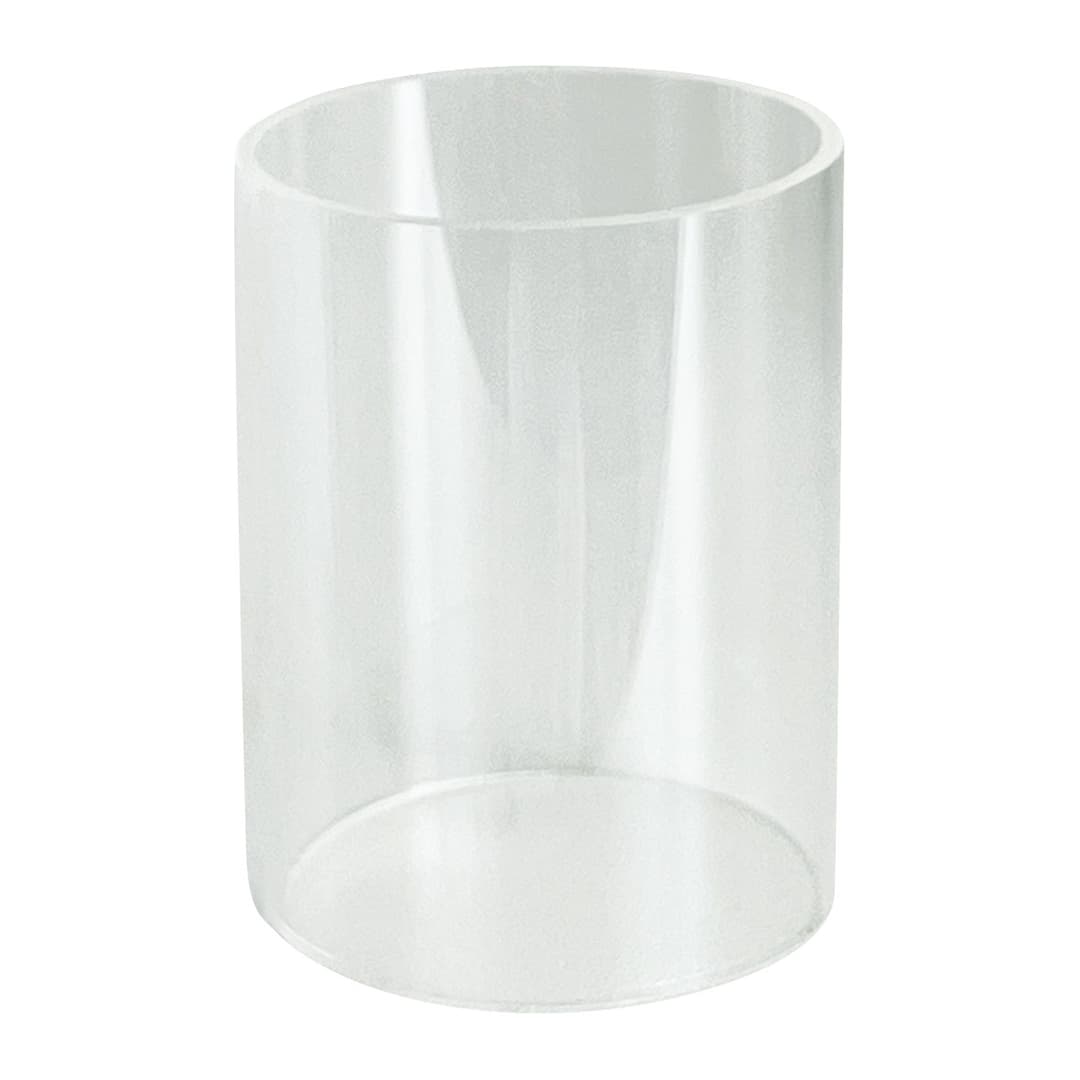

Spare glass for drip feed oiler UNI diameter 25mm x 25mm long
