Hydraulic grease nipple DIN 71412 shape A – H1 M8x1 keg
Manufacturer part no. 68056021
$0.47≈ 0.41 €
Price summary
Listed by MÄDLER at €0.41. Delivered to France, including shipping, VAT and any customs duty, it comes to about €18.49. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €0.41 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.08 |
| Total delivered | €18.49 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

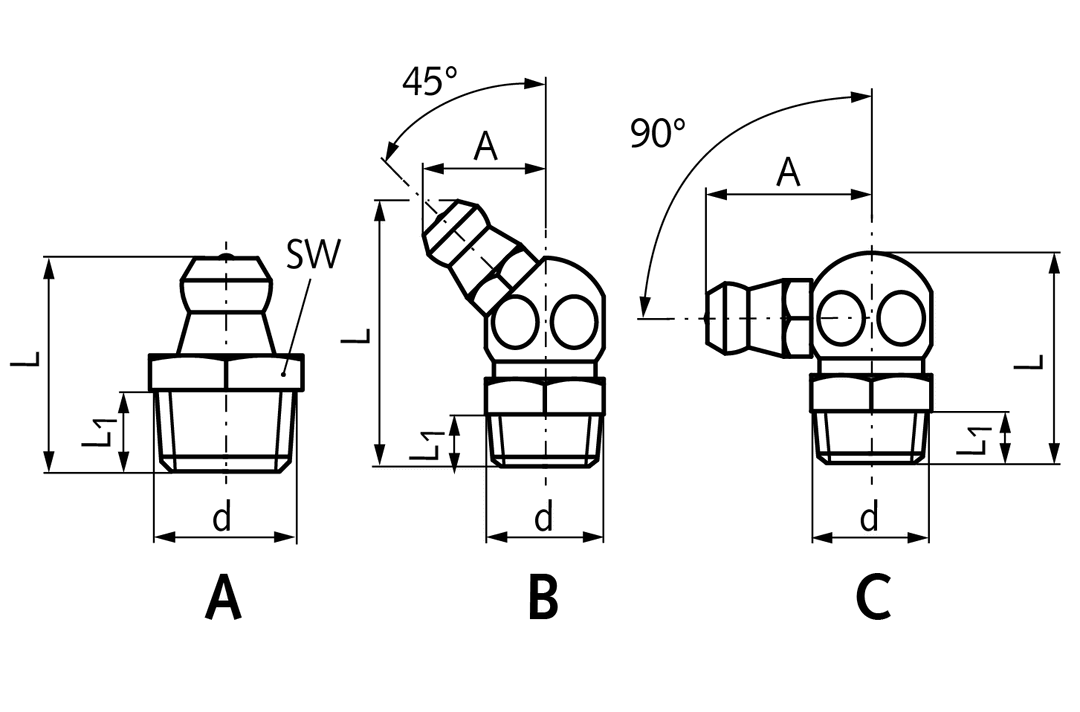

Specifications (automatically extracted)
Mechanical
| Weight | 4 g |
Other characteristics
| Headdiameter | 6.5 mm |
| L | 15.8 mm |
| L1 | 6 mm |
| Sw | 9 mm |
| A | – |
| D | M8 x 1 keg |
| Form | A (H1) |
Description
Material: Galvanized steel, tcone head hardened. The hydraulic cone grease nipple is the standardized connection point to the grease gun and protects the lubrication point from dirt and moisture. With self-sealing, metric tapered external thread to DIN 158. Screwable into regular, cylindrical internal threads or tapered tinternal threads like old standard. Commonly used in machines and vehicles, at bearings, bearing blocks, cardan shafts, drive shafts, linear guides and motion spindles. Mounting Instructions: According to DIN 158-1:1997, only the external thread is conical, while the internal thread is cylindrical. (Metric ISO thread DIN 13). According to the old DIN 158-1:1954, the internal and external threads are conical. In practice, it still happens that the conical internal thread is used according to the old standard.
Cheaper alternatives
Semantically close products available for less — check the specs match your need.
MÄDLERBackorder

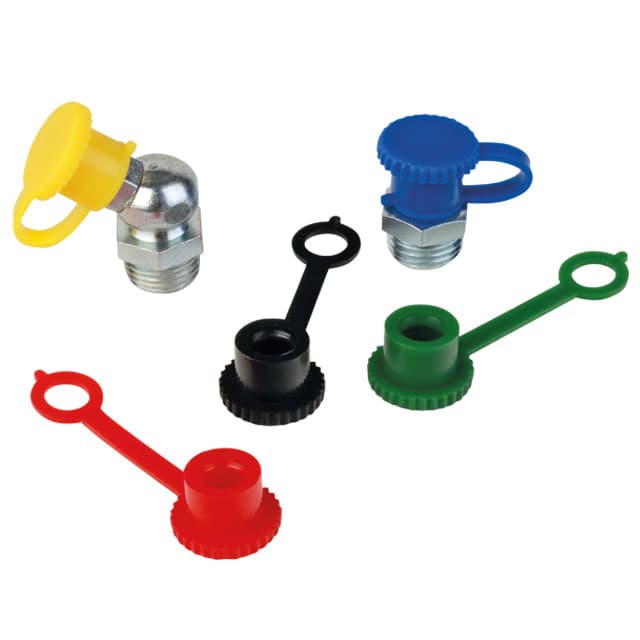

Protective cap with bracket for hydraulic grease nipple DIN 71412 blue
