MÄDLERMÄDLER· X-TRA Adhesives, Sealants and Lubrication

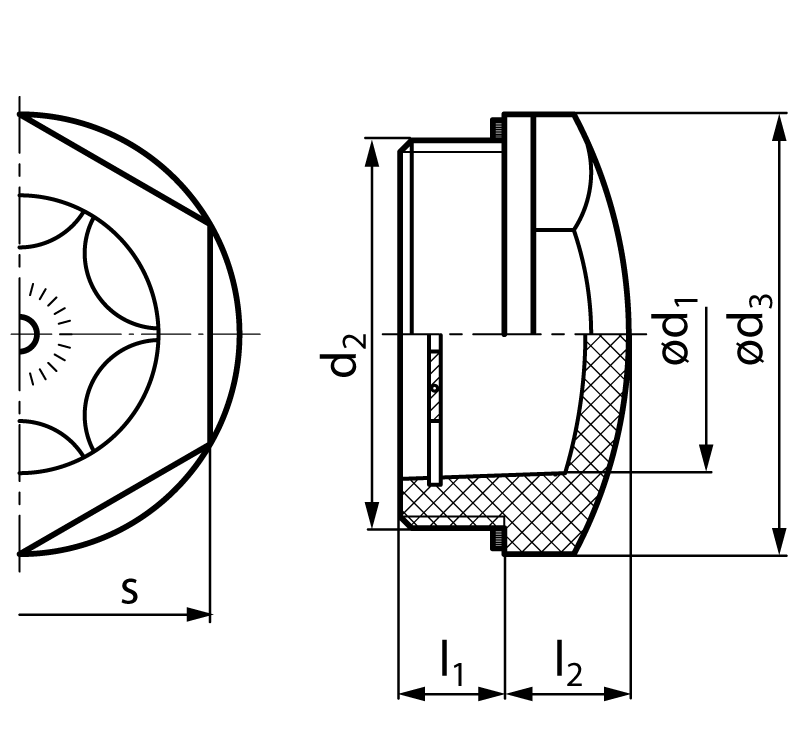

Oil-level sight glass 541 Polyamid PA-T sight window 9mm thread G 1/4″
Manufacturer part no. 68183501
$4.04≈ 3.51 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €3.51 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.70 |
| Total delivered | €22.21 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.8 g |
Other characteristics
| Inner diameter | 9 mm |
| Length after mounting | 6 mm |
| Outer diameter | 18 mm |
| Thread length | 10 mm |
| Wrench size | 15 |
| Material | Polyamide (PA-T) / Aluminum |
| Surface | Anodised |
| Thread size | G 1/4″ |
| Tightening torque | 2 – 3 Nm |
Description
Materials: Housing: Polyamid (PA-T) non-ageing, highly transparent. Reflector: Aluminium, anodized in natural colour. Seal: Rubber NBR. Temperature resistant up to 100ºC. High strength. Resistant against oil, diesel and solvents. Not resistant against alcohol. At mounting wall thickness below 4mm, a nut is required.
