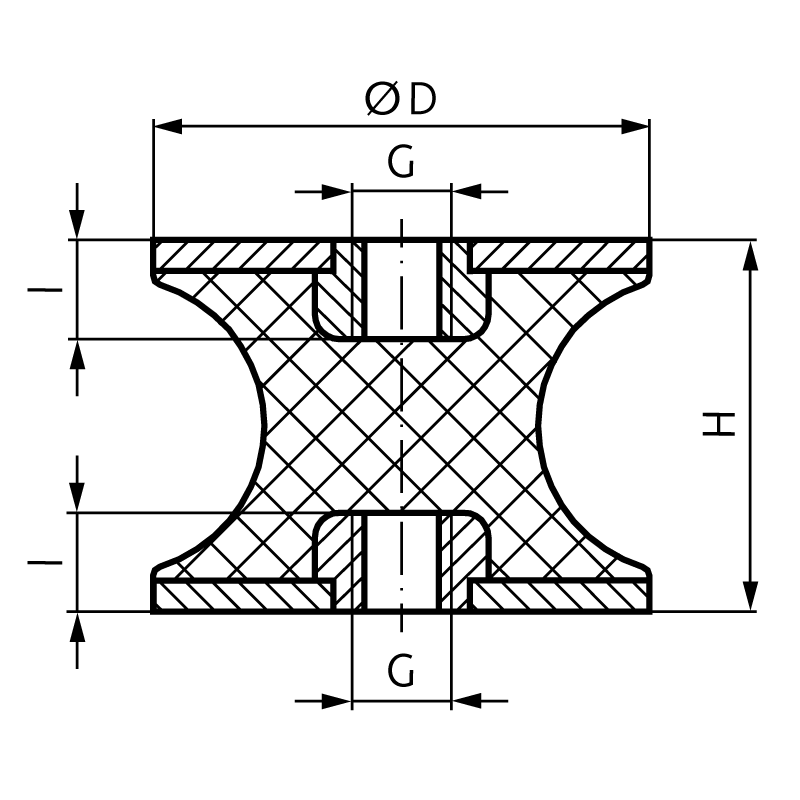

Name: Rubber-metal buffer CT diameter 10mm height 10mm thread M4x4
Brand: MÄDLER
Price: 2.09 USD
Availability: BackOrder

Specifications (automatically extracted)

Mechanical

Weight

2 g

Other characteristics

Height	10 mm
Outer diameter	10 mm
Pressure load	35 N
Shearing load	20 N
Spring rate medium for pressure load	30 N/mm
Spring rate medium for shearing load	4 N/mm
Thread length	4 mm
Material	Natural rubber / Steel
Surface	Zinc-plated
Thread size	M 4 mm

Description

Material: Metal parts: Steel, zinc-plated. Elastomer: Natural rubber hardness 55° Shore. Rubber-Metal buffers are simple, reasonably priced standard components used for elastic mounting. When shearing load occurs their load-bearing capacity is considerably lower than with pressure load. This has to be considered when horizontal mass forces or belt traction occur. The grade of rubber used has perfect physical properties. * Fperm. is the permissible static permanent load, which may be overlaid by a dynamic, alternating load. With shearing load please take care that no tension load in the rubber occurs at all during mounting. To achieve a sufficient fatigue strength provide some compressive pre-stressing. The stated permissible loads are only approximate, guideline values for the static load for "medium" rubber hardness. With particularly high, dynamic, alternating loads or high frequencies, the load figures have to be reduced accordingly. Temperature resistant up to 80°C.
