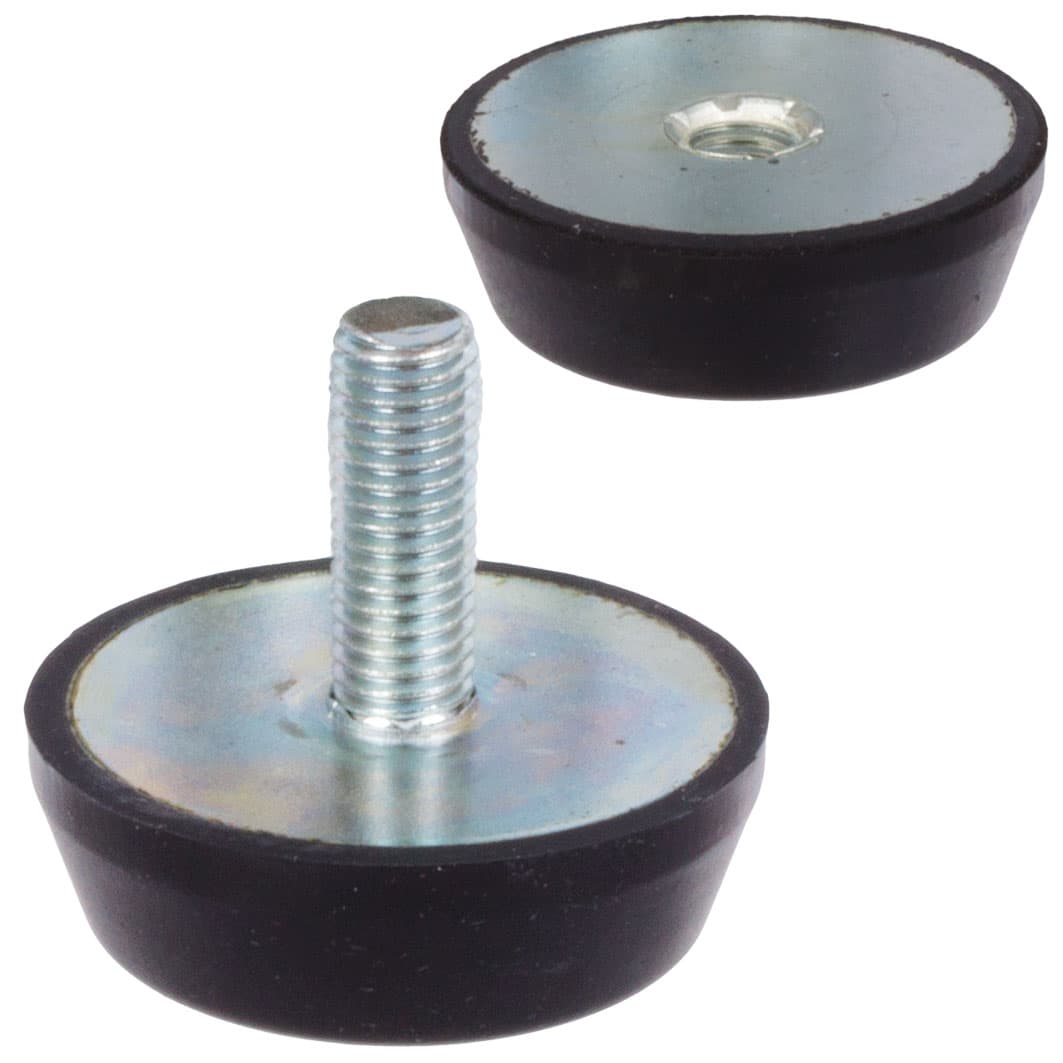

Rubber-metal MGK diameter 25mm thread M 6×18
Manufacturer part no. 68583100
$3.91≈ 3.40 €
Price summary
Listed by MÄDLER at €3.40. Delivered to France, including shipping, VAT and any customs duty, it comes to about €22.08. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €3.40 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.68 |
| Total delivered | €22.08 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 15 g |
Other characteristics
| Height | 17 mm |
| Outer diameter | 25 mm |
| Pressure load | 500 N |
| Spring rate medium for pressure load | 119 N/mm |
| Material | Natural rubber / Steel |
| Surface | Zinc-plated |
| Thread size x length | M 6 x 18 Outer thread mm |
Description
Material: Metal parts: Steel, zinc-plated. Elastomer: Natural rubber hardness 55° Shore. * Fperm. is the permissible static permanent load, which may be overlaid by a dynamic, alternating load. With shearing load please take care that no tension load in the rubber occurs at all during mounting. To achieve a sufficient fatigue strength provide some compressive pre-stressing. The stated permissible loads are only approximate, guideline values for the static load for "medium" rubber hardness. With particularly high, dynamic, alternating loads or high frequencies, the load figures have to be reduced accordingly. Temperature resistant up to 80°C.
