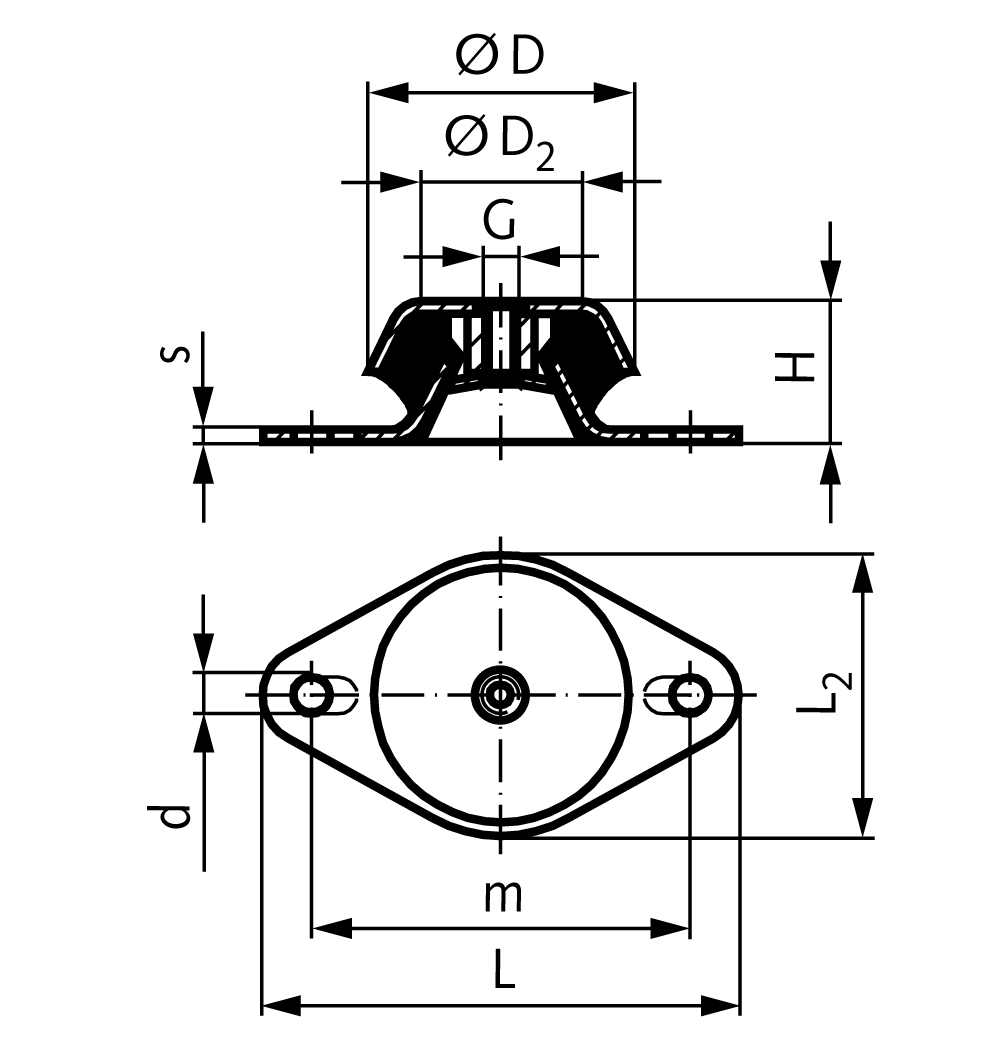

Machine mount failsafe diameter 106mm height 38mm thread M12 oval flange
Manufacturer part no. 68596000
$33.60≈ 29.08 €
Price summary
Listed by MÄDLER at €29.08. Delivered to France, including shipping, VAT and any customs duty, it comes to about €52.90. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €29.08 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.82 |
| Total delivered | €52.90 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 660 g |
Other characteristics
| Height | 38 mm |
| Length | 172 mm |
| Outer diameter | 106 mm |
| Pressure load | 10 250 N |
| Spring range 20 at fzul | 2.5 mm |
| Spring rate medium for pressure load | 4 100 N/mm |
| Inner thread size | M 12 mm |
| Material | Natural rubber / Steel |
| Surface | Blank |
Description
Material: Elastomer: Natural rubber 62° +/-5° Shore. Metal parts: Steel, strength 5.6, zinc-plated. Failsafe machine mounts can be universally used as elastic mounts for all kind of machines. Especially if tensile forces can be expected, these failsafe mounts are the perfect choice of damping element. The stated values are guideline values for the static load at durometer of 62º Shore A (medium), +/- 20%. 1) Spring Load. 2) Permissable permanent static load. No damping for tensile load.
