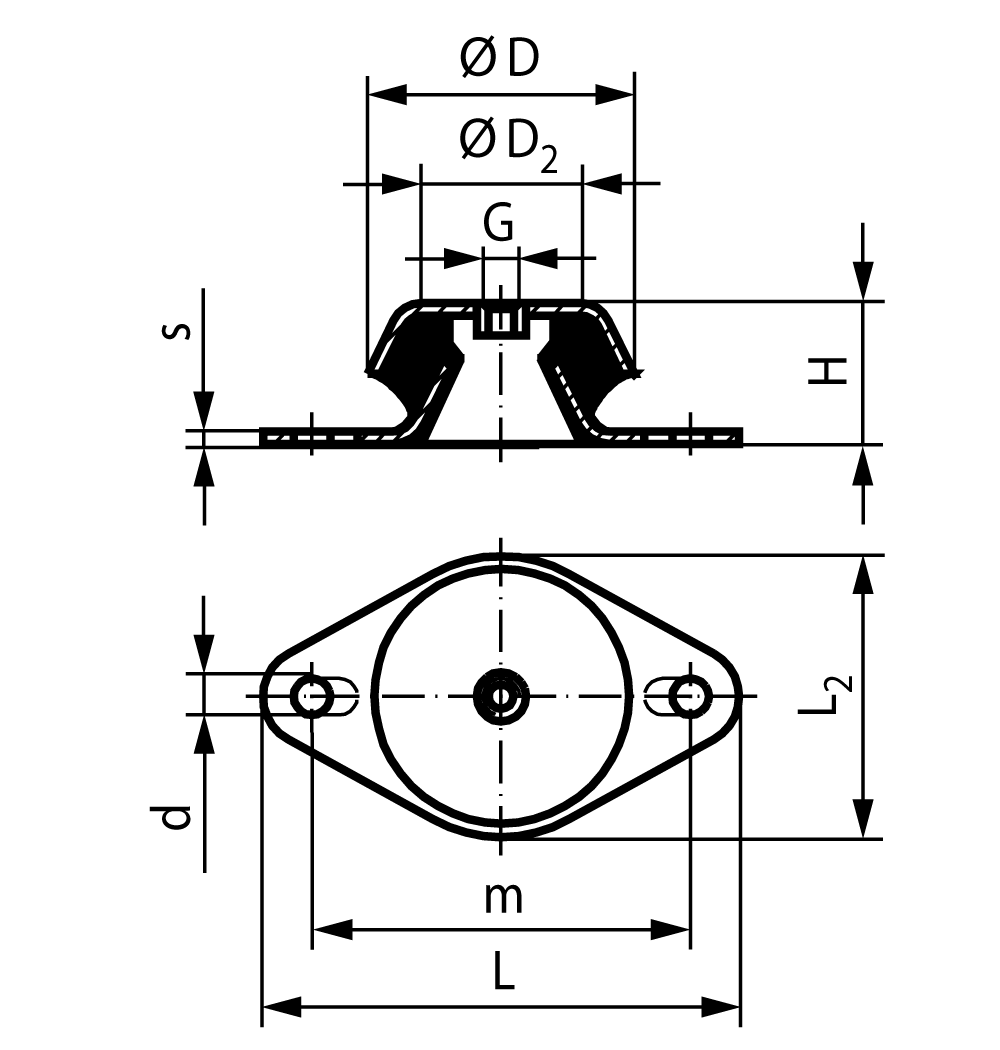

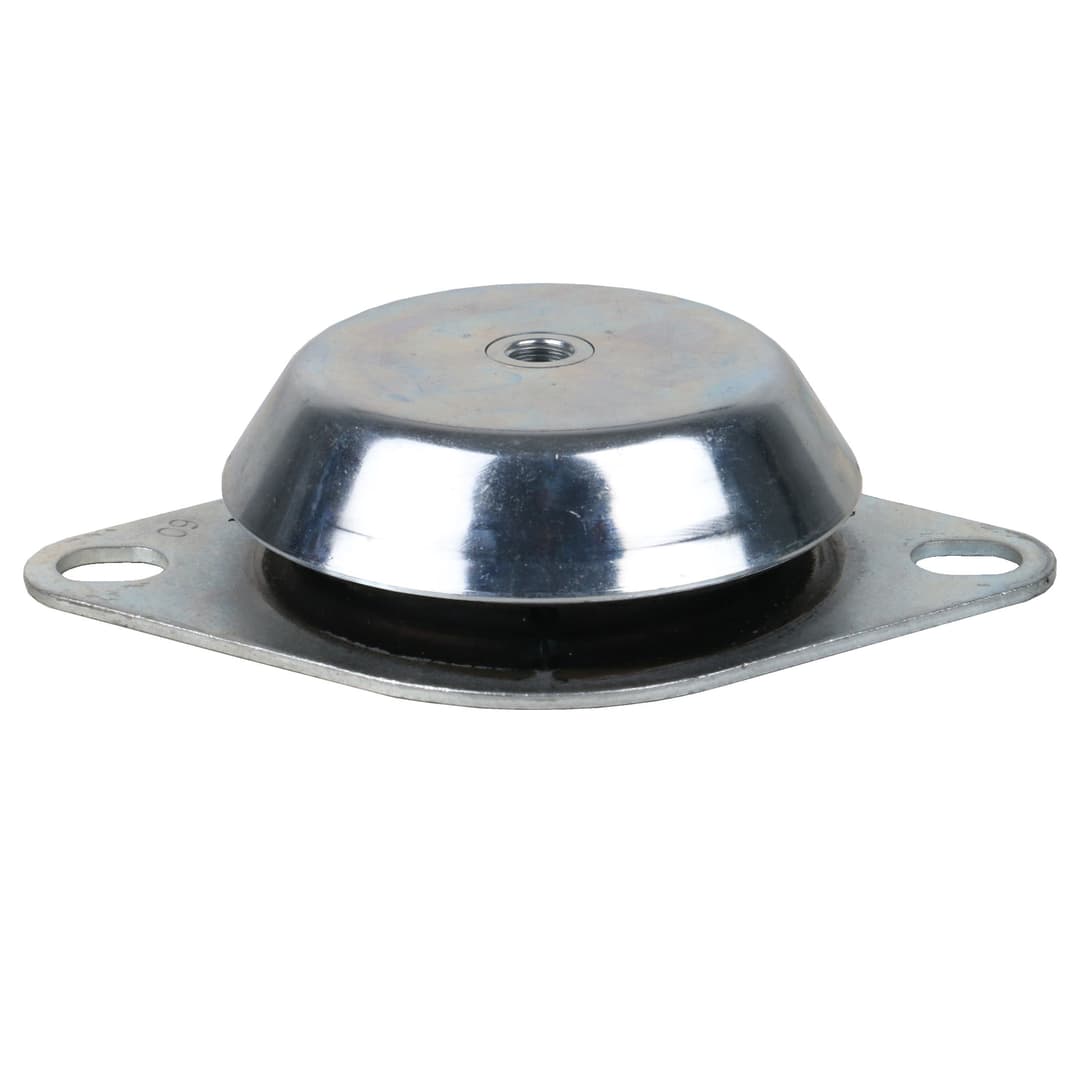

Machine mount not failsafe diameter 121mm height 42mm thread M16 oval flange
Manufacturer part no. 68597001
$36.58≈ 31.77 €
Price summary
Listed by MÄDLER at €31.77. Delivered to France, including shipping, VAT and any customs duty, it comes to about €56.12. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €31.77 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.35 |
| Total delivered | €56.12 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 980 g |
Other characteristics
| Height | 42 mm |
| Length | 188 mm |
| Outer diameter | 121 mm |
| Pressure load | 10 200 N |
| Spring range 20 at fzul | 3 mm |
| Spring rate medium for pressure load | 3 400 N/mm |
| Inner thread size | M 16 mm |
| Material | Natural rubber / Steel |
| Surface | Blank |
Description
Material: Elastomer: Natural rubber 62° +/-5° Shore. Metal parts: Steel, strength 5.6, zinc-plated. Elastic mounts for machines. Not failsafe: For applications without tensile forces. The stated values are guideline values for the static load at durometer of 62º Shore A (medium), +/- 20%. 1) Spring Load. 2) Permissable permanent static load.
