MÄDLERMÄDLER· Machine Mounts, Rubber-Buffers, Dampers

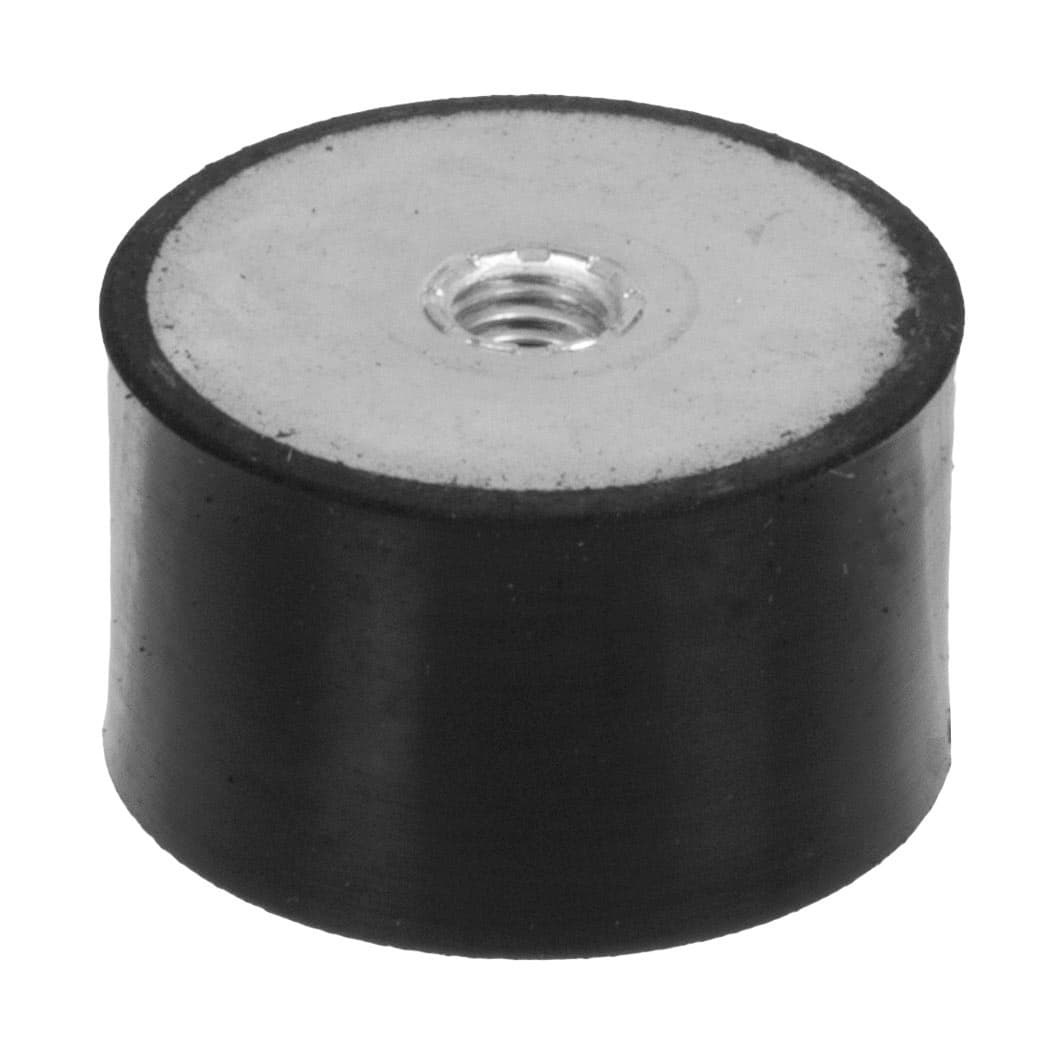

Rubber-metal MGE diameter 40mm height 20mm inner thread M8 stainless steel 1.4301
Manufacturer part no. 68910401
$11.77≈ 10.22 €
In stock — 20 unitslead time 14 d
Estimated landed cost
| Item | €10.22 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €5.04 |
| Total delivered | €30.26 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 44 g |
Other characteristics
| Height | 20 mm |
| Outer diameter | 40 mm |
| Pressure load | 650 N |
| Spring rate medium | 342 N/mm |
| Thread length | 8 mm |
| Material | Natural rubber / Stainless steel |
| Surface | Blank |
| Thread size | M 8 mm |
Description
Material: Elastomer: Natural rubber, hardness 55º Shore. Metal parts: Stainless steel 1.4301 (AISI 304). One side with internal thread. Standard components for elastic mounting. The grade of rubber used has perfect physical properties. Temperature resistant up to 80ºC. Other sizes, Shore hardnesses or elastomer types on request.
