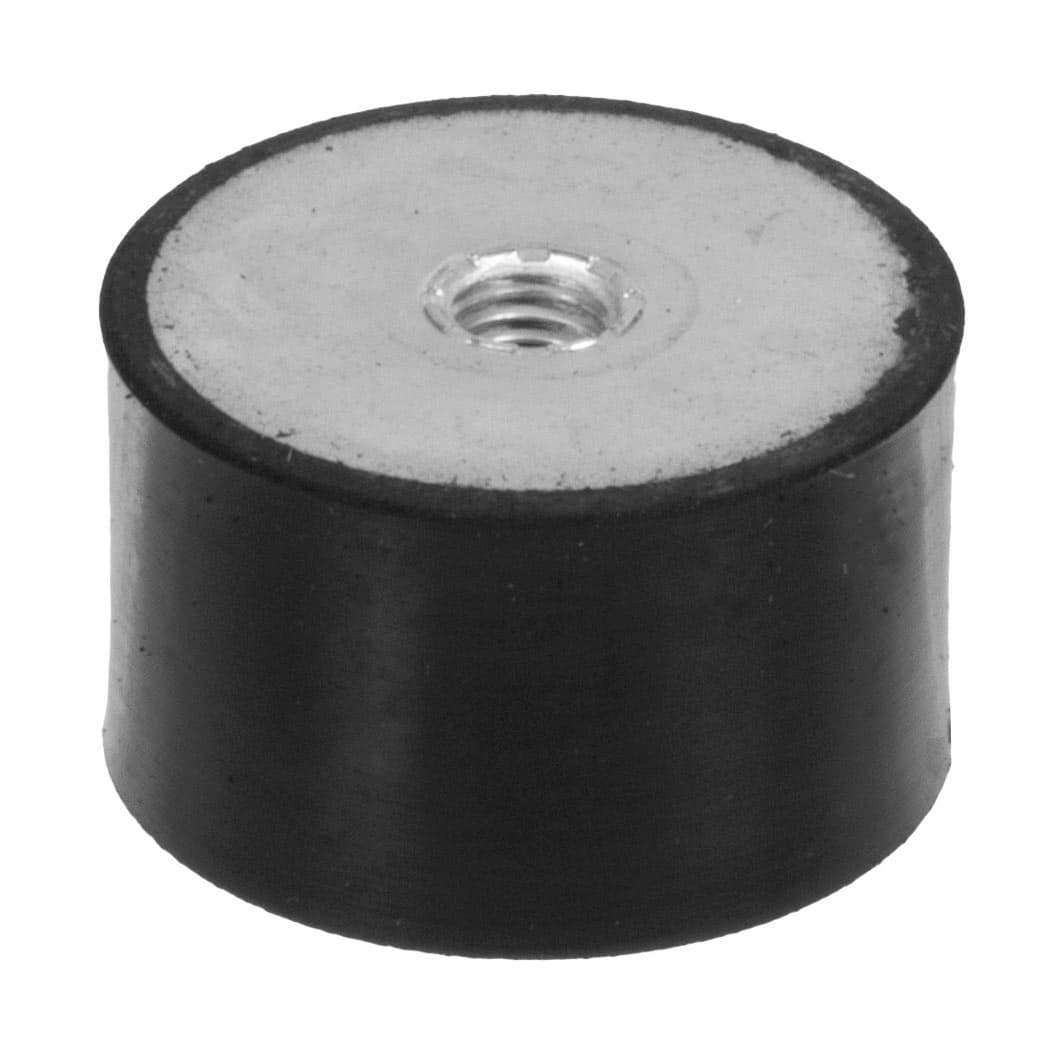

Rubber-metal buffer MGI with internal thread on both sides diameter 75mm height 40mm thread M12 x 12mm stainless steel 1.4301
Manufacturer part no. 68947500
$31.04≈ 27.65 €
Price summary
Listed by MÄDLER at €27.65. Delivered to France, including shipping, VAT and any customs duty, it comes to about €51.18. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €27.65 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €8.53 |
| Total delivered | €51.18 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 366 g |
Other characteristics
| Height | 40 mm |
| Outer diameter | 75 mm |
| Pressure load | 2 300 N |
| Shearing load | 850 N |
| Spring rate medium for pressure load | 720 N/mm |
| Spring rate medium for shearing load | 110 N/mm |
| Thread length | 12 mm |
| Material | Natural rubber / Stainless steel |
| Surface | Blank |
| Thread size | M 12 mm |
Description
Material: Elastomer: Natural rubber hardness 55° Shore. Metal parts: Stainless steel 1.4301 (AISI 304). Both sides with internal thread. Standard components for elastic mounting. The grade of rubber used has perfect physical properties. Temperature resistant up to 80ºC. Other sizes, Shore hardnesses or elastomer types on request. * Fperm. is the permissible static permanent load, which may be overlaid by a dynamic, alternating load. With shearing load please take care that no tension load in the rubber occurs at all during mounting. To achieve a sufficient fatigue strength provide some compressive prestressing.
