MÄDLERMÄDLER· Machine Mounts, Rubber-Buffers, Dampers

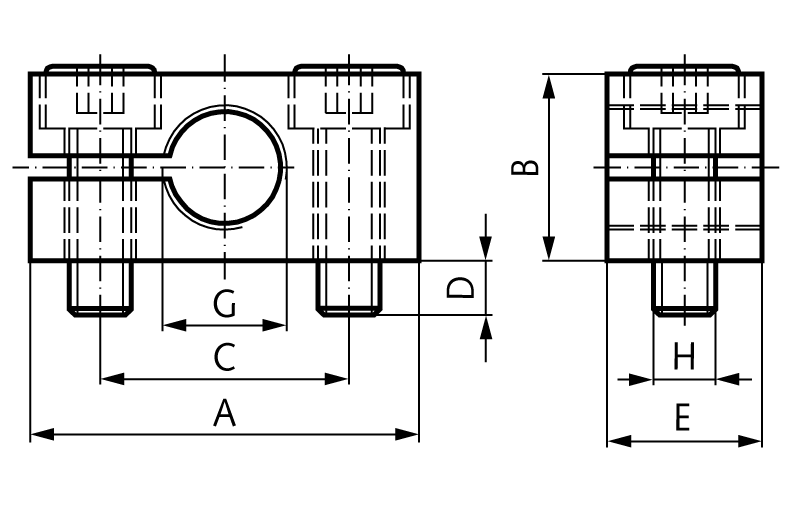

Clamp mount for miniature shock absorber thread M25x1,5
Manufacturer part no. 69060002
$81.00≈ 70.34 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €70.34 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €17.07 |
| Total delivered | €102.41 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 185 g |
Other characteristics
| Height | 32 mm |
| Length | 46 mm |
| Overhang of screws | 6 mm |
| Tightening torque | 11 Nm |
| Width | 25 mm |
| For antishock absorber part no | 690 600 00/690 900 00 |
| Material | Steel |
| Surface | Black oxide finish |
| Thread size | M 25×1.5 |
Description
Material: Steel, black oxide finish. When using the clamp mount, no lock nut is required. Fine adjustment can be carried out before the clamping. 2 socket-head screws DIN 912 are included with the clamp mount.
