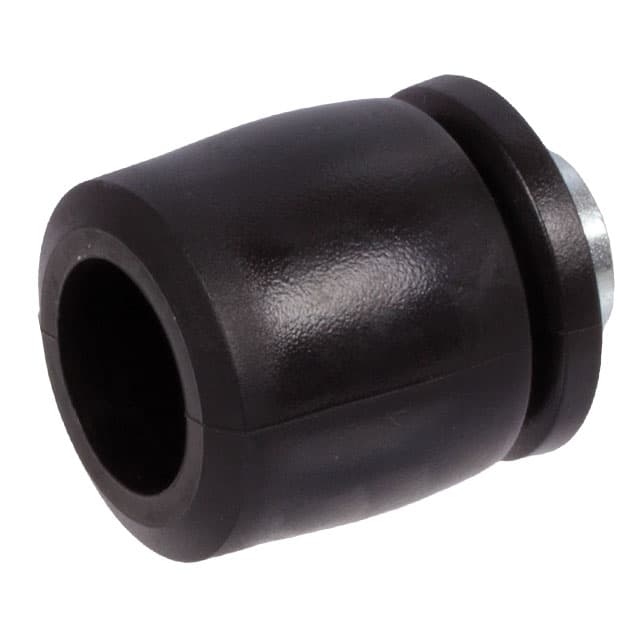

Profile damper TS 84-43 diameter 84mm thread M16
Manufacturer part no. 69118400
$211.50≈ 183.67 €
Price summary
Listed by MÄDLER at €183.67. Delivered to France, including shipping, VAT and any customs duty, it comes to about €238.40. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 56 d
Estimated landed cost
| Item | €183.67 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €39.73 |
| Total delivered | €238.40 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 402 g |
Other characteristics
| Energy usage at continuous use per stroke | 475 Nm |
| Energy usage with emergency stop per stroke | 635 Nm |

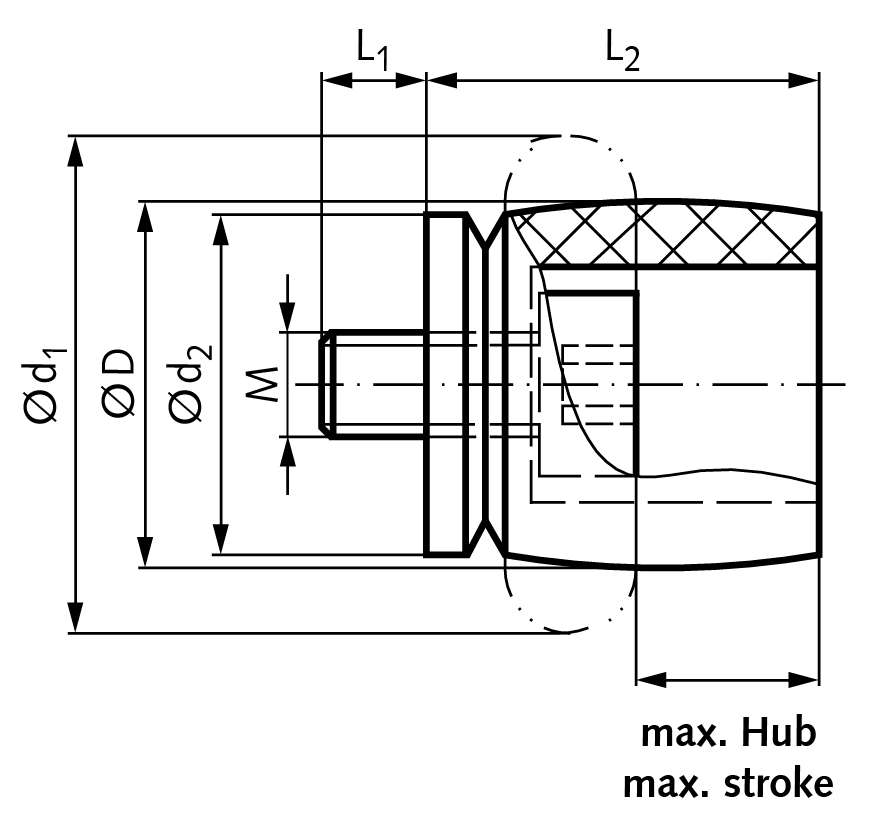

| Length of damper | 85 mm |
| Max stroke | 43 mm |
| Outer diameter | 84 mm |
| Thread length | 16 mm |
| Material | Co-Polyester elastomer |
| Surface | Blank |
| Thread size | M 16 |
| Type | 84-43 |
Description
Material: Co-Polyester Elastomer. The profile dampers TS are a maintenance-free, self-contained damping elements. Due to the almost linear damping characteristics it provides very smooth energy absorption along with minimum reaction loads on the machine. The excellent temperature characteristic of the material provides consistent damping performance over a temperature range of -40°C to +90°C. The low installed weight, the economic price and the long operating life of up to 1 million cycles makes this an attractive alternative to hydraulic end position damping, if the moving mass does not need to stop in an exact datum position and it is not necessary to absorb 100% of the incoming energy. The life cycle is up to 20 times longer than for urethene dampers and up to ten times longer than for rubber springs. Environment: Resistant to oil, grease seawater and to microbe or chemical attack. Excellent UV and ozone resistance. Material does not absorb water or swell. Dynamic Force Range: 533 N to 23,500 N. Temperature Range: -40°C to +90°C. Energy Absorption: 35% to 64%. Material Hardness: Shore 40D. Mounting: in any position. Impact Velocity range: up to max. 5 m/s. Mounting Bolt Torque: M4: 2 Nm. M5: 4 Nm. M6: 6 Nm. M12: 50 Nm. M16: 120 Nm. On request: special strokes, characteristics, spring rates, sizes and materials. Download Energy-Stroke Characteristics 1.5 MB 1) Max. energy capacity per cycle for continuous use. 2) For a single cycle, e.g. an emergency stop.
